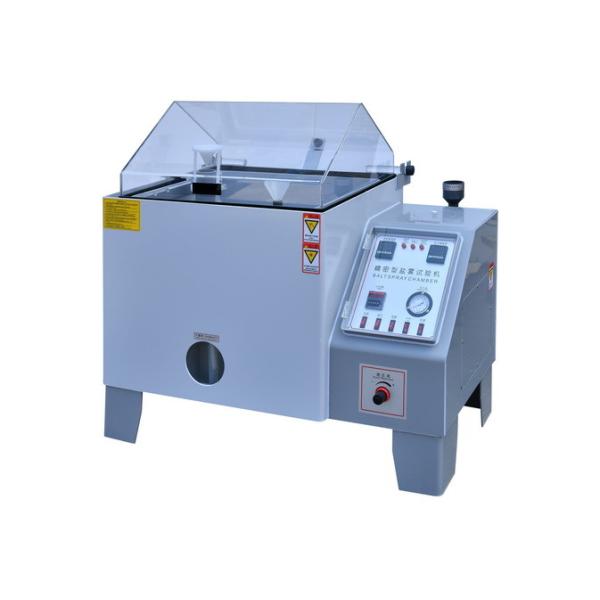

Salt Spray Test Chamber ZK-60A Support CASS and NSS Corrosion Testing
Salt Spray Test Chamber ZK-60A Support CASS and NSS Corrosion Testing
Specifications
Brand Name :
iqualitrol
Model Number :
ZK-60A
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Model :
Salt Spray Test Chamber ZK-60A
Material :
Sturdily P.V.C Sheet
Heating :
from five directions to ensure the temperature is uniformity distributed
Spray Nozzle :
spray the salt water with considerable speed, then falls on the surface of samples
Description

Salt Spray Test Chamber ZK-60A

Brief Introduction:

Salt Spray Test Chambers offer the most realistic and dependable corrosion test, widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronics, car industry, offshore and defense industries.

ZK-120A or higher volume models conform Standard Practice for Operating Salt Spray (Fog) Apparatus ASTM B117.

Technical Specifications:

Model ZK-60A ZK-90A ZK-120A ZK-160A ZK-200A

Interior

dimensions

(mm)

 W 600 900 1200 1600 2000
D 450 600 850 1000 1200
H 400 500 500 900 600

Exterior dimensions

(mm)

 W 1130 1460 2200 2600 3000
D 630 910 1200 1450 1650
H 1070 1280 1450 1550 1600
Chamber Volume 108 L 270 L 480 L 1440 L 1440 L
Solution Tank 15L 25 L 40 L
Power Supply AC 220V/50HZ/1Ph AC 380V/50HZ/3Ph
Ambient temp. & humid. range +5℃ ~ +35℃ / <85%RH
Testing Temperature NSS ACSS 35℃±1℃ / CASS 50℃±1℃
Air Temperature NSS ACSS 47℃±1℃ /CASS 63℃±1℃
Solution Consistence NaCl 5%
PH Value NASS ACSS:6.5~7.2 / CASS:3.0~3.2
Temperature fluctuation ≦±0.5℃
Temperature uniformity ≦2. 0℃
Temperature deviation ≦±2.0℃
Spray quantum 1.0~2.0(ml/80cm2/h)
Chamber Material polyvinyl chloride (PVC)
Heater Corrosion-resistant titanium tube
Temperature sensor Platinum Resistance (PT-100)
Safety device Over-temperature protection, leakage protection
Note:

1. The above specifications are for reference only, the actual specifications for the main quotation.

2. Custom made is available according to customers’ special requirements

Main Features:
1, Chamber material is made of P.V.C Sheet, sturdily and will not be out of shape.

2, Test chamber is heated from five directions to ensure the temperature is uniformity distributed.

3, Spray nozzle is specially made, enable to spray the salt water with considerable speed, then falls on the surface of samples.

4, Hot and moist air keeps the humidity in the test chamber conforms testing request.

5, High precision P.I.D. temperature controller limits the temperature difference within the range of ±0.1℃.
