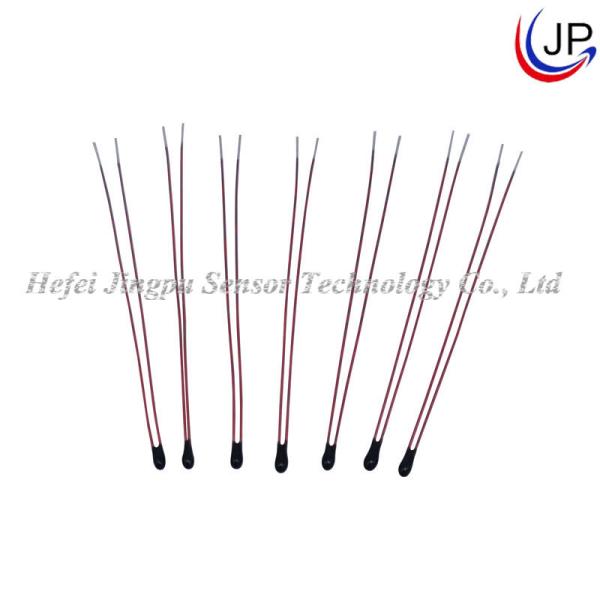

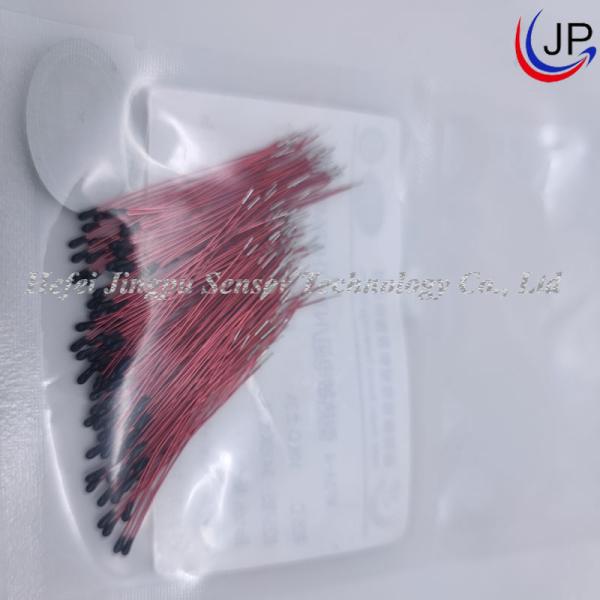

10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment
Specifications
Brand Name :
JP Sensor
Model Number :
MF5A-4
Certification :
ISO13485, ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
10000PCS
Price :
0.1-0.5USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000k per month
Delivery Time :
2-4weeks
Packaging Details :
Carton Package
Resistance :
R25℃=10KΩ±3%
Beta Value :
B25/85=3435K±3%
Encapsulation :
Epoxy Resin
Operating Temperature Range :
~20-100℃
Response time :
≤20s （in still air）
Wire :
CP enameled wire OD0.3
Description

10K 3435K Enameled Wire NTC Thermistor For Beauty Equipment

Product Description:

An enameled NTC (Negative Temperature Coefficient) thermistor is a type of temperature sensor that is coated with enamel insulation. It is commonly used for temperature measurement and control in various electronic devices and systems.

The NTC thermistor is made of a semiconductor material that exhibits a decrease in electrical resistance as the temperature increases. This characteristic allows it to accurately measure and respond to changes in temperature.

The enamel coating serves as electrical insulation, protecting the thermistor from external influences and providing mechanical stability. It also helps in maintaining the accuracy and reliability of temperature measurements.

Enameled NTC thermistors are available in various sizes and shapes, and they can be easily integrated into electronic circuits. They are commonly used in applications such as temperature sensors in automotive systems, household appliances, industrial equipment, and medical devices.

Overall, enameled NTC thermistors provide a compact, reliable, and cost-effective solution for temperature sensing and control in a wide range of electronic applications.

Features:

In accordance with RoHS standard

R25℃=10KΩ±3%

B25/85=3435K±3%

Response time: ≤20s (in still air)

Dissipation factor: Approx 2.0mW/℃

Max Power: Approx 60mW

Withstand voltage: AC300V 1mA 1s in still air-no break down

Operating temperature range: -20~100℃

Encapsulation: Epoxy resin

Lead wire: CP enameled wire OD0.3

Application:

automotive systems, household appliances, industrial equipment, and medical devices

Structure and Dimensions:

10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment

Specification:

10K 3435K Red Enameled Wire NTC Thermistor For Beauty Equipment

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Approx.2.5 Approx.20 -40-125 8-36
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
