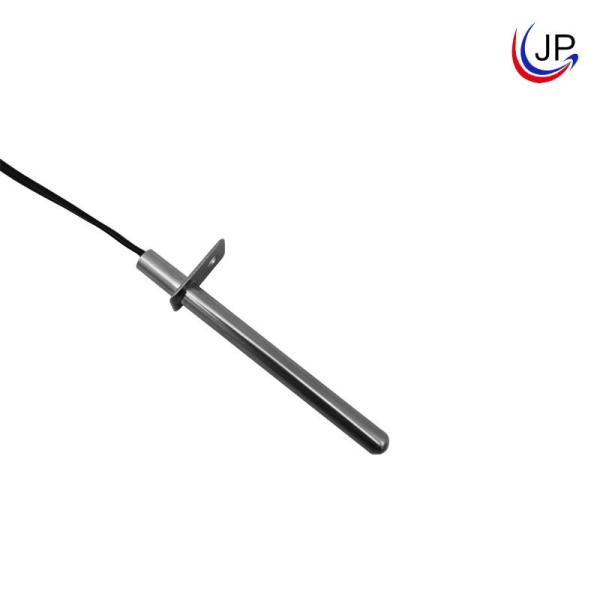

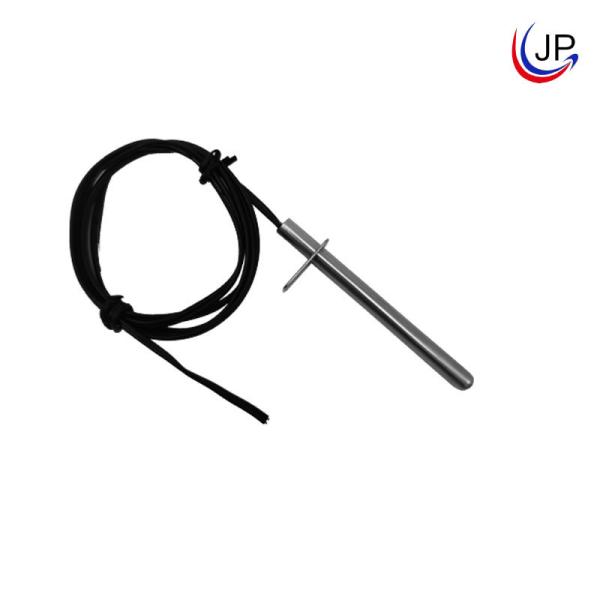

Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type
Specifications
Brand Name :
JP SENSOR
Model Number :
MFP-4A
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Carton Packing
Encapsulation :
Epoxy resin
Cable :
Insulated wire ( wire、PVC wire、XLPE insulated wire)
Chip :
NTC Chip
Resistance :
Custom
B Value :
Custom
Operating temperature range :
-20℃~105℃(PVC)
Description

Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type

Brief Introduction (Product Description):

The flange-type temperature probe applies to home appliances. It consists of the insulated wire ( wire, PVC wire, XLPE insulated wire), NTC chip, epoxy resin, and waterproof stainless steel 304 shells. Resistance and Beta Value can be customized according to the customers’ requirements.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -20℃~105℃

Good stability and reliability

Easy to install and operate as the sealing can be done according to the environment

Accurate testing can reflect temperature changes precisely.

Application:

Household appliances: Induction cooker, microwave oven, electric kettle, etc.

Structure and Dimensions:(unit: mm)

Stainless Steel NTC Temperature Sensor Epoxy Resin Flange Type

Electrical Specification:

Rec. at 25℃(kΩ) Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
