B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators
B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators
B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators
B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators
B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators
B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators
Specifications
Brand Name :
JP SENSOR
Model Number :
MFP
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Standard Packing
Resistance :
R25℃=1.5KΩ
B Value :
B25/85=3835K
Probe :
Magnesium-aluminum alloy
Operating temperature range :
-40℃~105℃
Application :
AC in vehicles and evaporator
Cable :
PVC 24awg 105℃
Customization :
Available
Chip :
NTC Chip
Description

B25/85 3835K NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators

Product Description:

This product is mainly used for the temperature measurement of AC in vehicles and evaporators, of which the resistance is generally R25℃=1.5KΩ, B25/85=3835K (Can be customized), its probe is Magnesium-aluminum alloy, and it can add cable extension connector if customer requires.

Features:

Comply with RoHS standard

Operating temperature range: -40℃~105℃

Easy to install

Stable

Application:

AC in vehicles and evaporator

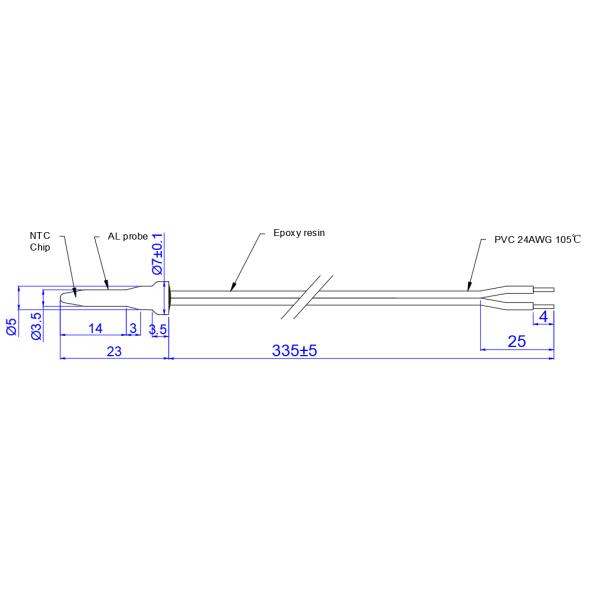

Structure and Dimensions:(unit: mm)

B25/85 NTC Temperature Sensor Epoxy Resin NTC Chip For AC Of Vehicle And Evaporators

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 Max.3.0 / -40℃~125℃ /
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
