32.51k NTC Temperature Sensor ABS Probe For Refrigerators
32.51k NTC Temperature Sensor ABS Probe For Refrigerators
32.51k NTC Temperature Sensor ABS Probe For Refrigerators
32.51k NTC Temperature Sensor ABS Probe For Refrigerators
Specifications
Brand Name :
JINGPU SENSOR
Model Number :
MFT
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
500 Pieces
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2-7days
Packaging Details :
Standard Packaging
Resistance :
5KΩ, 10kΩ
R0℃ :
32.51kΩ±2%
B25 / 50 :
3950k ±1%
Application :
Refrigerator
Operation temperature range :
-40℃~80℃
Wire :
UL2651 24AWG wire
Description

32.51k NTC Temperature Sensor ABS Probe For Refrigerators

Brief Introduction:

This product is an ABS probe NTC temperature sensor for refrigerator, of which the probe is an ABSΦ7*25mm shell widely used in the market, the wire is UL2651 24AWG wire, the parameters are generally 5KΩ, 10kΩ, and the control temperature is about 0 ℃.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Accurate low-temperature control

R0℃=32.51kΩ±2%

B25/50=3950k ±1%

Application:

Refrigerator

Structure and Dimensions(mm):

32.51k NTC Temperature Sensor ABS Probe For Refrigerators

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -40℃~125℃ 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Product Images:

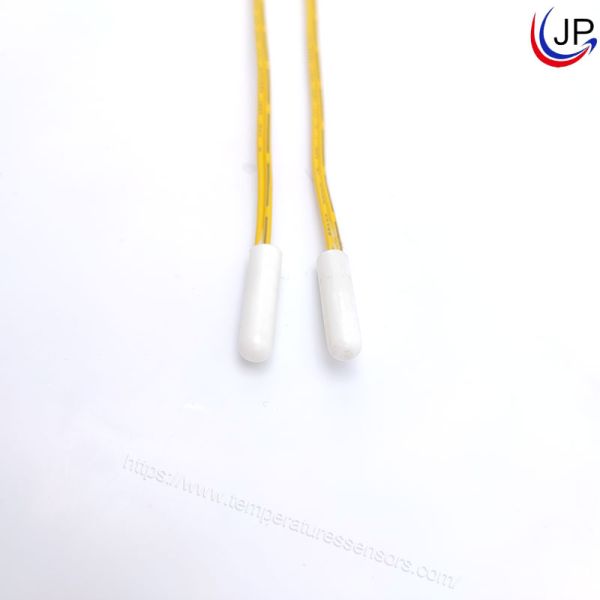

32.51k NTC Temperature Sensor ABS Probe For Refrigerators

32.51k NTC Temperature Sensor ABS Probe For Refrigerators

32.51k NTC Temperature Sensor ABS Probe For Refrigerators

FAQ:
1. What is your MOQ?
Different type of our product has different MOQs, but we will provide you with the best MOQ according to your specific order.

2. Could you please send me free samples?
Of course, samples are available and free except for the express fee. Express like DHL, FedEx, SF express, UPS, EMS, etc are available. You can provide your express account or ask your courier to pick up the product you ordered.

3. What is your delivery time?
The delivery time is about 2-7days after receipt of payment. (Different types of products have different crafts, the exact time shall be consulted in advance.)

4. What is the payment terms?
100% in advance, T/T. (Negotiable)

5. Can you accept OEM&ODM orders?
OEM/ODM is available from us. We accept all types of OEM&ODM orders and cooperations.
