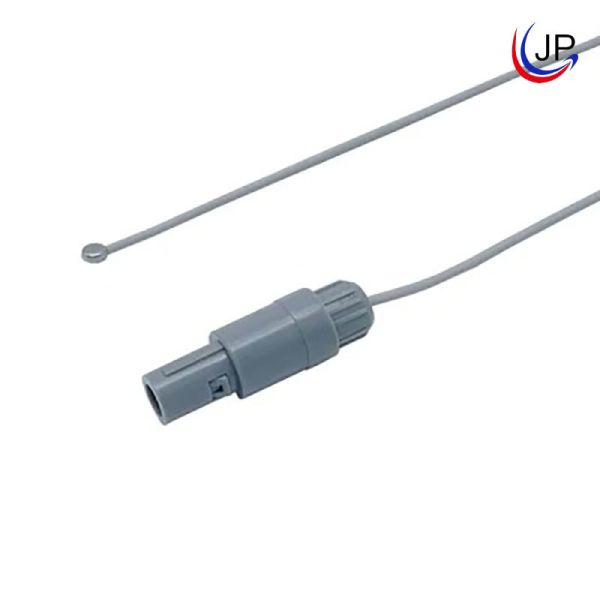

Electric Kettle Probe Temperature Sensor Small Home Appliances
Electric Kettle Probe Temperature Sensor Small Home Appliances
Electric Kettle Probe Temperature Sensor Small Home Appliances
Electric Kettle Probe Temperature Sensor Small Home Appliances
Electric Kettle Probe Temperature Sensor Small Home Appliances
Electric Kettle Probe Temperature Sensor Small Home Appliances
Specifications
Brand Name :
JP SENSOR
Model Number :
MFP-3A
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Carton Packing
Resistance :
50KΩ , 100KΩ
Wire :
UL4413 26AWG XLPE 150°C irradiated wire
B Value :
B25/50=3950K
Customization :
Available
Operating temperature range :
-40℃~125℃
Probe :
Stainless Steel Probe
Feature :
Fast response
Application :
For electric kettle and small home appliances
Description

Electric Kettle Probe Temperature Sensor Small Home Appliances

Brief Introduction:

This product is generally used in electric kettles and other small home appliances. The probe of this product is stainless steel, the wire is UL4413 26AWG XLPE 150°C irradiated wire, and the resistance parameters are generally 50KΩ, 100KΩ, B25/50=3950K (can be customized according to customers’ requirements), Using epoxy resin encapsulation, the wire tail can be equipped with corresponding connectors according to customers’ requirements.

Features:

Comply with RoHS standard

Operating temperature range: -40℃~125℃

Easy to install

Stable

Stainless Steel Probe

Fast response

Application:

For electric kettle and small home appliances.

Structure and Dimensions:(unit: mm)

Electric Kettle Probe Temperature Sensor Small Home Appliances

NO. Name Material Specification QTY. Remarks
1 Chip NTC Chip 1 /
2 Encapsulation Epoxy resin 1 /
3 Probe SUS 304 1 /
4 Wire UL4413 26awg 150℃ 1 /

Electrical Specification:

Rec. at 25℃(kΩ) Beta value (In air) Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃(teflon or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600

Other Product Images:

Electric Kettle Probe Temperature Sensor Small Home AppliancesElectric Kettle Probe Temperature Sensor Small Home AppliancesElectric Kettle Probe Temperature Sensor Small Home Appliances
