37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries
Specifications
Brand Name :
JP SENSOR
Model Number :
MFP
Certification :
ISO9001, RoHS
Place of Origin :
Anhui, China
MOQ :
10000 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2 Weeks
Packaging Details :
Carton Packing
Resistance :
1.355KΩ
B Value :
3935k 3976k
Product Name :
NTC Thermal chip
Resistance tolerance :
±0.5%, ±1%, ±2%, ±3%, ±5%
Customization :
Available
OEM/ODM :
Available
Description

37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries

Product Description:

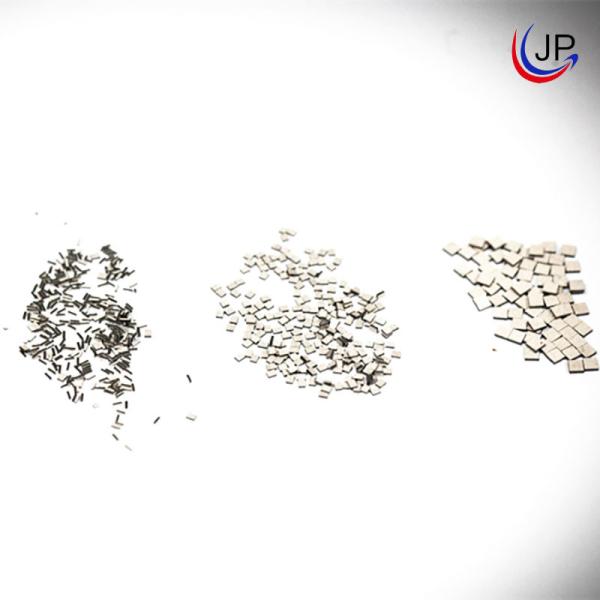

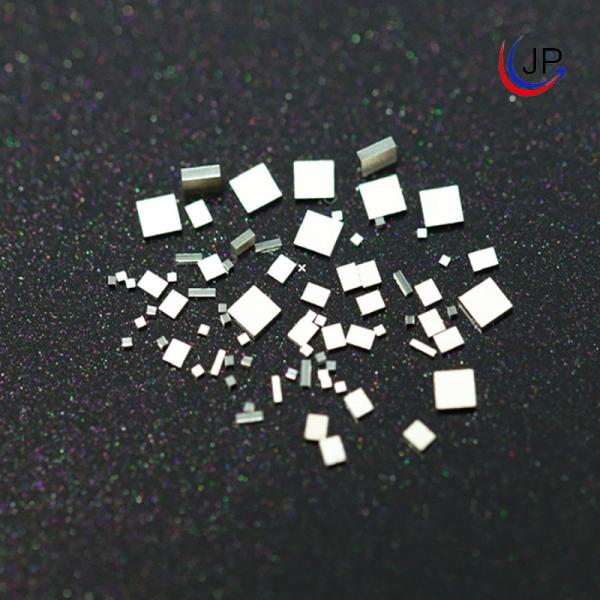

37℃ 1.355KΩ 3935k 3976k NTC Thermal chip is widely used, generally used in home appliances, medical equipment, batteries, etc.

Features:

Comply with RoHS standard

Silver electrode

Good replaceability

Application:

It is used for fabricating and producing NTC thermistors and temperature sensors.

Part Number Code:

37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries

Structure and Dimensions:

37C 1.355Kohm 3935k 3976k NTC Thermistor Probe For Batteries

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25 Beta value (In air)Pmax(mW) δ(mW/℃) Thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
1 B25/85=3435 / / / / /
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
