NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler
NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler
NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler
NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler
Specifications
Brand Name :
Jingpu Brand
Model Number :
MFP-4B
Certification :
CE,ROHS,ISO9001,ISO13485,UL
Place of Origin :
Hefei, Anhui, China
MOQ :
1000
Price :
USD 0.1-5 /PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2-7days
Packaging Details :
Carton packing
Way to install :
Inserting
Sensing way :
Resistence
Output signal type :
Analog Type
Material :
Ceramics
Measuring the dielectric :
Temperature
IP code :
IP64
Transport package :
Carton Packing
Appearance :
Water
Warranty :
2 years
After-sale service :
Quality Assurance
Chip :
NTC Thermistor
Customization :
Yes
Operating Temperature :
Normal or low temperature
Resistence Value :
Custom
B Value :
Custom
Shipping :
Shipping, Air, or Express
Wire :
PVC, , Enamel Insulation
Free Sample :
Yes
Description

NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler

Brief Instruction (Product Description):

This product is generally used in the stainless steel probe of electric kettle, the wire is FEP 26AWG 200℃ wire, resistance parameters are generally 50K ω, 100K ω, B25/50=3950K (also can be customized according to customer requirements) use epoxy resin packaging, wire tail can be matched according to customer requirements with the corresponding connector.

Features:

Comply for ROHS standard

Operating temperature range: -40℃~125℃

Easy to install

Stability is good

Stainless steel probe

Application:

Electric Kettle

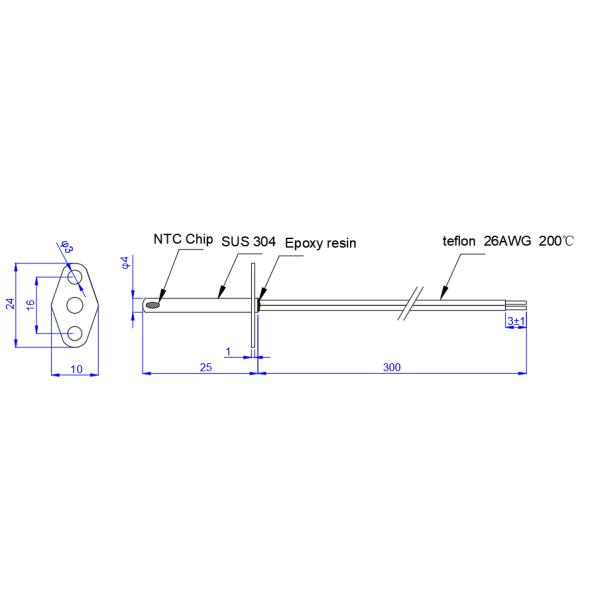

Structure and Dimensions:(unit:mm)

NTC Temperature Sensor For Electric Kettle And Auto Water And Boiler

Product customization Notice:
(1) Resistance value of the product (nominal resistance value of 25"C, or other resistance)
(2) Product accuracy (1%-5%)
(3) B-value coefficient of the product
(4) Wire type and length (color, length, temperature resistance requirements)
(5) Wire tail specifications (tin immersion, socket plug-in, special specifications)
(6) Probe specifications and materials (copper plated nickel, red copper, stainless steel, ABS rubber shell)
(7) Use temperature range
