Specifications
Brand Name :
Jingpu Brand
Model Number :
MF5A-6
Certification :
CE,ROHS,ISO9001,ISO13485,UL
Place of Origin :
Hefei, Anhui, China
MOQ :
1000
Price :
USD 0.1-5 /PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2-7days
Packaging Details :
Carton packing
Way to install :
Inserting
Sensing way :
Resistence
Output signal type :
Analog Type
Material :
Ceramics
Measuring the dielectric :
Temperature
IP code :
IP64
Transport package :
Carton Packing
Appearance :
Yellow
Warranty :
2 years
After-sale service :
Quality Assurance
Chip :
NTC Thermistor
Customization :
Yes
Operating Temperature :
Normal or low temperature
Resistence Value :
Custom
B Value :
Custom
Shipping :
Shipping, Air, or Express
Wire :
PVC, , Enamel Insulation
Free Sample :
Yes
Description

Film Type Ntc Thermistor Temp Sensor For Battery And Home Appliances 4.5mm 50mm

Brief Instruction:

MF5A-6 10k film type ntc thermistor, the film width of the other size is 4.5mm, the total length is 50mm, and the total thickness of the product is Max 0.6mm. The resistance parameters of this size are as follows10KΩ3435K,10KΩ3977K.

Features:

MF5A-6 Series of products for the same direction lead film packaging type
Insulation film packaging, fast thermal sensing speed, high sensitivity
Good stability, high reliability
Good insulation
High resistance value precision
Small size, light weight, strong structure, easy to automate installation
Operating temperature range: -40℃~100℃
The width of the membrane is 4.5mm and the length is 50mm
Alternative resistance values are available for precision:±1%,±2%,±3%,±5%

Application:

Home appliances, computer, printer, battery pack

Part Number Code:

4.5mm 50mm Ntc Thermistor Temp Sensor For Battery And Home Appliances

Structure and Dimensions:

4.5mm 50mm Ntc Thermistor Temp Sensor For Battery And Home Appliances

Electrical specification:

Product Specification Rec.at 25℃(KΩ) Beta value (In air)
Pmax(mW)		 δ
(mW/℃)		 thermaltime constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
A6A103□3435B□□□□ 10 B25/85=3435 Approx.3.5 Approx.0.7 Max.5.0 -40~100 25~50
A6A103□3977B□□□□ 10 B25/85=3977 25~50
A6B203□3972B□□□□ 20 B25/85=3972 25~50
A6B104□3435B□□□□ 100 B25/50=3950 25~50

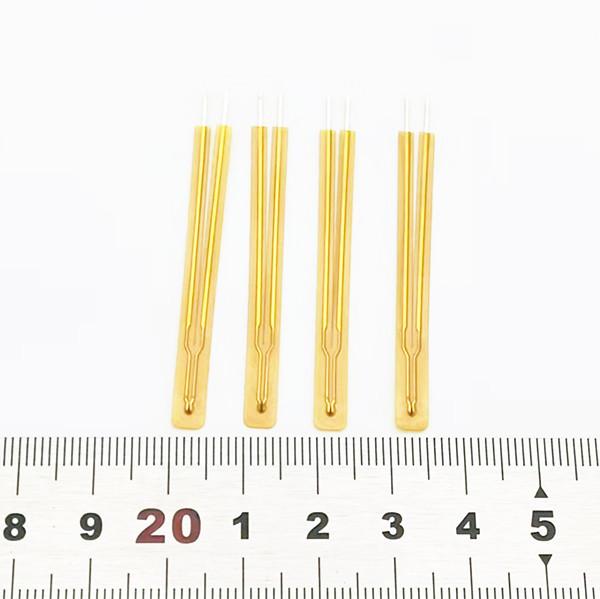

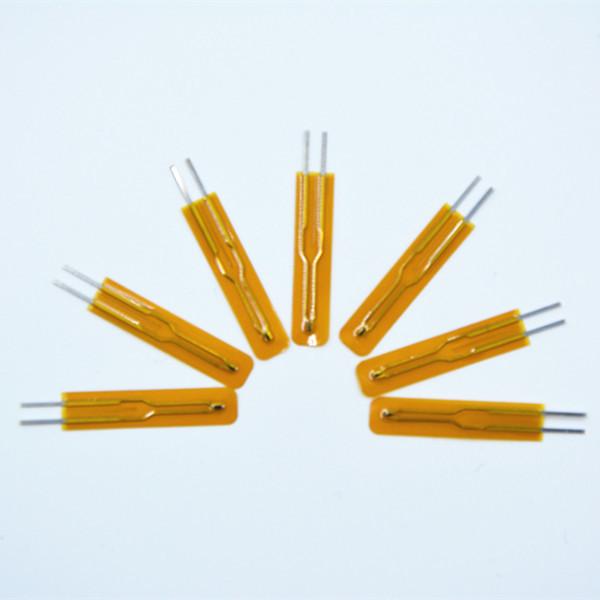

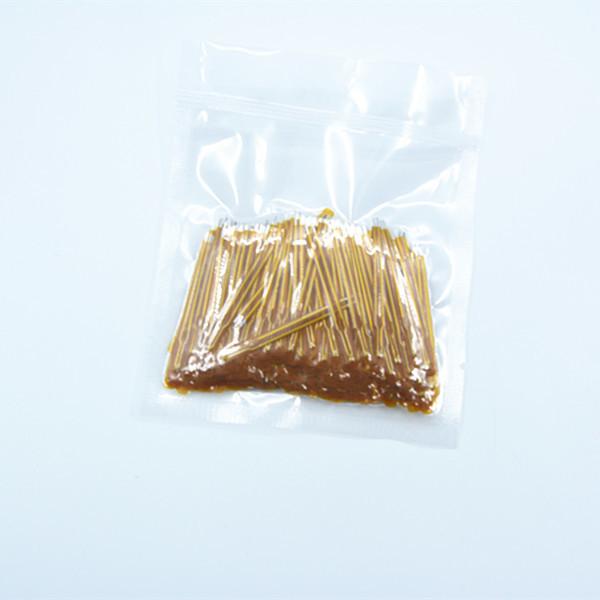

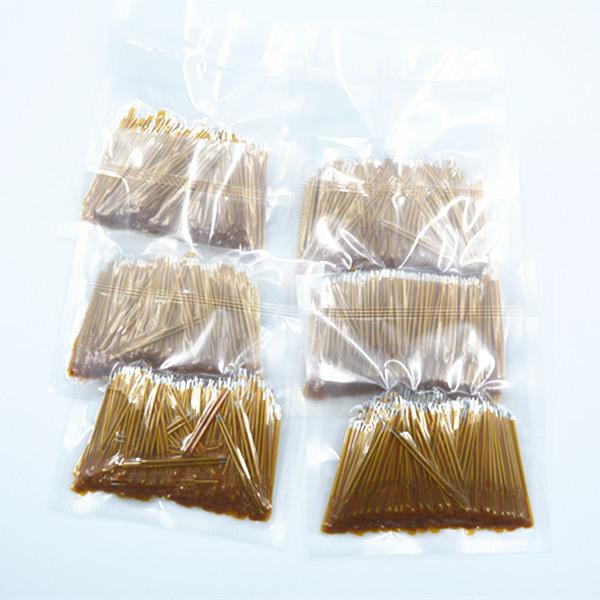

product picture/images:

4.5mm 50mm Ntc Thermistor Temp Sensor For Battery And Home Appliances

Can be customized processing according to customer requirements
[Customization Notes]
1, resistance value of resistance (25°C resistance nominal resistance value requirements)
2. Precision of resistance (1%-5%)
3. B value coefficient of resistance
4, wire model length
5, wire tail specifications (tin immersion, with plug, special specifications)
6. Appearance size of head
7. Measure the ambient temperature
