Specifications
Brand Name :
Jingpu Brand
Model Number :
MF5A-6
Certification :
CE,ROHS,ISO9001,ISO13485,UL
Place of Origin :
Hefei, Anhui, China
MOQ :
1000
Price :
USD 0.1-5 /PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2-7days
Packaging Details :
Carton packing
Way to install :
Inserting
Sensing way :
Resistence
Output signal type :
Analog Type
Material :
Ceramics
Measuring the dielectric :
Temperature
IP code :
IP64
Transport package :
Carton Packing
Appearance :
Yellow
Warranty :
2 years
After-sale service :
Quality Assurance
Chip :
NTC Thermistor
Customization :
Yes
Operating Temperature :
Normal or low temperature
Resistence Value :
Custom
B Value :
Custom
Shipping :
Shipping, Air, or Express
Wire :
PVC, , Enamel Insulation
Free Sample :
Yes
Description

Film Type Ntc Thermistor Temperature Sensor Width 3.6mm Overall Length 50mm

Brief Instruction:

The width of the MF5A-6 Film Type NTC Thermistor is 3.6mm, total length of 50mm, the total thickness of the product is Max 0.6mm, this size of product resistance parameters are 10K ω 3435K,10K ω 3977K,100K ω 4200K.

Features:

Thin film type

Operating temperature range: -40℃~100℃

Film width 3.6mm, total length 50mm

Insulated film package, high thermal sensitivity and high speed
Good stability and high reliability
Good insulation
High precision of resistance value
Small size, light weight, strong structure, easy to automate installation

Application:

Home appliances, computer, printer, battery pack,computer CPU cooling fan, and so on

Part Number Code:

Width 3.6mm Ntc Thermistor Temperature Sensor Film Type Overall Length 50mm

Structure and Dimensions:

Width 3.6mm Ntc Thermistor Temperature Sensor Film Type Overall Length 50mm

Note: The size can be made :18MM,25MM,50MM,75MM(customized according to customer requirements)

Electrical specification:

Product Specification Rec.at 25℃(KΩ) Beta value (In air)
Pmax(mW)		 δ
(mW/℃)		 thermaltime constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)
A6A103□3435B□□□□ 10 B25/85=3435 Approx.3.5 Approx.0.7 Max.5.0 -40~100 25~50
A6A103□3977B□□□□ 10 B25/85=3977 25~50
A6B203□3972B□□□□ 20 B25/85=3972 25~50
A6B104□3435B□□□□ 100 B25/50=3950 25~50

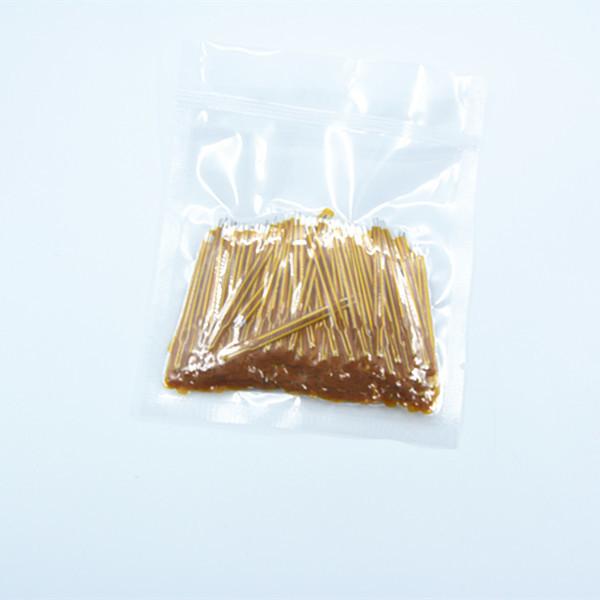

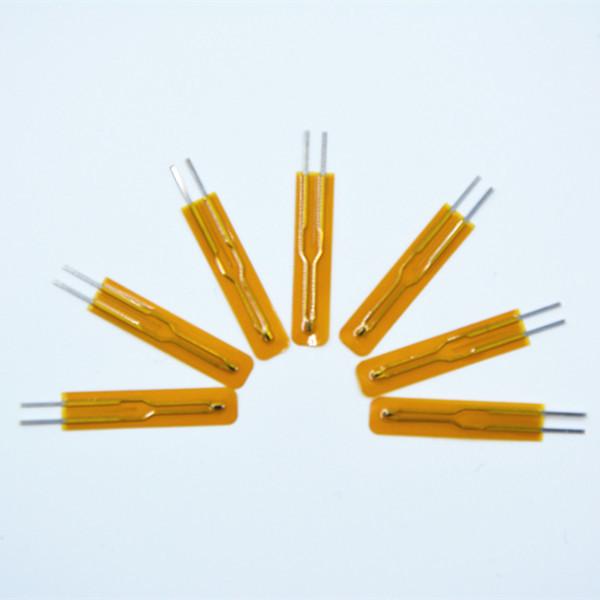

product picture/images:

Width 3.6mm Ntc Thermistor Temperature Sensor Film Type Overall Length 50mm
