Surface Mounting Ntc Temperature Sensor For Control Cabinet Ring Lug M3.7
Surface Mounting Ntc Temperature Sensor For Control Cabinet Ring Lug M3.7
Surface Mounting Ntc Temperature Sensor For Control Cabinet Ring Lug M3.7
Surface Mounting Ntc Temperature Sensor For Control Cabinet Ring Lug M3.7
Specifications
Brand Name :
Jingpu Brand
Model Number :
MFP-2C
Certification :
CE,ROHS,ISO9001,ISO13485,UL
Place of Origin :
Hefei, Anhui, China
MOQ :
1000
Price :
USD 0.1-5 /PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Million per Year
Delivery Time :
2-7days
Packaging Details :
Carton packing
Way to install :
Inserting
Sensing way :
Resistence
Output signal type :
Analog Type
Material :
Ceramics
Measuring the dielectric :
Temperature
IP code :
IP64
Transport package :
Carton Packing
Appearance :
Black
Warranty :
2 years
After-sale service :
Quality Assurance
Chip :
NTC Thermistor
Customization :
Yes
Operating Temperature :
Normal or low temperature
Resistence Value :
Custom
B Value :
Custom
Shipping :
Shipping, Air, or Express
Wire :
PVC, , Enamel Insulation
Free Sample :
Yes
Description

Surface Mounting Ntc Temperature Sensor For Control Cabinet Ring Lug M3.7

Brief Instruction:

The surface mounted temperature sensor has a large contact area and close contact with the measured object, so it has obvious advantages in some surface temperature measurement: high temperature measurement accuracy, fast reaction speed, small size and convenient fixed installation.

MFP-2C Surface mounting temperature sensor be consist of the insulated wire (PTFE cable & PVC cable,XLPE insulated wire), NTC chip and epoxy resin,ring lug M3.7. The optional resistance value range 0.3kΩto 2000kΩ, and beta value range 2500K to 4500K.

Features:

Comply for RoHS standard

Miniature designed

Interchangeability

Surface mount temperature measurement

Operating temperature range: -40℃~125℃

Application:

Control cabinet

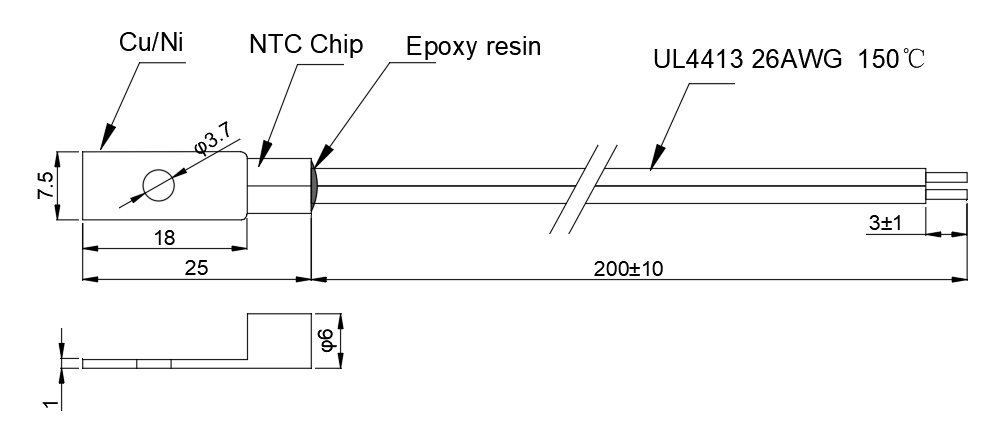

Structure and Dimensions:

Surface Mounting Ntc Temperature Sensor For Control Cabinet Ring Lug M3.7

Electrical specification:

Rec. at 25℃(kΩ) Beta value (In air)Pmax(mW) δ(mW/℃) thermal time constant τ(sec.) Operating Temperature Range TL-TH(℃) Total length
L(mm)		 Electrical Specification:
1 B25/85=3435 Approx.60 / / -20℃~105℃(PVC wire)& -40℃~125℃( or XLPE wire) 100~5000
1.5 B25/50=3850
1.5 B25/50=3935
2 B25/85=3550
2 B25/85=3935
2.08 B25/85=3580
2.2 B25/50=3935
3 B25/50=3950
5 B25/50=3470
5 B25/50=3950
8 B25/100=3988
10 B25/85=3435
10 B25/50=3470
10 B25/50=3935
10 B25/50=3950
20 B25/50=3950
47 B25/50=3950
50 B25/50=3950
50 B25/50=4200
100 B25/50=4200
200 B25/50=4200
500 B25/50=4450
1000 B25/85=4600
