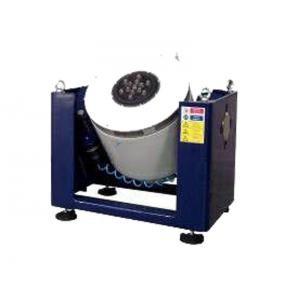

Half Sine Wave Battery Test Equipment With Vibration Impact Test Bench
Half Sine Wave Battery Test Equipment With Vibration Impact Test Bench
Half Sine Wave Battery Test Equipment With Vibration Impact Test Bench
Half Sine Wave Battery Test Equipment With Vibration Impact Test Bench
Specifications
Brand Name :
GSKA
Model Number :
Battery Testing Machine
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Frequency Range :
5～4000Hz
Max. Displacement :
25.4mm
Max. Eccentric Torsion :
＞196N×m
Axial Vibration Isolation Frequency :
＜3Hz
Max. Loading :
120kg
Brand :
GSKA
Power :
Electronic
Standard :
GB/IEC/EN/UN38.3/UL
Description

Half Sine Wave Battery Test Equipment With Vibration Impact Test Bench

Applications:

The vibration test can be used to find early failure of the battery, simulate actual condition assessment and structural strength test. The product has a wide range of applications, wide application area, and significant and reliable test results. It is an ideal battery-specific vibration for battery manufacturers, quality inspection departments and research institutes. Test Equipment. It is suitable for testing various types of single cells and battery packs such as charging treasure, lithium ion, nickel hydrogen, nickel cadmium, lead acid, and metal hydride nickel.

The vibration test can also be used for fatigue testing of products to assess the life of the product.

Digital Switch Type Amplifier Introduction:

This system adopts the sine pulse width modulation technology of digital power amplifier.Its working

principle Is:using the MOSFET field-effect’s high frequency switch power, through digital circuit to amplify and restore the low-voltage signal which input by controller, Then the output the original signal to vibration

tester's moving coil circuit,and drive vibration tester's extension table movement.The main part of the digital power amplifier: the front control, power amplifier module, protection circuit, the power part and electric cabinet.

Parameters:

Vibration System
Rated Sine Force 300kgf
Rated Random Force 300kgf
Rated Shock Force 600kgf
Frequency Range 5～4000Hz
Max. Displacement 25.4mm
Shock Displacement 25.4mm
Max. Velocity 2m/s
Max. Acceleration 981m/s2
Armature Diameter Φ150mm
First Resonance Frequency 2900Hz
Max. Eccentric Torsion ＞196N×m
Mass of Moving elements 3kg
Load Connection Point 13 Connection Point
Bench Screw Size (Standard) M8

Bench Screw layout

(diameter ,square)

 Φ60mm 6 piece,Φ120mm 6 piece
Axial Vibration Isolation Frequency ＜3Hz
Max. Loading 120kg
Magnetic leakage ＜3mT (≤1mT optional for special requirement )
Dimension(uncrated )(L×W×H) 764mm×530mm×660mm
Weight 490kg
Power Amplifier
Power 3kVA
Signal-to-Noise Ratio ＞65dB
Amplifier Type Digital ON/OFF Power Amplifier
Power Amplifier Display With perfect alarm and protection devices for LCD display over current, over voltage ,bench temperature etc . And voltage , current protection for sine,random RMS
Power amplifier logic module Amplifier main control panel adopt CPU control, with self-inspection function .
Amplifier with fault memory function With fault memorize function, available to check fault reason easily. And whole testing time,last time testing time check available
System Protection Functions include: over voltage, under voltage,default phase, logic fault,power module protection, power module temperature, over current, over voltage, power souce, bench displacement, bench temperature, external connection circuit protection . Any fault occur, output closed. Meanwhile with alarming.
Amplifier Adopt MOSFET transistor field effect module technology ,logic module with CPU micro-processor real time sampling,protection,LCD display,record running time,fault states,maximum output, complied with CE requirements; Power amplifier with IGBTmodule .
Rated Output Voltage 120Vrms
Amplifier Efficiency ＞92%
Dimension (uncrated)(L×W×H) 550mm×680mm×1455mm
Weight(Uncrated ) 230kg
Blower
Power 0.75kW
Air Flow 0.18m3/s
Air Pressure

0.015kgf/cm2

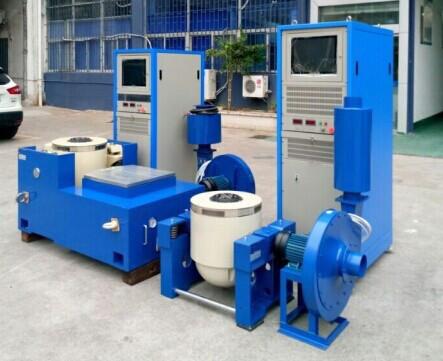

Half Sine Wave Battery Test Equipment With Vibration Impact Test BenchHalf Sine Wave Battery Test Equipment With Vibration Impact Test Bench

Advantage:


Ø 24 hours online


Ø 35 years experiences


Ø Sample chamber of each model


Ø Best price, fast delivery


Ø OEM,ODM


Ø Oversea offices


Ø Own import and export business license


Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
