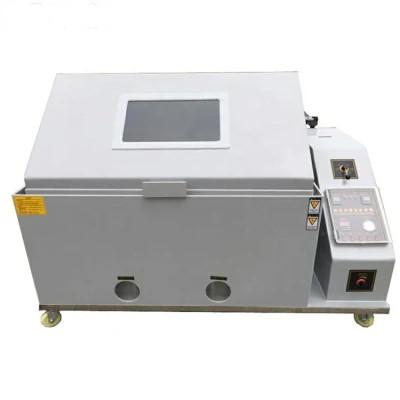

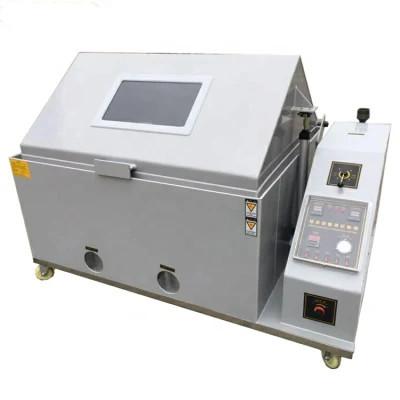

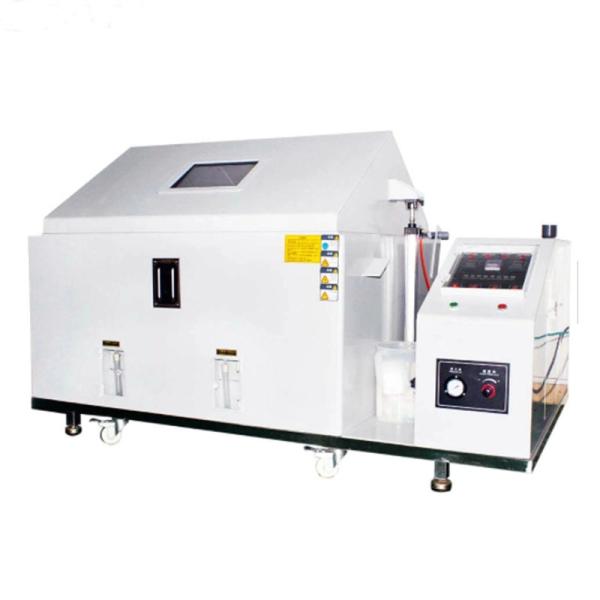

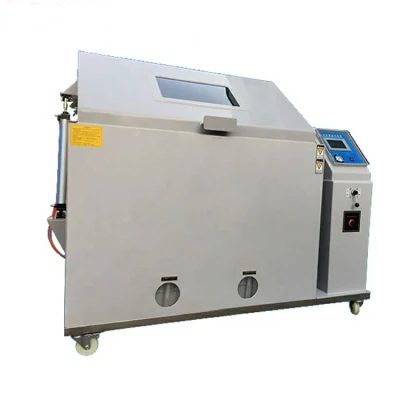

CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase
Specifications
Brand Name :
GSKA
Model Number :
GSA-39
Certification :
CE
Place of Origin :
Donggaun,china
MOQ :
1set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
260 Set / Sets per Month
Delivery Time :
15-20working days after received deposit
Packaging Details :
Temperature Environmental Testing Equipment packed with a plywood case.
Temperature Uniformity :
±2°c
Lights :
Lights
Relative Humidity :
80%Rh (Do Not Display)
Power :
AC220V±10% 50Hz Single Phase
Temperature Fluctuation :
±0.1ºC
Temperature Range :
Rt+10c~60c
Weight :
90 -300kg
Specification :
108L, 270L, 600L, 1400L
Description

CE Certified High Quality Salt Spray Corrosion Test chamber

product description:

Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.

Salt Spray Tester is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.

Product Features:

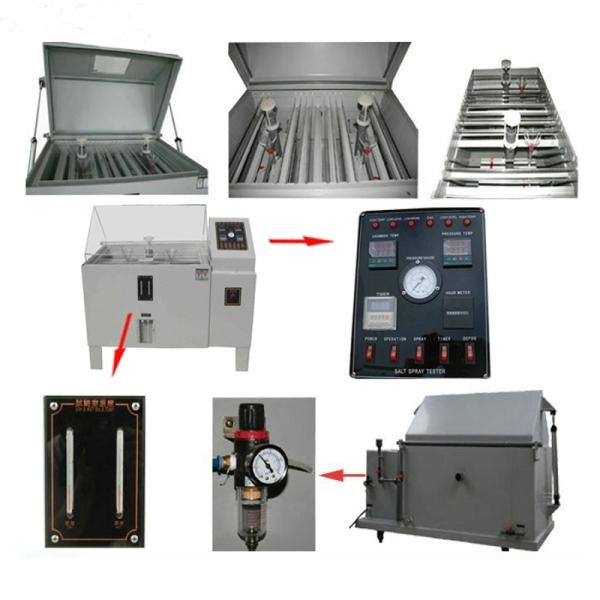

1.Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2.Reservoirs with mixing system on stand.
3.Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.

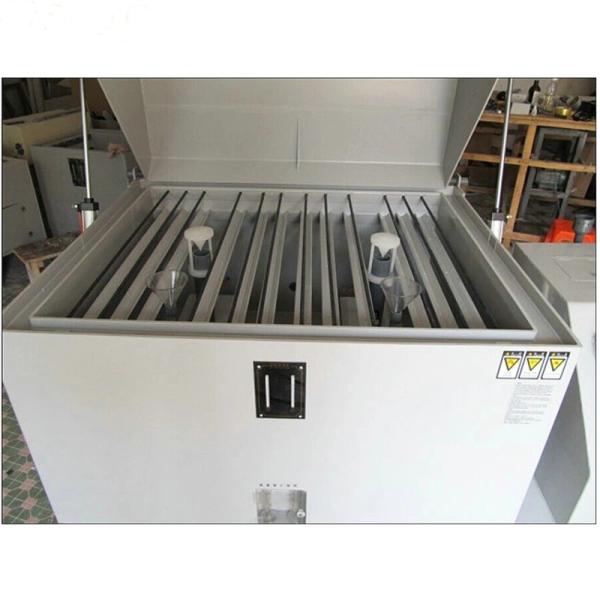

4.Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6.Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12.Low water cut-off protection on humidifying tower.

Specifications:

Model GSA-39 GSA-40 GSA-41 GSA-42 GSA-43
Inner size (cm) 60x45x40 90x60x50 120x100x50 160x100x50 200x100x50
External size(cm) 107x60x118 141x88x128 190x130x140 230x130x140 270x130x140
Inside temp Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method
(CASS)50°C±1°C
Brine temp 35°C±1°C 50°C±1°C
Test chamber volume 108L 270L 600L 800L 1000L
Brine chamber volume 15L 25L 40L 40L 40L
Compressed air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity 85%RH or more
PH 6.5~7.2 3.0~3.2
Spray method
Programmable spray (including the continuous spray interrupted spray)
Power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A AC220V1Φ20A AC220V1Φ30A

CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase

CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase

CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase

CE Certified Salt Spray Corrosion Test Chamber AC220V 50Hz Single Phase

FAQ:

Q1 : Can you customize the product?

A: Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate

test chamber also can be customized.

Q2 : How to choose the most suitable products?

A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.

Q3 : Can you arrange installations and commissioning in our lab?

A: Firstly, for standard chamber we had 15-20 days commissioning before shipping , you just need link power in your lab, then can start to operate

Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it

Thirdly, some of customized chambers we should to install and teach your team to operate .
