1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products
1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products
1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products
1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products
1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products
1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products
Specifications
Brand Name :
GSKA
Model Number :
GSR-652
Certification :
CE
Place of Origin :
Donggaun,china
MOQ :
1set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
150 Set / Sets per Month
Delivery Time :
15-20working days after received deposit
Packaging Details :
The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases
Warranty :
1 year
Product name :
two zone thermal shock test chamber
High temperature range :
+60~+200℃
volume :
1000L
Pre-heating limit :
+220°C
Internal dimension :
1100*900*1000mm
Power :
6kw
Power supply :
220V
Description

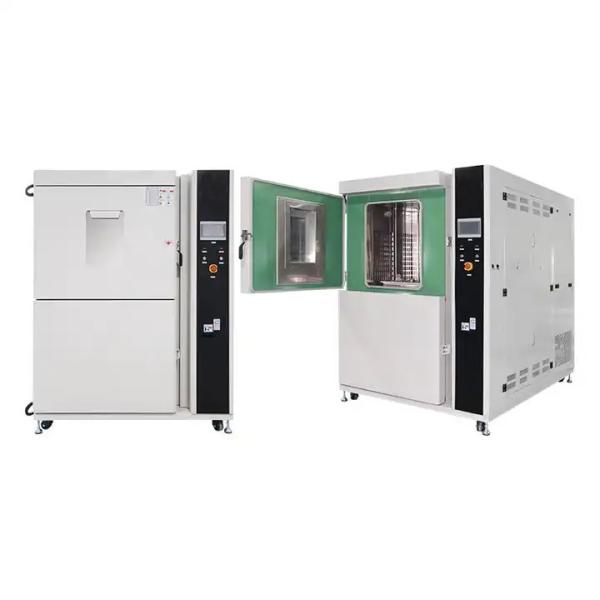

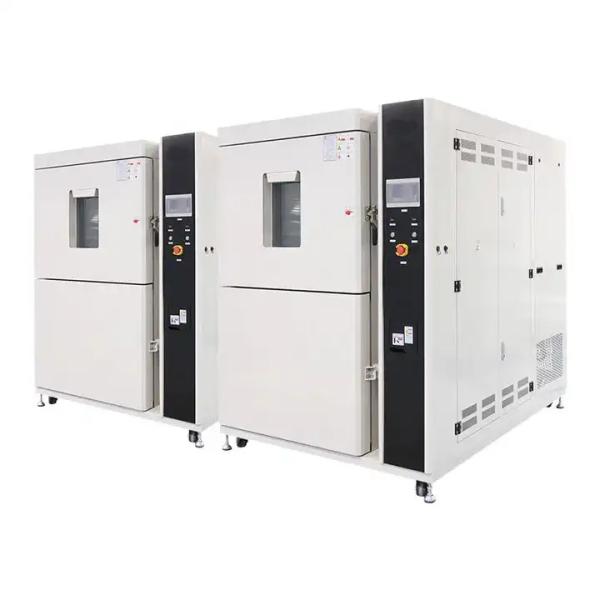

1000L Large-Capacity Two-Zone Thermal Shock Test Chamber For Electronic Products

Products Description:
1000L Large Capacity Good Price Environmental Chamber Two zone Thermal Shock Test Chamber For Electronic Product Testing
Two Zone Thermal Shock Test Chamber is ideal for testing IC chips and small electronic products. The design consists of two independently controlled chambers. One room is hot, the other is cold. Products are quickly transferred between the hot and cold chambers, which will cause temperature shocks to the samples to help find product defects in electronic components and product assembly.

Features:

Two Zone Thermal Shock Test Chamber is ideal for testing IC chips and small electronic products. The design consists of two independently controlled chambers. One room is hot, the other is cold. Products are quickly transferred between the hot and cold chambers, which will cause temperature shocks to the samples to help find product defects in electronic components and product assembly.Thermal stock chambers are used in all industries including Automotive, Electronics, Aerospace, and others to help find product defects in electronic components and product assemblies.

Product Paramenters:
System
Test by moving and switching the basket
Test area capacity
1000 L
Test area load-bearing capacity
100KG
Internal dimensions W×H×D mm
1100*900*1000
Dimensions W×H×D mm
2000*2550*2400
Weight
600kg
Power
1φ220V AC&50/60Hz,24A or 3φ380V AC&50/60Hz,10A
Performance
High temperature range
+60~+200℃
Temperature Fluctuations
±0.5°C
Pre-heating limit
+200℃
Pre-cooling limit
-75℃
Pre-heating time
Ambinet temperature to 200℃ within 15 mins
Temperature recovery time
within 5 mins
Structure
Appearance material
Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion
Test area material
1.2mm thick SUS304 stainless steel
Heater
Finned Nichrome Explosion-Proof Heater
Condenser
Water-cooled condenser
Air circulator
Centrifugal fan
Refrigeration unit
System
Mechanical single-stage compression cooling
Compressor
Scroll/Piston Compressor
Refrigerant
R404A [R449A available on request]
Power
3.0 Kw
Noise level
72dB

1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products

1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products

1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products

1000L Large Capacity Two Zone Thermal Shock Test Chamber For Electronic Products

FAQ:

1. Who are we?


We are based in Guangdong, China, start from 2014,sell to Northern Europe(20.00%),South Asia(20.00%),South America(10.00%),Eastern

Europe(10.00%),Mid East(10.00%),Central America(10.00%),Domestic Market(10.00%),Eastern Asia(5.00%),Western Europe(5.00%). There

are total about 101-200 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?

Climatic Chamber,Enviornmental Chamber,Enviornmental Simulation System,Reliability Test Equipment,Accerlated Aging Tester

4. Why should you buy from us not from other suppliers?

The company was founded in 1998 and has more than 20 years of experience. Our products have passed the customer CE certification

5. What services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,DAF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
