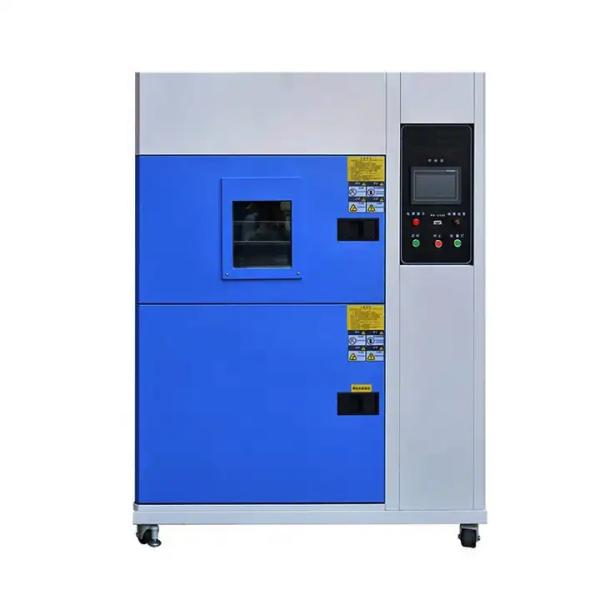

2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
Specifications
Brand Name :
GSKA
Model Number :
GS-87
Certification :
CE
Place of Origin :
Donggaun,china
MOQ :
1set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
280 Set / Sets per Month
Delivery Time :
15-20working days after received deposit
Packaging Details :
Hot cold cycling equipment will be well wrapped with film then loaded in strong plywood cases
Warranty :
3 years
Electronic :
Gray and white
Product name :
2 Zones Temperature Heat Cold Climats Thermal Shock Chamber
High temperature range :
room temperature~200℃
Heating-up time :
60℃~200℃ about 25min
High temperature Impact recover time :
(150℃)about 30min
Inner material :
SUS#304 stainless steel
Inner box :
35x35x40 or customized
Description

Thermal Shock Chamber For Testing Laboratory Liquid Temperature

Applicable Industries:


Applied to aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products, For high and low temperature impact test.

Specifications:
Main Technical Parameters
Preheat Temperature Range: RT~+200℃
Pre-cooling Temperature Range: RT~ -70℃
Upper limit of preheating temperature: 200℃
Lower limit of pre-cooling temperature: -70℃
High temperature shock temperature: 150℃
Low temperature shock temperature: -60℃
Temperature Fluctuation Difference: ≤ ±0.5℃
Temperature Deviation: ±2℃
Transition Time: 5~15s
Temperature Recovery Time: 3~5min
Temperature Recovery Temperature Measurement Point: air inlet
Temperature Shock Range: -60℃~190℃(any temperature point can be set)
Test Conditions:
perform 3 temperature zone shock test conditions (high temperature-normal temperature-low temperature),
temperature zone shock test conditions (high temperature-low temperature)
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
2 Zones Thermal Shock Chamber For Testing Laboratory Liquid Temperature
FAQ:

Q1: How long is the delivery time?

A:Normally 5-10 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.


Q2: What is the warranty for the equipment?

A: 3 year. We can provide you lifelong technical support.


Q3: What is the payment terms?

A: T/T, L/C, Western Union, etc


Q4: How about the products quality?

A: Our products apply to ce

Q5: Is it OK to print my logo on machine product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

or 100% L/C at sight .

Q7: Can we test sample before place order?

A: Of course,we can test sample and provide test report to you with free.
