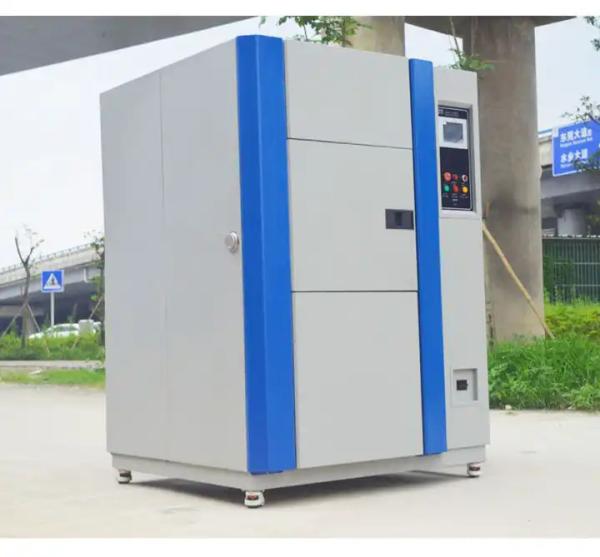

CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
Specifications
Brand Name :
GSKA
Model Number :
GS-24
Certification :
CE
Place of Origin :
Donggaun,china
MOQ :
1set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
610 Set / Sets per Month
Delivery Time :
15-20working days after received deposit
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Temperature range :
-40~+150℃
Temperature uniformity :
2℃
Humidity uniformity :
3%RH
Cooling method :
Air cooling
Power :
Electronic
Temperature fluctuation :
Temperature fluctuation:
Humidity range :
20~98%RH
Humidity fluctuation :
±2.5%RH
Description

Heat Shock Test Chamber Under Alternating High And Low Temperature Environment

Products Description:

Applications:

1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect

Chamber Design Features:

1. High performance and quiet operation (68dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Programmable Controller:

1. PLC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output

Standard Features:

Internal dimension (W*D*H) 400*500*500mm
External dimension (W*D*H) 600*1080*1380mm
Temperature range -40~+150℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel
Cooling method Air cooling
Controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test
Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor
Lighting Heat resistance
France Tecumseh compressor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage

CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment

CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment

CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment

CE Thermal Shock Test Chamber Under Alternating High And Low Temperature Environment
