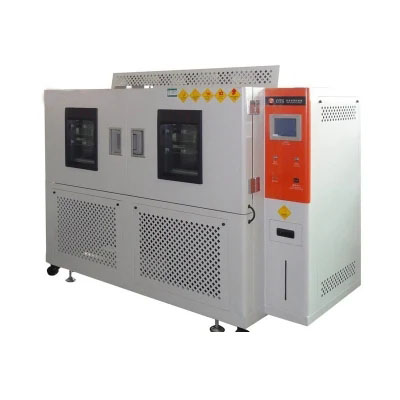

Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing
Specifications
Brand Name :
GSKA
Model Number :
GSA-88
Certification :
CE
Place of Origin :
Donggaun,china
MOQ :
1set
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
260 Set / Sets per Month
Delivery Time :
15-20working days after received deposit
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and vedio inside.
Model NO. :
GSA-88
Chamber Material :
Nano-Baked Lacquer; Stainless Steel
Humidity Range :
20%~98%R.H.
Compressor :
Tecumseh
Specification :
225L
Temperature Range :
-70ºC~+100ºC(150ºC)
Controllers :
Temi, Th-900c (South Korean) /Oyo (Japan)
Transport Package :
Strong Wooden Case
Description

Climate Constant Temperature And Humidity Test Box For Electrical Safety Testing

Product Description:

Constant temperature and humidity test chamber can accurately simulate low temperature, high temperature, high temperature and high humidity, low temperature and low humidity complex natural-like environment, suitable for product reliability testing in a variety of industries such as plastic, electronics, food, clothing, vehicles, metal, chemical, building materials, etc.

Technical specifications:

Model Inner Chamber Volume Internal Dimensions
W*H*D(cm)		 External Dimensions
W*H*D(cm)
GSA-88 80L 80L 40*50*40 90*136*94
GSA-88 150L 150L 50*60*50 100*146*104
GSA-88 225L 225L 60*75*50 100*168*117
GSA-88 408L 408L 60*85*80 110*171*137
GSA-88 800L 800L 100*100*800 150*186*137
GSA-88 1000L 1000L 100*100*100 150*186*157
Temperature range -70ºC~+100ºC(150ºC)(A:+25ºC B:0ºC C:-20ºC D:-40ºC E:-50ºC F:-60ºC G:-70ºC)
Humidity range 20%-98%R.H. (10%-98%R.H/5%-98%R.H are special selection conditions)
Temperature and humidity resolution accuracy/uniformity ±0.1°CC;±0.1%R.H./±1.0°C: ±3.0%R.H.
Temperature and humidity control accuracy / fluctuation ±1.0°C; ±2.0%R.H./±0.5°C; ±2.0%R.H.
Temperature Rising/Falling Time approx. 4.0°C/min; approx. 1.0°C/min (5-10°C drop per minute for special selection conditions)
Material of internal and external parts Exterior: Premium cold plate nano-baked lacquer
Interior: stainless steel
Insulation material High temperature resistant high density ethylene chloride-based vinyl acetate foam insulator material
Cooling system Air-cooled/single stage compressor (-20°C),air and water-cooled/double stage compressor (-40°C-70°C)
Protection devices Fuseless switch, compressor overload protection switch, refrigerant high and low pressure protection switch, over humidity and over temperature protection switch, fuse, fault warning system
Accessories Viewing window, 50 mm test hole, PL box interior light, divider, wet and dry ball gauze
Controllers TEMI, TH-900C (South Korean) /OYO (Japan)
Compressors Tecumseh
Power supply 1Φ220VAC±10% 50/60Hz &3Φ380VAC±10%50/60Hz

Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing

Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing

Constant Temperature And Humidity Climate Test Chamber For Electrical Safety Testing

FAQ:


1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

A:Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while

considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary.

After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What's the delivery term?

A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put

your logo on the machine.

4. How to install and use the product?

A:We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is

shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to

use. And if possible, we can also install your machine at site.
