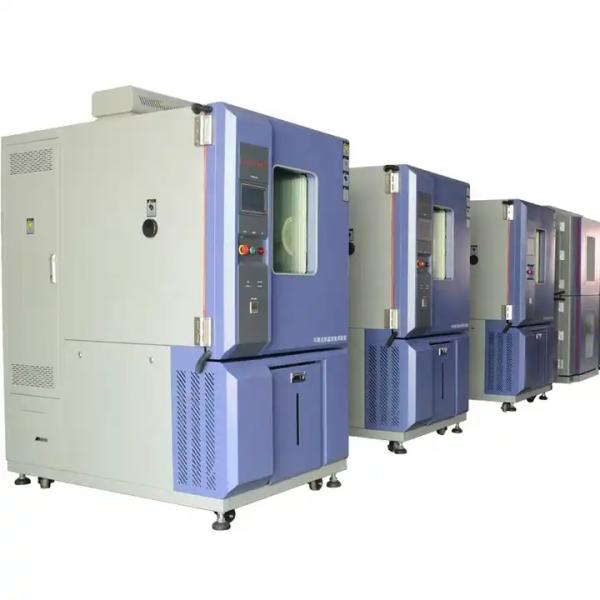

Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
Specifications
Brand Name :
GSKA
Model Number :
Climatic Test Chamber
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Weight :
400-500KG
Function :
product stability test
Color :
Blue or customize
Keyword :
Fast change rate test chamber
Power :
220V , 50Hz
Condenser :
Water-cooled condensing agent
Controller resolution :
±0.3℃；±2.5%RH
Description

  • Rapid rate of change climate rapid aging test chamber high altitude low pressure test chamber

  • What is an ALTITUDE TEST CHAMBER ?

  • An altitude chamber combines temperature and low-pressure altitude with optional humidity to test basic components or sub-assemblies for a variety of industries, such as defense, aerospace, avionics, automotive, electronics and others.

    Here are two common appliations of an altitude test chamber :

  • Testing of avionics or other aerospace equipment to simulate actual conditions it might experience

  • Simulation of high-altitude conditions like might be found in mountainous regions and plateau

    And such an altitude test chamber is especially important for defense and aerospace applications where pressure and vacuum conditions are even more intense.

    ATMARS can provide custom-built altitude chambers for simultaneous testing of temperature, low-pressure altitude and optional humidity conditions.

    Our altitude/temperature and altitude/temperature/humidity chambers offer performance flexibility and reliablility for today's mixed-environment testing requirements with an overall temperature range of -70°C to +150°C, optional humidity capabilities of 20% to 98% RH and altitude up to 200,000 feet.

    Altitude Chambers Key Specifications:

  • Workspace Volume: 250L, 500L, 800L, 1000L to walk-in/drive-in sizes

  • Temperature Range: -70°C to 150°C (at standard atmospheric pressure)

  • Optional Humidity Range: 20% to 98% RH (optional humidity control when altitude system is off)

  • Pressure Range: 0.5KPa to 101.325 KPa (standard atmospheric pressure)

  • Standard Altitude Range: site level to 100,000 feet (30,480m / 8.28 mm Hg / 8.28 Torr)

  • Optional Altitude Range: site level to 150,000 feet (45,720m / 1.10 mm Hg / 1.10 Torr) site level to 200,000 feet (60,960m / 0.169 mm Hg / 0.169 Torr)

  • Optional extended ranges are also available to simulate sea level testing when your site is significantly above sea level

    Model
    800D
    Performance Temperature range -70℃ ~ +150℃
    Temperature fluctuation ±0.5℃(at a steady temperature)
    Temperature deviation ≤±2.0℃
    Temperature uniformity ±2.0℃
    Humidity range 20% RH~98% RH (at Atmospheric pressure)
    Humiditu fluctuation ±2.0% RH(at Atmospheric pressure)
    Humidity deviation ≤±1.0% RH
    Cool-down rate 0.7℃~1.0℃/min
    Pressure range Atmospheric pressure to 0.5kPa
    Pressure deviation ±2kPa,When ≥40kPa, ±0.1kPa,When ≤4kPa
    ±0.5kPa,When 4kPa~40kPa
    Depressurization rate ≤30min,when between Atmospheric pressure and 1kPa
    Pressure recover rate 10kPa/min adjustable
    Workspace volume 800L
    Workspace dimensions
    (WxDxH)mm     		800x1000x1000
    Exterior dimensions
    (WxDxH)mm     		1250x2400x2300
    Material Interior Stainless steel (SUS304)
    Exterior Cold-rolled steel with powder coated surface
    Seal Imported silicone seal
    Insulation Expanded foam & fiberglass
    System Heating Nichrome resistance wire heater
    Refrigeration German GEA cascade semi-hermetic compressors
    Air-cooled or Water-cooled cooling mode for option
    Zero Ozone Depletion Potential (ODP) refrigerant - R404A / R23
    Cooling mode Water-cooling
    Temperature control mode Balanced Temperature& Humidity Control System(BTHC)
    Controller Display
    Operating mode
    Memory capacity
    Control tolerance
    Temperature sensor input
    Communication interface    		 TFT true color LED touch-screen;
    Program and setpoint operating mode;
    Program capacity up to 127 programs, each 999 hours, maxiumum 32,000 cycles;
    Temperature measuring range: -90.00℃ to 200.00℃, tolerance: ±0.20℃;
    Supports multiple sensor inputs such as T type, PT100;
    Comes with USB interface, supports RS-485, LAN and others
    Power requirement 18.5KW
    Noise level ≤70dB (A-weighted sound pressure level measured at a distance of 1.0 meter)
    Allowable ambient conditions Temperature: +5℃ to +35℃;
    Relative humidity: ≤85%RH (No condensation);
    Air pressure: 86kPa to 106kPa
    Electrical supply AC 380 (1±10%)V (50±0.5)Hz 3 phase 4 wire + ground wire

Rapid Rate Change Aging Test Chamber , Low Pressure High Altitude Test Chamber
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency

- Climatic and refrigerating chambers, cold treatment chambers;

- A variety of industrial and laboratory drying ovens;

- Testing temperature and climatic equipment;

- Muffle and chamber furnaces;

- Various equipment under the order according to the customer's specifications.
