Specifications
Brand Name :
GSKA
Model Number :
Transportation Bounce Test System
Certification :
CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Max. Load (kg) :
2000kg
Brand :
GSKA
Displacement (mm) :
25.4mm
Specification :
UL, CE, ISO9001, CCC, RoHS
Working Table Size (mm) :
2700×1800mm
Consumption Power (kVA) :
20kVA
Working Environment :
Temperature Range 0～40℃, Humidity≤80% (no condense)
Power :
AC 380V ±10% 50Hz
Description

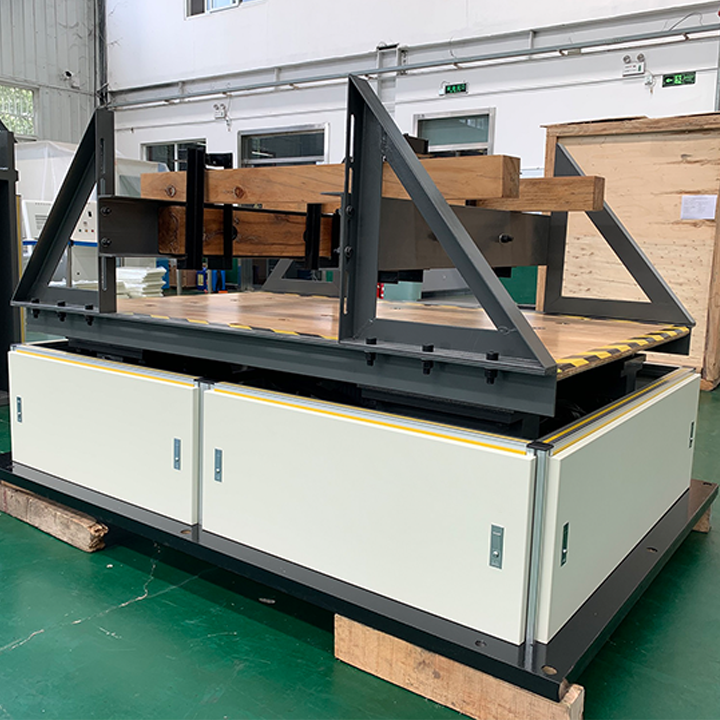

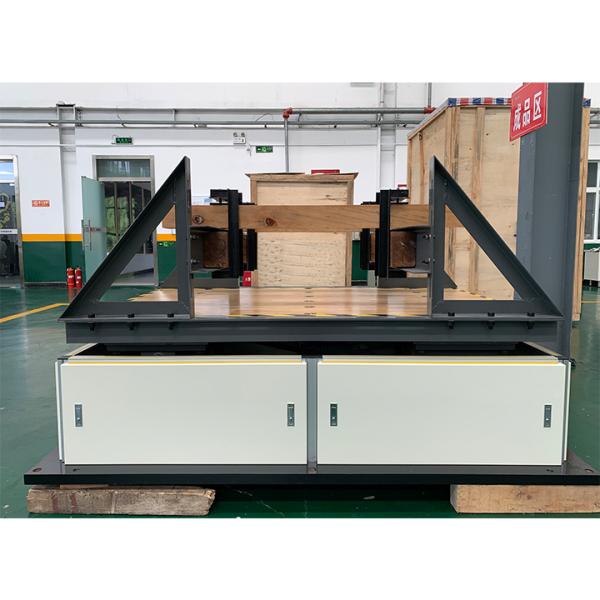

Vibration Test Bench For Transportation Simulation Bump Table OEM

Product description:

Bounce testing simulates the constant loose cargo state during truck transport. Often times, containers carrying military and civilian hardware (such as: medical supplies, electronics, weaponry, communication devices) travel for extended periods of time and must be transported off-road. All of these items must maintain functionality upon arrival at their destinations.

The International Safe Transit Association (ISTA) developed a civilian package test procedure resembling the military test: 1A for products weighing less than 150 lb (68 kg) and 1B for over 150 lb (68 kg). Additional tests in subsequent procedures such as 1C, 1D, 2A and further combine the loose cargo basic test with atmospheric conditioning and other factors.

MIL-STD-810 and ISTA Procedures 1A and 1B offer package test procedures for packages subjected to repeated vibration (bouncing Testing) for a distance of up to 150 miles (240 km), while unrestrained and repeatedly colliding with other cargo and the walls and floor of a four-sided compartment.

Technical Specifications:

Model

Parameters

 GSKA51－100 KGSKA51－200 GSKA51－500 GSKA51－1000 GSKA51－2000

Max. Load

(kg)

 100 200 500 1000 2000

Displacement

(mm)

 25.4
Frequency 2~5Hz (120~300RPM)
Test Motions Rotary

Working Table Size

(mm)

 1700×1200 1900×1300 2000×1500 2700×1650 2700×1800
Height of Specimen COG(mm) ＜500 ＜600 ＜700
Consumption Power (kVA) 8 10 12 15 20
Weight (kg) 1600 2000 3500 5000 8500

Working

Environment

 Temperature Range 0～40℃,humidity≤80% (no condense)
Standards

ISTA-1A, 1B, 1C, 1D, 2A, 2B, 6-FedEx-A, 6-FedEx-B; ASTM-D999; ISO-2247; MIL STD-810G; FED-101

OEM Vibration Test Bench , Transportation Simulation Bump TableOEM Vibration Test Bench , Transportation Simulation Bump Table

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
