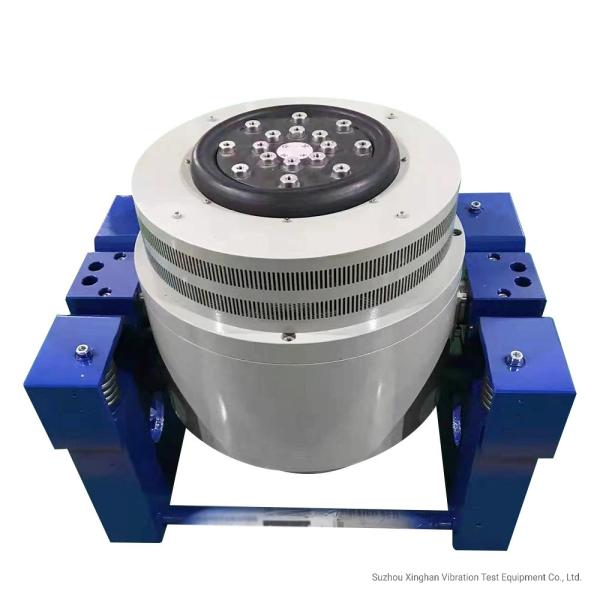

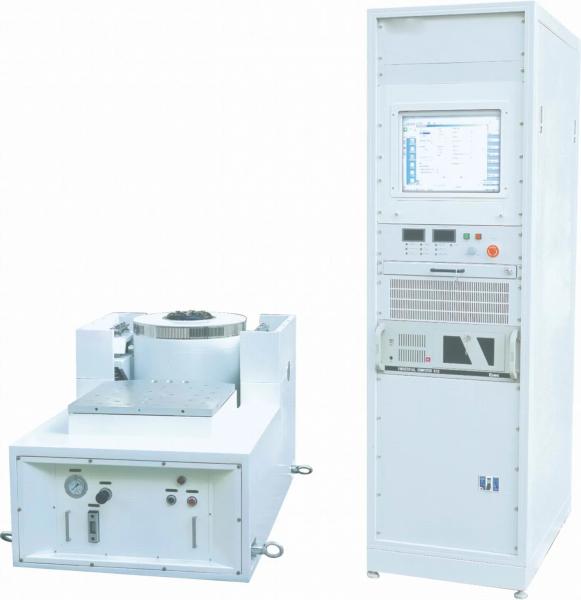

Low Frequency Transport Vibration Test Equipment Horizontal / Vertical
Low Frequency Transport Vibration Test Equipment Horizontal / Vertical
Low Frequency Transport Vibration Test Equipment Horizontal / Vertical
Low Frequency Transport Vibration Test Equipment Horizontal / Vertical
Specifications
Brand Name :
GSKA
Model Number :
Vibration Testing Machine
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Direction of Vibration :
Horizontal or Vertical
Power Source :
AC380V
Cooling Method :
Air Cooling
Material :
Metal
Load Way :
Electronic Load
Control :
Computer Control
Description

Low Frequency Transport Vibration Test Equipment Horizontal / Vertical

Features:


Large loading capacity, the maximum displacement can be reached at 51MMP-P, low working frequency (2HZ)
It can meet the requirements of the sinusoidal vibration test method (fixed frequency or swept frequency) for the basic test of international transport packages.


The table body is guided by hydraulic wheels and linear bearings with low axial rigidity


Air spring support, large load capacity, good low frequency characteristics, high stability

Technical indications/Size

GSKA
-150

GSKA
-200

GSKA
-300-1

GSKA
-300

GSKA
-600-1

GSKA
-600

GSKA-
1000-1

GSKA-
1000-2
major indications of system Maximum sinusoidal excitation force (N) 1470 1960 2940 2940 5880 5880 9800 9800
Rated frequency range (Hz) 2-2500 2-2500 2-2500 2-2500 2-2500 2-2500 2-2500 2-2500
Rated unloaded acceleration (M/S2) 184 245 367 346 490 490 1020 1020
Rated speed (M/S) 0.8 1.2 1.1 1.2 1.1 1.45 1.4 1.8
Rated displacement (mmp-p) 40 40 40 40 51 51 51 51
Maximum loading test (KGS) 140 140 140 140 300 300 140 140
Power consumption (KVA) 5 6 7 8 11 14 18.5 20.5
Voltage (V) 380V±10% AC50Hz
Vibration bench model GSKA-200 GSKA-200 GSKA-300 GSKA-300 GSKA-600 GSKA-600 GSKA-1000 GSKA-1000
Mass of moving part(kg) 8 8 8 8 12 12 9.5 9.5
Bench size(mm) Φ230 Φ230 Φ230 Φ230 Φ230 Φ230 Φ200 Φ200
Bench weight(kg) 720 720 720 720 1050 1050 950 950
Bench body size(L*W*H)(mm)

785*495
*600

785*495
*600

785*495
*600

785*495
*600

910*740
*770

910*740
*770

910*620
*780

910*620
*780
Power amplifier Model GSKA-1 GSKA-2 GSKA-2 GSKA-3 GSKA-3 GSKA-5 GSKA8 GSKA-10
Maximum output power(KVA) 1 2 2 3 3 5 8 10
Power amplifier weight(kg) 210 210 210 230 230 280 320 340
Power amplifier size(L*W*H)(mm)

545*720
*1625

545*720
*1625

545*720*
1625

545*720*
1625

545*720*
1625

545*720*
1625

545*720*
1625

545*720*
1625
Vibration controller(optional) GSKA-2A GSKA-3A GSKA-2B GSKA-3A
Type of cooling Air cooling
Executive standard GB/T13310-1991,GB2423.10-1995,JJG190-1997,IEO68-2-8,company standard Q/320502SN001-2002
Remark Power amplifier-DA type is liner power amplifier,KA is switching power amplifier.controller-SDVC series is sinusoidal vibration control;RDVC series is random control

Low Frequency Transport Vibration Test Equipment Horizontal / VerticalLow Frequency Transport Vibration Test Equipment Horizontal / VerticalLow Frequency Transport Vibration Test Equipment Horizontal / VerticalLow Frequency Transport Vibration Test Equipment Horizontal / Vertical


Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
