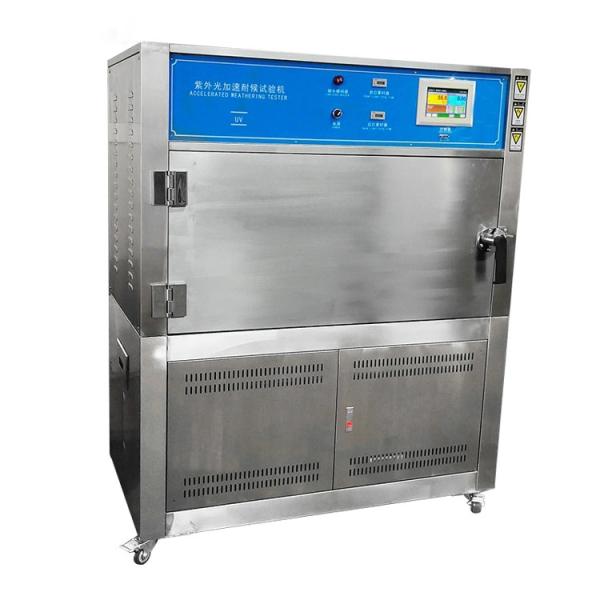

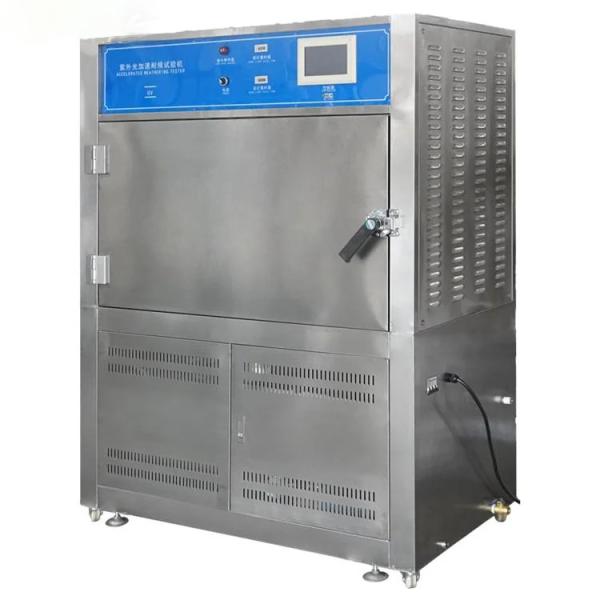

Black Panel Thermometer Uv Aging Test Chamber Air Pressure 86~106kpa
Black Panel Thermometer Uv Aging Test Chamber Air Pressure 86~106kpa
Black Panel Thermometer Uv Aging Test Chamber Air Pressure 86~106kpa
Black Panel Thermometer Uv Aging Test Chamber Air Pressure 86~106kpa
Specifications
Brand Name :
GSKA
Model Number :
UV Weathering Test Chamber
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Humidityrange :
More Than 90%R.H.
Wave Length of Test Light Source :
280~400nm
Humidity Range :
≥75%RH
Air Pressure :
86~ 106Kpa
Power :
Electronic
Material :
Stainless Steel
Description

Black Panel Thermometer Uv Aging Test Chamber Air Pressure 86~106kpa

Application:


UV Accelerated Weathering Test Chamber is designed and manufactured for simulate heat and ultraviolet radiation of the sun, rain and dew, to inspect and predict the aging resistance of the product according to the testing result, and is helpful to optimize the products. the testing type damage include: bleaching, discoloration, gloss loss, powder, crack, turbidity, bubble-based, strength decline and oxidation.

It's widely used in the industry, such as coating, printing ink, paint, resin, plastics, print, packing, motor van, cosmetic, metal, electron, galvanization, medical, and so on.

Product description:

Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

Specification:

Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters
Model GSKA-UV-280
Internal Dimension
W*H*D (cm)		 115*50*40
External Dimension
W*H*D (cm)		 150*150*55
Applicable Standard GB/T16422,GB/T5170.9
Temperature Range R.T.+10degree C~+70degree C
Temperature Fluctuation ±0.5degree C
Humidity Range ≥95%R.H.
Environmental Temperature
for Use		 +5degree C~+35degree C
Test Light Source UVA,UVB UV light
Wave Length of Test light
Source (nm)		 280~400
Center Distance between
Sample and Tube (mm)		 50±2
Center Distance Between
Tubes (mm)		 75±2
Material of Internal Case Stainless steel with sanding polish
Material of External Case Stainless steel with sanding polish or painting coated
Heating and Humidifier Electric-heat type steam generator ,heating and humidification
Safety System Operation Interface Digital smarts touch key input (Programmable)
Running Mode Program/constant running type
Input Black panel thermometer.PT-100 Sensor
Standard Configuration 1 pc Stainless steel shelves
Safety Configuration Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection
Power AC220V 1phase 3 lines, 50HZ

Black Panel Thermometer Uv Aging Test Chamber Air Pressure 86~106kpa

​

Our advantage:


1.Professional technology support.


2.Full experience of large numbers containers loading in Chinese sea port.


3.Fast shipment by reputed shipping line.


4.Best service after shipment with emails.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products

More produced:

1. Vibration Testing Machine

2. Industrial Drying Oven

3. Drop Weight Impact Testing Machine

4. Battery Short Circuit Tester
