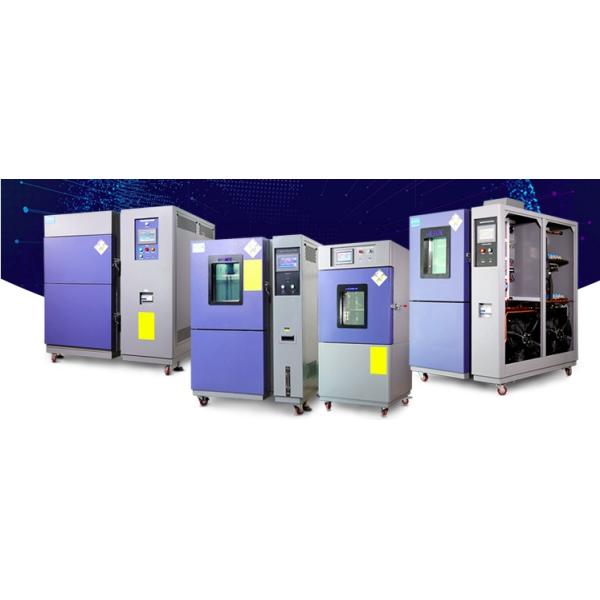

Programmable Thermal Shock Chamber
Programmable Thermal Shock Chamber
Specifications
Brand Name :
GSKA
Model Number :
Thermal Shock Chamber
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Casters :
Easy mobility and Safe
Impact Recovery time :
(-40)℃~(+150)℃≤5min
Temperature fluctuation :
±1.0℃
Temperature uniformity :
±2.0℃
Customized support :
OEM
Power :
220V , 50Hz
Condenser :
Water-cooled condensing agent
keyword :
Thermal Shock Chamber
Description

Stainless Steel Housing High And Low Temperature Liquid Thermal Shock Test Chamber For Laboratory​

Heater

1. Heat chamber:nickel-chromium alloy heater
2. Cooling chamber:nickel-chromium alloy heater
3. Control of heaters:SSR(solid-state relay)

Material

1. Material of inner chamber: SUS304 stainless plate. Thickness: 2.0mm
2. Material of bucket: SUS304 stainless
3. Insulation material: Rigid Polyurethane Foam + glass fiber

Feature:


1. Faster temperature change rate.
2. Quick temperature recovery, available for faster shock cycle.
3. Cable port available for data acquisition.
4. RS485 communication, Ethernet, available for computer remote control
5. Programmable

Application:

For electrical, electronics and machine parts to cold test, the temperature gradient through rapid changes in conditions or the suitability test. Especially suitable for electrical and electronic products, environmental stress screening options (ESS) test.

Specifications:

Test zone size W*H*D(mm) 200*350*300*2Bath 260*350*450*2Bath
Test zone size W*H*D(mm) 1140*1785*1240mm 1200*1785*1320mm
Performance Hot bath Preheat temperature range +80℃~+200℃
Temperature fluctuation ±2℃
Temp.heat-up rate Ambient temp.to+150℃ within 90min
Temp.pull-down rate +150℃ to +60℃ within 60min
Cold bath Precool temperature range -65℃~0
Temperature fluctuation ±2℃
Temp.heat-up rate -65℃ to 0 within 60min
Temp.pull-down rate Ambient temp.to -65℃ within 120min
System Circulation system Sirocco fan
Heating system SUS#304 stainless steel high-speed heater
Cooling system Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Controller TEMI990,8226,8227,8229
Thermal shock range -65.00℃~00.00℃/+600.00℃~150.00℃
Testing time 5min 5min
Transfer time Approximately 10 seconds
Temp.resolution 0.1℃ / 1 min
Specimen Basket size(mm) 100*180*200mm 160*180*350mm
Specimen basket load capacity 1C 2Kg 1C 5kg
Controller Color TFT LCD panel(6.5inch)
Power supply AC 1Ψ 220V;3Ψ 380V 60/50Hz


Programmable Thermal Shock Chamber

Service:


1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades

More produced:

Temperature Humidity Test Chamber
Walk-in Aging Chamber
Environmental Test Chambers
Thermal Shock Chamber
Fast Temp. Change Test Chamber
Vibration Shaker
Environmental Vibration Chamber
Mechanical Shock Tester
UV Chamber
Xenon Chamber

We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
