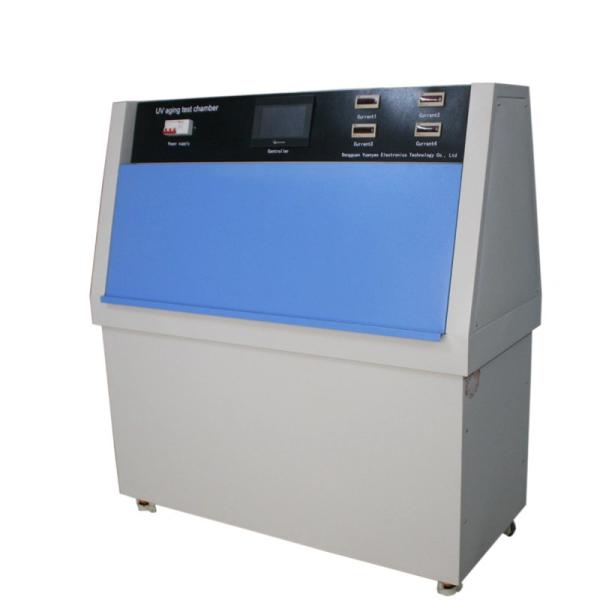

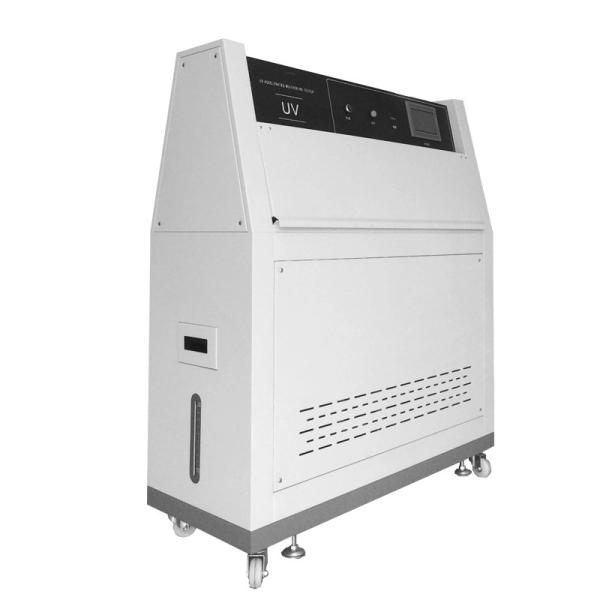

220V PID UV Weathering Test Chamber 40W UV Lamp Testing Equipment
220V PID UV Weathering Test Chamber 40W UV Lamp Testing Equipment
220V PID UV Weathering Test Chamber 40W UV Lamp Testing Equipment
220V PID UV Weathering Test Chamber 40W UV Lamp Testing Equipment
Specifications
Brand Name :
GSKA
Model Number :
UV Weathering Test Chamber
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Light/ lamp :
UV lamp 40W
Keyword :
UV Weathering Test Chamber
Material :
Stainless Steel
Lamp Power :
40W/Unit, 8PCS For Unit Chamber
Humidity range :
≥75%RH
Air pressure :
86~ 106Kpa
Brand :
GSKA
Power :
Electronic
Description

220V PID UV Weathering Test Chamber 40W UV Lamp Testing Equipment

Features:


1. UV aging test machine can do two kinds of testing: aging and anti-yellowing.


2. Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.


3. Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.

Characteristics:

1. The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.

2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.

3. The door rotating up does not interfere with the operation and the tester takes a very small space only.

4. It’s unique condensating system can be contented by tap water.

5. The heater is under the container rather than in the water, which is long life, easy to mainten.

6. The water level controller is outside the box, easy to monitor.

7. The machine has truckles, convenient to move.

8. Computer programming is convenient, automaticly alarming when incorrect operated or faulted.

9. It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).

10. It has Chinese and English instruction book, convenient to consult.

11. Divided into three types: common, light irradiance controlling, spraying

Specifications of Aging UV Test Chamber:

Studio Size 400W×1140D×390Hmm
Outside dimension 500W×1300D×1360Hmm
Materials Inside and Outside SUS#304 stainless steel
Temperature range RT+10~70°C
Temperature uniformity ±2°C
Temperature fluctuation ±0.5°C
Temperature control PID SSR control
Humidity range: ≥90%RH
Controller Korean TEMI 880 programmable controller
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Illumination, condensation and water spray test cycle is programmable
Lamp power 40W/Piece
Distance from sample to lamp 50±2mm (adjustable)
Centre distance between the lamp 70mm
Irradiance 1.0W/cm2
Wavelength ultraviolet light UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime)
Effective irradiation areas 640×1140mm
Irradiation black panel temperature 50°C~70°C
Standard Specimen Size 75×150mm or 75×3000mm (special specitications to be described in the contact)
Required water depth for water channel 25mm, automatically control
Testing time 0~999H, adjustable
Power 220V/50Hz /±10% 5KW
Protection system Overload short circuit protection, over temperature protection, water lackin


220V PID UV Weathering Test Chamber 40W UV Lamp Testing Equipment


We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency

Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
