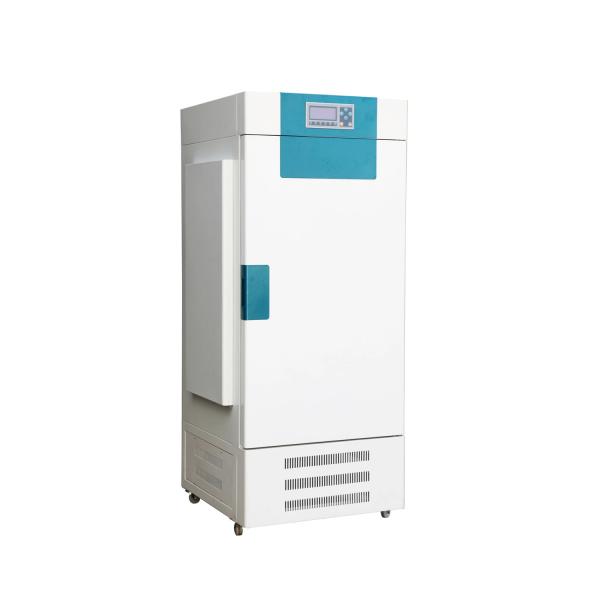

Programmable 220V Thermal Shock Tester , Rustproof Temperature Cycling Test Chamber
Programmable 220V Thermal Shock Tester , Rustproof Temperature Cycling Test Chamber
Programmable 220V Thermal Shock Tester , Rustproof Temperature Cycling Test Chamber
Programmable 220V Thermal Shock Tester , Rustproof Temperature Cycling Test Chamber
Specifications
Brand Name :
GSKA
Model Number :
Climatic Test Chamber
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Cooling Type :
Air Cooling Or Water Cooling
Controller :
Programmable LCD Touch Screen
Temperature fluctuation :
±1.0℃
Temperature uniformity :
±2.0℃
Customized support :
OEM
Power :
220V , 50Hz
Condenser :
Water-cooled condensing agent
Controller resolution :
±0.3℃；±2.5%RH
Description

Programmable 150L High Accuracy Climatic Test Chamber -40℃ To 150℃ Shock Temperature

Product Description


One kind of environmental test equipment, applicable to temperature-humidity test of mini electrical, instrumentation, automotive, aerospace, electronic chemicals, materials components, and aging test, the temperature and humidity chamber adopts the most reasonable structure and most stable control method that adds value to its good appearance, easiness to operate, safeness and high-precision temperature and humidity control. It is ideal for temperature and humidity test with GB,GJB,ASTM standards met. In testingprocedure, the chamber achieves fully-automatic control of cooling, heating,dehumidification, humidification and adding water, which enable the chamber tooperate in comprehensive environmental test with temperature-humidityinvolved.

Corresponding Standard

GB11158 GB10589-89 GB10592-89

GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001

GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93

ASTM D1735 EIA - 364-59 IEC60068-2-1.1990

IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C

Shock Temperature ragne -65°C~150°C
Heating up time RT~200°C about 35min
Cooling down time RT~-70°C about 90min

Temp recover time/

change time

 ≤5min / ≤10sec
Temp control accuracy/ ±0.5°C / ±2.0°C
distribution accuracy
Inner materials SUS 304# stainless steel plate for inner chamber,and stainless steel plate
+ spray painting for external chamber.
Insulation materials High-temperature high-density amino acid ethyl ester foam insulator material.
Systems P.I.D+S.S.R+Microcomputer balanced temperature control system.
Cooling systems Semi-hermetic two-stage compressor (water-cooled) /
hermetic two-stage compressor (air-cooled).
Safety devices Fuse switch, high and low pressure protection switch compressors,
refrigerant pressure protection switch failure warning system, electronic siren.
Fitting Outlook window (special purchase), the upper and lower adjustable
compartment two energized measured line hole, casters,level bracket.
Power 3 phase AC380V 50HZ/60HZ
Controller Tanwan TATO or TH900C
Compressor Germany / Bock Brand

A humidity chamber is a mechanism that examines how products react when exposed to variations in humidity. This type of environmental testing is used by manufacturers to test the various parameters of their products in the harshest of conditions.

The purpose of humidity chambers is to test the influence of varying environments on products to determine the length of their usefulness and at what point they will fail. The collected data assists engineers in adjusting their designs and selecting more resilient materials.

The different varieties of humidity chambers allow testing to be completed in a static or dynamic state depending on the required data and the type of product. Humidity chambers are used as extended testing chambers to determine a specimen‘s reaction to elevated moisture conditions when exposed for weeks or months.

Programmable 220V Thermal Shock Tester , Rustproof Temperature Cycling Test Chamber

We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency

We produce:
- Climatic and refrigerating chambers, cold treatment chambers;

- A variety of industrial and laboratory drying ovens;

- Testing temperature and climatic equipment;

- Muffle and chamber furnaces;

- Various equipment under the order according to the customer's specifications.

Pre-sale service:

1. One-on-one pre-sales consulting service to answer your questions

2. Recommend the right products for your needs

3. Visit factory support

After-sale service:

2. We have a professional after-sale solution team to solve your probelm

3. Provide technology support

4. If necessary, home repair
