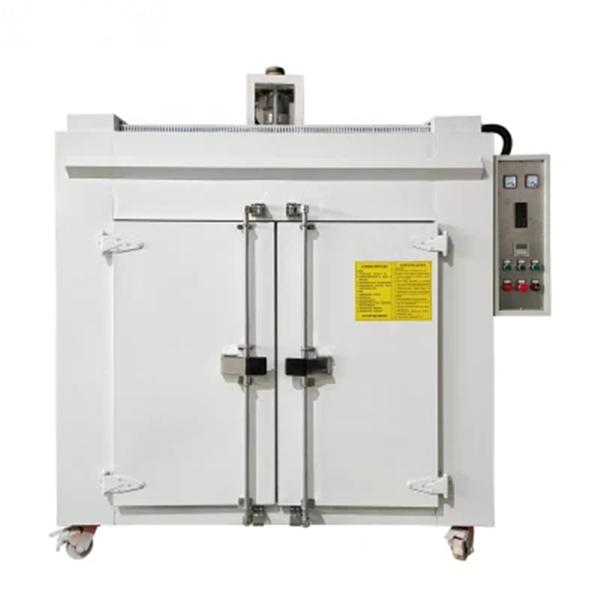

Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Specifications
Brand Name :
GSKA
Model Number :
Industrial Drying Oven
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Weight :
800kg
Chamber Size :
1500X1200X1200m
Transport Package :
Standard Wooden Case
Temperature Resolution :
0.1
Temperature Uniformity :
±2℃
Temperture Range :
RT+10℃～500℃
Brand :
GSKA
Power :
Electronic
Description

Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven

Industry usage:

DYG series special silicone rubber industry is the role of secondary vulcanization oven of silicone rubber products in an environment of high temperature secondary sulfide, the sulfide in the process of sulfide has a pungent odor, using exhaust fan to exclude outside the workshop at the top of the strong, avoiding the accumulation, in the formation of crystals attached on the inner wall of the oven, and the sealing strip.


Main Feature of vacuum drying oven price:

The temperature controller was imported Japan, the compressor was imported French Tecumesh.All the parts of the machine are rugged and durable. Using high quality cold-rolled steel plate, coated with electrostatic powder spraying; the coat is hard and firm, with strong rust resistance.The studio is made up of high quality stainless steel plate, which has round shape and is smooth ,fluent and easy to clean.Full of superfine glass wool thermal insulation material between the box and the studio,what brings good heat preservation. That can effectively guarantee the stability and accuracy of the temperature in the box and the influence to the environment.

A vacuum drying oven is widely used in biochemical, chemical engineering, pharmaceutical, medical care and public health,agricultural scientific research, environmental protection and other research areas. It is applicable for powder drying, baking,as well as the disinfection and sterilization of various glass containers. In particular, it is suitable for rapid and efficient drying treatment of heat-sensitive, easily decomposed, easily oxidized materials and complex components.

Can be customized:

Industrial Drying Oven

Inner Size

W*H*D

(cm)

External Size

W*H*D

(cm)

Heating

up

Time

Accuracy

(°C)

Uniformity

(°C)

 Power

Rate of

work

(kw)
45×40×40 66×92×55

RT~100°C

About 10min

 ±0.3 ±1%

220V

Or

380V

 3.5
50×60×50 70×125×65 4.5
60×90×50 80×156×65 5.5
80×100×60 100×166×75 8
90×120×60 110×186×75 10
140×120×60 160×186×75 12
160×140×80 180×206×97 14
180×140×100 200×200×118 16
This model is based on your requirements, including the design.

Best material and stable performance:

The outer shell is made of high-quality steel plate, the surface is electrostatically sprayed, the inner liner is made of
galvanized sheet, and the outer casing is filled with thermal insulation material. The silicone sealing strip is used between the box door and the box body, which is safer to use and has a longer service life.

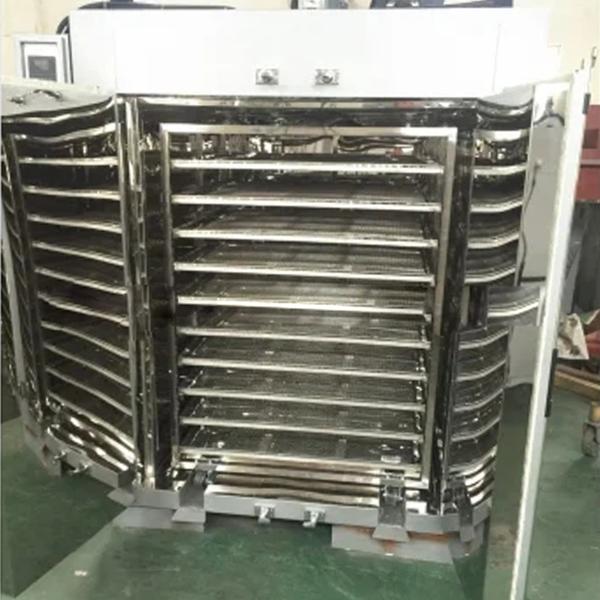

Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven
Industrial Silicone Rubber Electric Heating Hot Air After Drying Vulcanized Oven

Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
