Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz
Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz
Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz
Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz
Specifications
Brand Name :
GSKA
Model Number :
Walk In Test Chamber
Certification :
CE SGS ROHS UL CE
Place of Origin :
Dongguan China
MOQ :
1set
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 Set / Sets per Month
Delivery Time :
10-60days after confirmed payment or by contract stipulation
Packaging Details :
Export package
Temperature Range :
-40degree to 150degree
Keyword :
Humidity Cycling Walk In Test Chamber
Viewing Window :
The Transparent Electro Thermal Hollow Toughened Glass
Heat Up Rate: :
About 3℃~5℃/min； Can Be Custom
Cooling Rate :
0.7c~1.0c/Min (Average)
Chamber Materials :
SUS#304 Stainless Steel For Internal Chamber
Brand :
GSKA
Test time :
1~9999 minutes(arbitrary setting)
Description

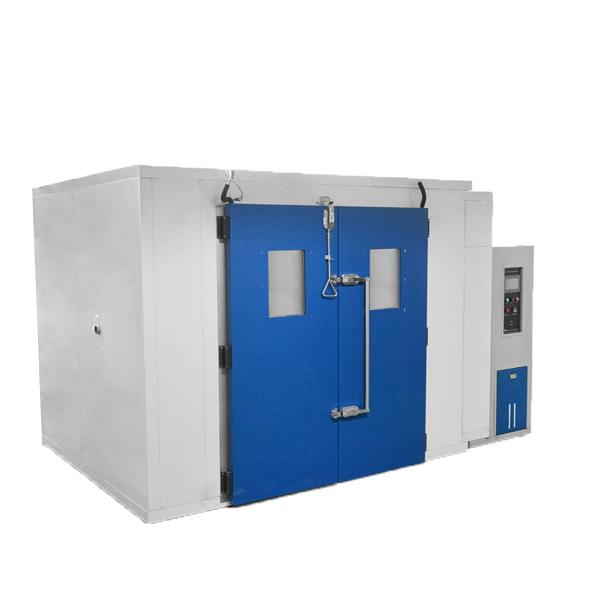

Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz

Enter type characteristics:

1, walk-in laboratory test case base using 8 # channel steel welding net type structure, the bearing capacity is strong, can avoid the bottom concave and convex and cracking phenomenon,

2, large double open the door and small slope design convenient bulk products and cart in and out of the laboratory, equipped with large view window and multiple sets of indoor LED explosion-proof lamps, convenient observation products.

3, walk-in laboratory wall is made of stainless steel, outside Box adopts high quality color steel plate, insulation medium for rigid polyurethane foam, walk-in laboratory has many characteristics, such as light and heat insulation effect is good.

4, walk-in laboratory USES positive pressure type ceiling supply air circulation system, high temperature uniformity and stability.

5, open door shake handshandle of inside and outside, so that the test personnel from closed indoor free open the door.

Features:

1. Realize temperature constant value control and program control;


2. The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.


3. With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.


4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.


5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.


6. Customize size/customize indicators/customize various optional features


Introduction:


-40℃ to 150℃ walk in stability test chamber for temp / humidity cycling test give the maximum flexibility in both chamber size and performance for your most demanding temperature/humidity testing requirements. It allows manufacturer to simulate how their products will perform in climate conditions

Technical parameters:

Model GSKA-10028
Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements
Temperature range -40℃~150℃
Humidity range 20%~98%R.H.
Accuracy/uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling time 5.0 °C /minute
Inside material SUS#304 Stainless Steel
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller German Siemens PLC or TH-900C Korea or TEMI
Compressor France's Tecumseh Brand or Germany
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz

Customer Support Services:

Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
