Specifications
Brand Name :
VALUES GLASS
Model Number :
Smart Glass Film
Certification :
Upon Request
Place of Origin :
China
MOQ :
5 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10,000 sq.meter/Month
Delivery Time :
14 Days
Packaging Details :
Plywood Pallet or per request
Name :
Smart Glass Film
Feature :
High Opacity
Color :
Clear, Milky, Grey, Blue, Green, Red, Black
Common Width :
1.0, 1.2, 1.5, 1.8meters
PDLC Film Length :
30 or 50 meters
Power consumption :
5W/sq.meter
Description

PDLC Self-Adhesive Smart Glass Film for Switchable Smart Glass

Smart Glass Film Features and advantages:

  • Transmits only 48% of visible light when in the switched off translucent state, very high opacity.
  • Transmits 76% of visible light in the switched on transparent state, very high light transmission
  • Vary voltage supply controls the light transmission level.
  • Flat-screen rear projection.
  • Vanlong smart glass has been designed and tested for internal applications.
  • It is advisable to use a combination of clear and grey tinted glass for projection. Enhances the clarity of projection
  • Special care and instructions are required during framing and electrical installation of the product.
  • In its transparent state a degree of haze is still apparent. It is recommended that a sample product should be viewed and the performance data be viewed.

Smart Glass Film Description:

Product Name High Opacity Smart Glass Film , Clear Smart Switchable Privacy Film
Raw Material Glass Clear Glass, Ultra Clear Glass
Thickness 5+5mm / 6+6mm
Color Clear, Milky, Grey, Blue, Green, Red, Black
Common Width

Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters)

Self-Adhesive PDLC Film-- 1.0, 1.2, 1.5meters (Max 1.5meters)
PDLC Film Length 30 or 50 meters/roll or per request
Light Transmittance

Clear Glass: >= 82% (ON) / <=8% (OFF)

Ultra Clear Glass: >= 86% (ON) / <=10% (OFF)
Response Time

From OFF to ON: <=50ms

From ON to OFF: <=200ms
Power consumption 5W/sq.meter
Operating Temperature -20 ℃ and 70 ℃
Life Time >=50,000hours
Transformer AC 60V (Suggest to use nominated transformer)
Silicon Glue Neutral (Suggest to use nominated silicon glue to prevent glass corrison)

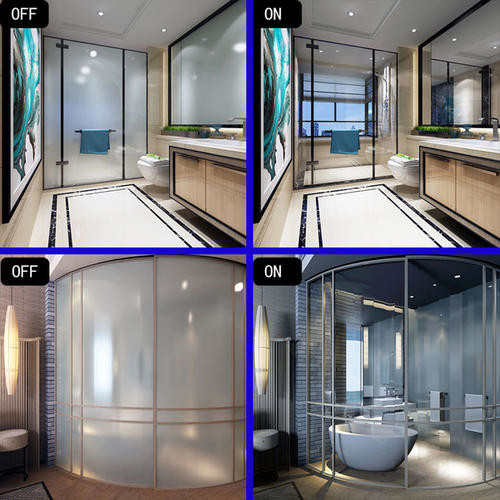

How Does Smart Film Work:

Electric privacy film contains liquid crystals that align with the application of an electrical current, creating transparency, and scatter the light without it, creating opacity. The result is glass that instantaneously becomes private with the flick of a switch, adding unique design value to any space.

Main Application of Smart Film Glass:

Hotels, Service Residence / Condominium’s Washroom
Office meeting room partition
Medical research and laboratory
Command System
Control and monitoring Centre
