Specifications
Brand Name :
OEM
Model Number :
XF-PDLC05
Certification :
CCC/ISO9001/CE/SGCC
Place of Origin :
China, Guangdong
MOQ :
10 square meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 sqm per Day
Delivery Time :
7-15 working days
Packaging Details :
Strong export plywood crates to make sure safety delivery
Product Name :
Safety Tempered Glass
Shape :
Flat or Curve
Controller :
smart, wifi, sound, remote control
Voltage :
Customized as per your local voltage
Situation :
Office, Hospital, Bathroom, Shopping Mall, Window, Conference Room, Bedroom, Hotel
Application :
Windows, partition walls, shower enclosures, etc.
Description

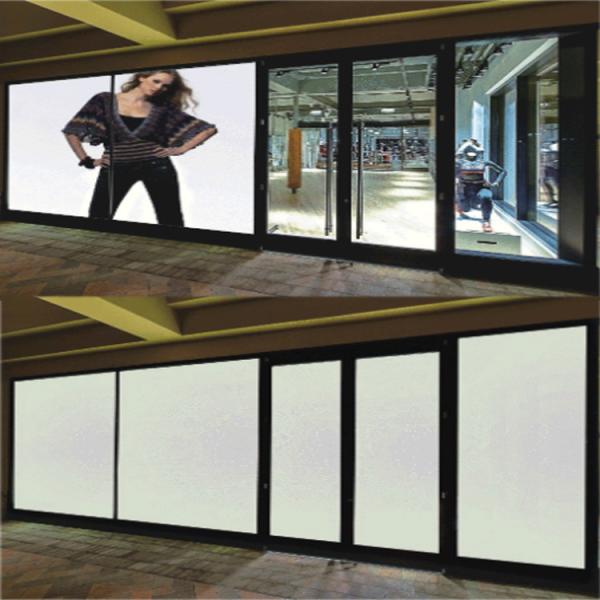

Safety Tempered PDLC Smart Glass In Low-Energy Shopping Mall

PDLC smart glass, that is, polymer dispersed liquid crystal dimming glass, is a kind of high-tech glass that can be switched between transparent and opaque states by electronic control. It is atomized when the power is off, protecting privacy; When electrified, it becomes transparent, allowing light to pass through. Widely used in construction, automobile and other fields, it is favored for its privacy protection, energy saving and aesthetics.

  • Specification

​

Product

PDLC Smart Glass

Thickness

pdlc smart film thickness 0.5mm
pdlc smart glass thickness 11mm
Size
pdlc smart film max size 1800x50000mm
pdlc smart film glass max size 1800x4000mm

Function

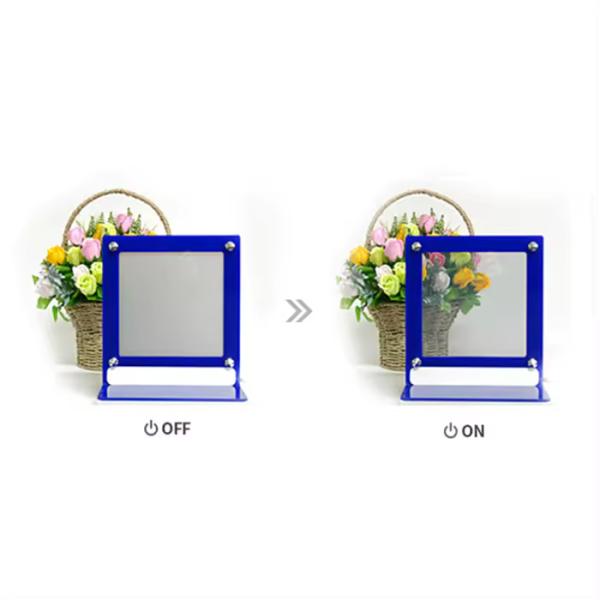

Can control from opaque to transparent via the switch, which when the power is off, it is opaque, and when the power is on, it is transparent

Visible Light Transmittance

>85%(ON), >50%(OFF)

Parallel Light Transmittance

>80%(ON), <2%(OFF)
Power Consumption <5W/M2(ON)
Switch Frequency >80 million times

Application

Windows, partition walls, shower enclosures, etc.

Delivery time

7-15 days

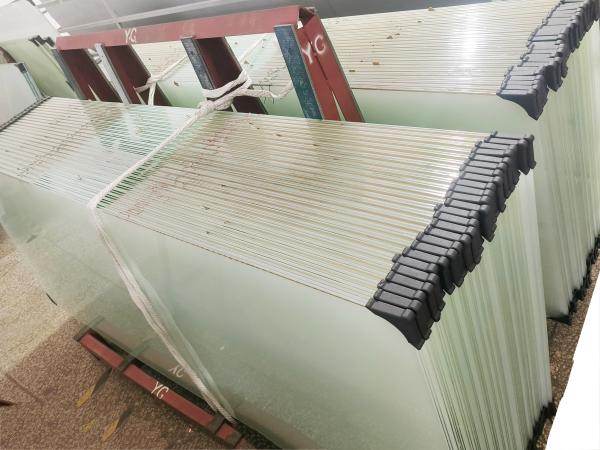

Packing

Strong export plywood crates to make sure safety delivery


PDLC glass, that is polymer dispersed liquid crystal dimming glass, has the following characteristics

Environmental protection characteristics: PDLC glass can shield more than 98% ultraviolet light, protect indoor furnishings from fading and aging due to ultraviolet radiation, and protect people from skin diseases caused by excessive ultraviolet radiation.

Sound insulation characteristics: The dimming film and film in the middle of PDLC glass have sound damping effect, which can effectively block all kinds of noise up to 38 dB or even exceed the hollow sound insulation glass.

Thermal insulation performance: the thermal insulation performance reaches above Grade 2.

Convenient installation: the film is not limited by the size and shape of glass, and can be attached quickly, which is purely manual.
