Low E Smart PDLC Glass Customized PDLC Dimming Glass Privacy Protection Safety PDLC Window Film For Low Energy Consumption Office
Low E Smart PDLC Glass Customized PDLC Dimming Glass Privacy Protection Safety PDLC Window Film For Low Energy Consumption Office
Low E Smart PDLC Glass Customized PDLC Dimming Glass Privacy Protection Safety PDLC Window Film For Low Energy Consumption Office
Low E Smart PDLC Glass Customized PDLC Dimming Glass Privacy Protection Safety PDLC Window Film For Low Energy Consumption Office
Low E Smart PDLC Glass Customized PDLC Dimming Glass Privacy Protection Safety PDLC Window Film For Low Energy Consumption Office
Low E Smart PDLC Glass Customized PDLC Dimming Glass Privacy Protection Safety PDLC Window Film For Low Energy Consumption Office
Specifications
Brand Name :
OEM
Model Number :
XF-PDLC06
Certification :
CCC/ISO9001/CE/SGCC
Place of Origin :
China, Guangdong
MOQ :
10 square meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 sqm per Day
Delivery Time :
7-15 working days
Packaging Details :
Strong export plywood crates to make sure safety delivery
Product Name :
PDLC Dimming Film/ Glass
Shape :
Flat Or Curve
Controller :
Smart, Wifi, Sound, Remote Control
Voltage :
Customized As Per Your Local Voltage
Situation :
Office, Hospital, Bathroom, Shopping Mall, Window, Conference Room, Bedroom, Hotel
Application :
Windows, partition walls, shower enclosures, etc.
Description

Low E Smart PDLC Dimming Glass For Low Energy Consumption Office

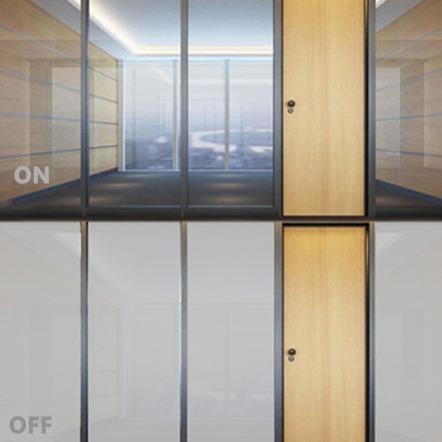

PDLC smart glass, that is, polymer dispersed liquid crystal dimming glass, is a kind of high-tech glass that can be switched between transparent and opaque states by electronic control. It is atomized when the power is off, protecting privacy; When electrified, it becomes transparent, allowing light to pass through. Widely used in construction, automobile and other fields, it is favored for its privacy protection, energy saving and aesthetics.

  • Specification

​

Product

PDLC Smart Glass

Thickness

pdlc smart film thickness 0.5mm
pdlc smart glass thickness 11mm
Size
pdlc smart film max size 1800x50000mm
pdlc smart film glass max size 1800x4000mm

Function

Can control from opaque to transparent via the switch, which when the power is off, it is opaque, and when the power is on, it is transparent

Visible Light Transmittance

>85%(ON), >50%(OFF)

Parallel Light Transmittance

>80%(ON), <2%(OFF)
Power Consumption <5W/M2(ON)
Switch Frequency >80 million times

Application

Windows, partition walls, shower enclosures, etc.

Delivery time

7-15 days

Packing

Strong export plywood crates to make sure safety delivery

The main difference between PDLC smart glass and PDLC smart film lies in their application forms and installation methods

Application form:


PDLC smart glass: It is a laminated safety glass made by sandwiching PDLC dimming film between two pieces of glass and processing at high temperature and high pressure.It is a prefabricated glass product, which is usually used for building windows, partitions or side windows and skylights of automobiles.


PDLC smart film: it is a kind of adhesive film product, which can be attached to the existing glass surface to make it have dimming function. This kind of film is relatively flexible and can be used in renovation projects, that is, to realize dimming function without replacing the original glass.

To sum up, PDLC smart glass is a prefabricated laminated glass product, and PDLC smart film is a laminating solution that can be installed later. Both of them can provide the same dimming effect, but the application scenarios and installation methods are different.
