Double Glazed Insulated Tempered Glass / Tempered Safety Glass For Airports
Double Glazed Insulated Tempered Glass / Tempered Safety Glass For Airports
Double Glazed Insulated Tempered Glass / Tempered Safety Glass For Airports
Double Glazed Insulated Tempered Glass / Tempered Safety Glass For Airports
Specifications
Brand Name :
YIWO
Model Number :
Insulated Glass
Place of Origin :
Hebei, China
MOQ :
1000 Square Meter/Square Meters
Price :
negotiation
Supply Ability :
1000000 Square Meter/Square Meters per Day
Packaging Details :
wooden crate intereaving with paper. wooden trunk specialized for export
Other Name :
Hollow Glass
Technique :
Tempered Glass
Shape :
Flat
Structure :
Solid
Color :
dark/light green,blue,gray,bronze,pink,black
Specification :
3300*2134 3048*2134 3300*2250 3210*2140 2134*1524 2440*1830 2000*
Function :
Bulletproof Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass
Quality :
A Grade
Description

5+6A+5mm 6+9A+6mm Tempered Double Glazed Insulated Glass With CCC

Products Description:

Double Glazing Glass, also known as Insulating Glass, Insulated Glass and Hollow Glass, is made by two or more layers of Low-E Glass, clear or tinted Reflective Glass or normal clear or tinted Float Glass. The space between the glasses is field with air or argon and sealed with sealants and aluminum spacers. Normally, the glass layer is tempered or laminated to ensure safety.

Features:

1. Thermal performance: Lower U-value (heat conductivity) effect can be enhanced by filling Argon in the air spacer. The building, which used insulated glass, will take the effect of warm in winter and cold in summer. It save the energy fee about 20%-40%.

2. Optical Performance: Flexible to select various light transmittance & solar reflection rate as per the needs.

3. Sound Insulation: General IGU can reduce 30db, if IGU filling with Argon another 5db can be reduced.

4. Sealing: Aluminum frame is formed at one time, but sealant & structural sealant or polysulfide sealant double sealing ensures a good sealing of IGU.

5. Dew point resistance: Less than -65℃, better than Chinese National Standard of -40℃ for IGU dew point.

Specification:

Thickness 1. Air space thickness: 6A; 9A;12A;16A;18A;24A;
2. Glass Thickness(mm):3, 4, 5, 6, 8, 10, 12, 15, 19, 22; 3+3, 5+5, 6+6, 6+8, 8+8, 8+10, 10+10, 10+12, 12+12, 15+15, 19+19 or triple gazing; or multilayer
3. Curved insulate glass is depend on the radius.
Color clear,ultra clear ,f green,dark green,euro grey,dark grey,bronze,etc
Max size 3000*8000mm
Min size 100mm*100mm
Quality Standards CCC (China Compulsory Certification)

Application:

Residential doors and windows, light shed, offices, airports, hotels, air-conditioning system, building walls.

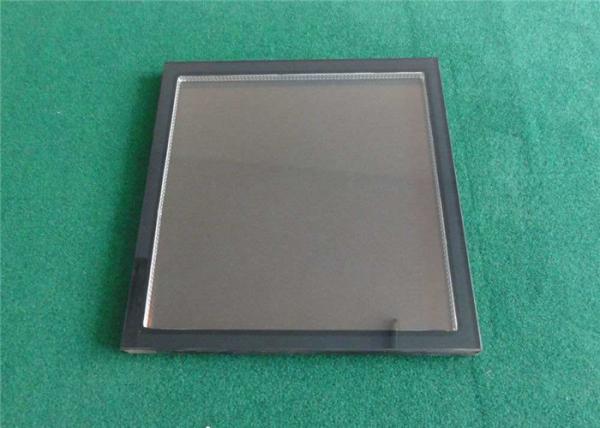

Products Pictures:

Double Glazed Insulated Tempered Glass / Tempered Safety Glass For AirportsDouble Glazed Insulated Tempered Glass / Tempered Safety Glass For Airports

Packaging&Delivery:

Packaging Details: Wooden crate, carton box, plastic film, customized

Delivery Time: 7-15 days after down payment
