High Transmittance Solar Panel Glass , Flat Shape Photovoltaic Transparent Glass
High Transmittance Solar Panel Glass , Flat Shape Photovoltaic Transparent Glass
High Transmittance Solar Panel Glass , Flat Shape Photovoltaic Transparent Glass
High Transmittance Solar Panel Glass , Flat Shape Photovoltaic Transparent Glass
Specifications
Brand Name :
YIWO
Model Number :
Solar GLass
Place of Origin :
Hebei, China
MOQ :
1 Square Meter/ Square Meters
Price :
negotiation
Packaging Details :
packed by strong seaworthy wooden crates
Other Name :
Photovoltaic Tempered Glass
Size :
1634*985mm, 1634*986mm, 1600*2200mm, etc.
Thickness :
3.2mm,4mm
Technique :
Clear Glass, Coated Glass, Frosted Glass, Stained Glass, Tempered Glass, Tinted Glass
Color :
ultra clear, extra clear
Iron ppm :
≤120ppm
Structure :
Solid
Shape :
Flat
Description

3.2mm Low Iron High Transmittance Solar Panel Glass, Photovoltaic Glass

Product description:

Tempered low iron glass is also called high transmittance and low reflectitiy glass, which is a manufactured through coating two to multiple transparent anti-relection layers on single or double sides of glass by advanced vaccum coaing technology.

Specification

Thickness
 3.2mm,4mm
Max.Size 2250*3500mm(annealed),1830*2600mm(tempered)
Size 1220 x 915mm, 1830 x 1220mm,
Customized size
Colors Clear and ultra clear
Package Safety seaworthy wooden and plywood packing with paper interleaved
Applications solar panel and solar water heater
Types 1. Solar patterned glass(tempered or non-tempered)
2. Solar float glass(temoered or non-tempered)

Features

1. Ultra high solar energy transmittance and low light reflectance.

2. Choice of patterns, either Prismatic/Matte or Matter/Matte to suit the specific application

3. The pyramidal patterns can assist in the laminating process during module manufacture, but can be used on the external surface if desired

4. Prismatic/Matte product available with Anti-Reflective (AR) coating for optimal solar energy conversion

5. Available in fully tempered/toughened form to provide excellent strength with resistance to hail, mechanical impact and thermal stress.

6. Easily to be cut, coated and tempered.

Technical Data:

Thickness: 3.2mm 4mm

Visible Light Transmittance: 91.60%

Visible Light Reflectance: 7.30%

Solar Transmittance: 92%

Solar Reflectance: 7.40%

UV Transmittance: 86.80%

Total Solar Heat Gain Coefficient: 92.20%

Shading Coefficient: 1.04%

Performance varied due to different thickness

SIZE: Could be produced the sizes as per the request.

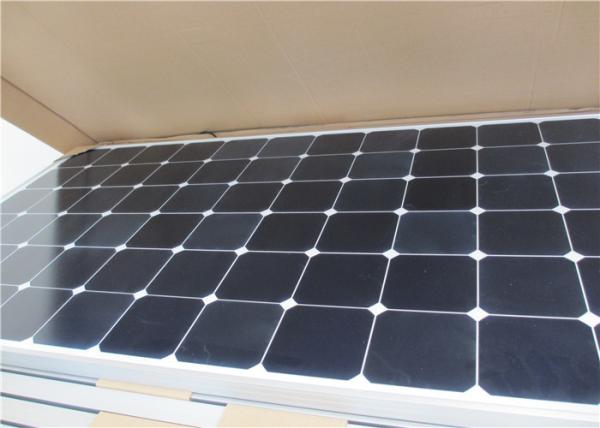

Products Pictures

High Transmittance Solar Panel Glass , Flat Shape Photovoltaic Transparent Glass

High Transmittance Solar Panel Glass , Flat Shape Photovoltaic Transparent Glass

Packaging&Delivery

100% Strong Plywood crates,fresh paper or wood cork between each sheet of glass panel
