3000kg Electric Wire Rope Hoist Cd Md Hanging Construction 3 Ton
3000kg Electric Wire Rope Hoist Cd Md Hanging Construction 3 Ton
3000kg Electric Wire Rope Hoist Cd Md Hanging Construction 3 Ton
3000kg Electric Wire Rope Hoist Cd Md Hanging Construction 3 Ton
Specifications
Place of Origin :
HEBEI ,CHINA
MOQ :
1 SET
Price :
220.00 USD-250 USD /SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets per month
Delivery Time :
10~15 working days, which will be adjusted according to different products and inventory
Packaging Details :
Standard Export Wooden Case
Usage: :
Construction Hoist
Core Components: :
Motor
Max Capacity: :
30Ton
Lift Weight: :
1-10T
Sling Type: :
Wire Rope
Max Lifting height: :
30M
Power supply: :
380V 50Hz Three-phase
Description

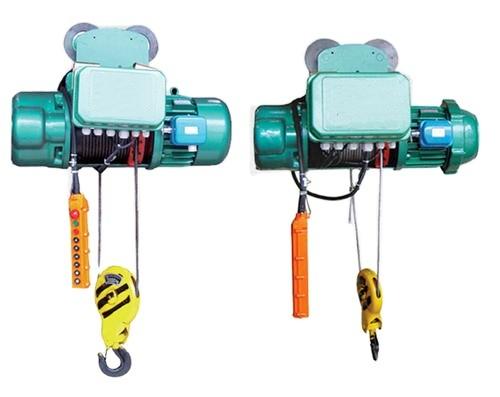

3000kg CD MD Wire Rope Hanging Electric Construction Hoist 3ton Hoisting

1.CD and MD type wire rope electric hoist descriptions:

(1)It is a kind of light and small lifting equipment, which can be installed in single beam crane, bridge crane, gantry crane, cantilever crane, etc. They can meet the requirements of ordinary occasions.

(2)3000kg CD MD Wire Rope Hanging Electric Construction Hoist 3ton Hoisting Crane Cable Winch have the features of compact, light, small-size shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double girder crane, the cantilever crane and the gantry crane. The electric hoist model MD1 with double lifting speed should be used in cases where the hoist model CD1 with single speed cannot meet the requirements for fine adjusting during precision operations

2. Technical parameters of Electric hoist

Model 0.5TON 1TON 2TON 3TON 5TON 10TON
Capacity ton 0.5 1 2 3 5 10
Standard lift m 6-12 6-30 6-30 6-30 6-30 6-30
Lifting Height m/min 88/0.8 88/0.8 88/0.8 88/0.8 88/0.8 77/0.7
Running Speed m/min 20/30
Wire Rope type 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-13-170 6*37-15-200 6*37-15-200
I beam track type 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Loop track minimum Radius m 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage V 380 380 380 380 380 380
Frequency HZ 50 50 50 50 50 50
Phase 3 3 3 3 3 3

3. Advantage of Electric hoist

(1) Type CD1, MD1 a kind of small-lifting equipment

(2) It can be mounted on single beam overhead crane, gantry cranes, jib crane and so on.

(3)as only one normal speed which can satisfy normal application

(4) It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops

(5) Essentially in raising working efficiency and improving working conditions

3000kg Electric Wire Rope Hoist Cd Md Hanging Construction 3 Ton3000kg Electric Wire Rope Hoist Cd Md Hanging Construction 3 Ton
