ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
Specifications
Model Number :
ZLP630/ ZLP800 / ZLP1000
Certification :
CE ISO
Place of Origin :
HEBEI, CHINA
MOQ :
1 SET
Price :
2400 ~ 2800 USD / SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200SETS / MONTH
Delivery Time :
5~10 DAYS AFTER RECEIVING THE PAYMENT
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Material :
Hot galvanized steel / Aluminum
Size :
3*2000 / 2500*690*1180mm
Lifting speed :
~9.5m/min ~8.5m/min
Hoist :
LTD63 / LTD80
Voltage :
220v/415v/380v 50/60HZ 3 PHASE
Power :
1.5KW / 2.0KW
Control panel :
CHNT
Wire rope :
8.3mm/8.6mm / 9.1mm 4*100m
Counter weight :
Cement / iron cast
Warranty :
12 months , some main spare parts are 5 years
Description

High quality series price Steel ZLP 500 / ZLP630 / ZLP800 Suspended Platforms GONDOLA on sale

1. Max lifting height: 100m;

2. Main models: ZLP500, ZLP630, ZLP800 & ZLP1000;

3. Types: Painted, hot galvanized, aluminum;

4. Voltage: 220v/380V/415V 50/60HZ 3 phass;

5. Couterweight: Cement, cement with steel cover, Iron-casting counterweight.;

6. H.S Code: 8428909090;

7. Certification: CE & ISO;

8. We can also customize for you.

Five main structure:

(1) Platform

(2) Hoist Assembly

(3) Satety Device

(4) Electric System

(5) Suspension Mechanism

Technical Parameters :

Specifications
Type ZLP630 ZLP800 ZLP1000
1.Rated Load 630kg 800kg 1000kg
2.Lifting speed 9.3m/min 8.5m/min 8.3m/min
3.Lifting height 100m 100m 100m
4.Hoist LTD63 LTD80 LTD80sdrive
4.1 Voltage-3Phase 380V(415V/220V) 380V(415V/220V) 380V(415V/220V)
4.2 Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
4.3 Power 1.5kw*2 2kw*2 2.2kw*2
5.Safety Lock LS30 LS30 LS30

6.Electric Control

Panel Components

 Schneider or CHNT Schneider or CHNT Schneider or CHNT
7.Platform Sise (LxWxH) (2+2+2)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m
8.Steel Wire Rope

4pcsx100m

4x31SW+FC D=8.3mm

4pcsx100m

4x31SW+FC D=8.3mm

4pcsx100m

4x31SW+FC D=8.6mm
9.Special Cable (3x2.0+2x1.0mm2)100m (3x2.0+2x1.0mm2 )100m (3x2.0+2x1.0mm2)100m
10.Counter Weight 1000kg 1000kg 1000kg
Qty of 20" Container 10 sets 10 sets 10 sets

ZLP500 Temporary Suspended Platform Gondola For Building Cleaning

1. Platform(basket): Hot galvanized steel / Aluminum

ZLP500 Temporary Suspended Platform Gondola For Building Cleaning

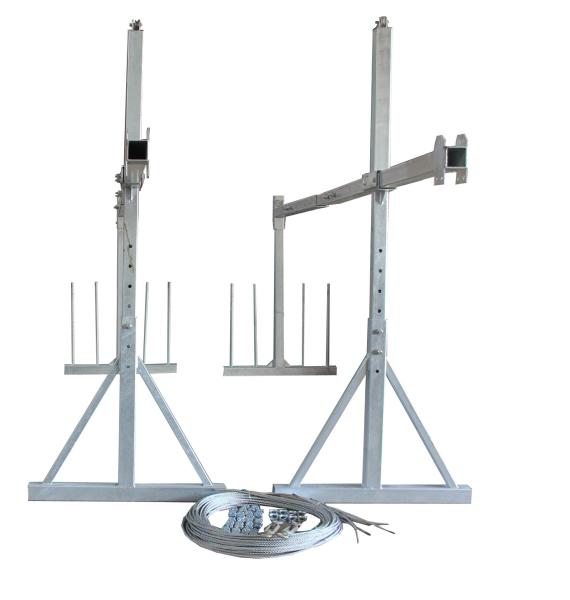

2. Suspension mechanism --Hot galvanized steel
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning

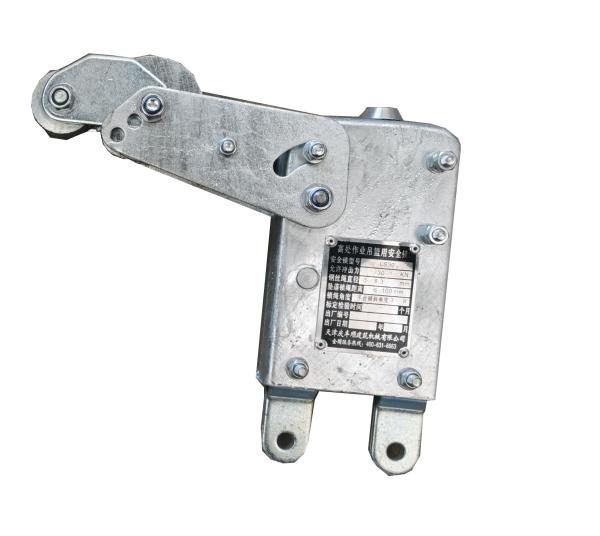

3. Safety lock --Anti -proofing
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning
4. Control Panel ---CHINT
ZLP500 Temporary Suspended Platform Gondola For Building Cleaning

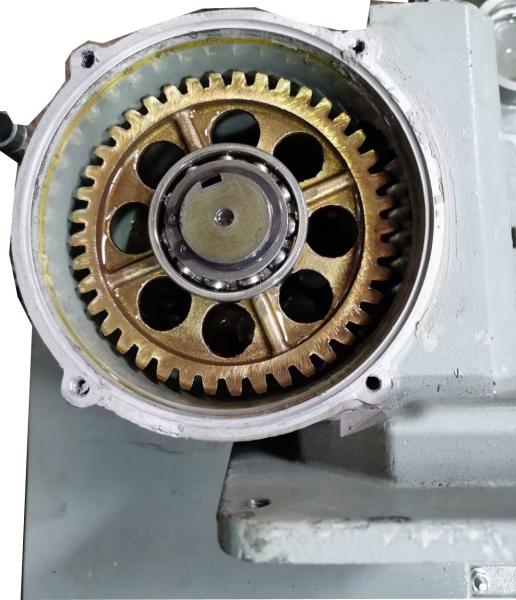

5. Motor --LTD63 220V / 380V 415V 50/60HZ 3PHASES

ZLP500 Temporary Suspended Platform Gondola For Building CleaningZLP500 Temporary Suspended Platform Gondola For Building Cleaning

ZLP500 Temporary Suspended Platform Gondola For Building Cleaning

01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before

shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted

02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material cost

03.What logistics ways can we work for shipment?

1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by

container.

2.For neiberhood countries of China, such as Russia, we can ship product by train or road.

3.For light spare parts in urgent demand, we can ship them by international service such as

DHL,TNT, UPS or FEDEX.
