Specifications
Model Number :
ZLP800
Certification :
CE ISO
Place of Origin :
HEBEI, CHINA
MOQ :
1 SET
Price :
2400 ~ 2800 USD / SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200SETS / MONTH
Delivery Time :
5~10 DAYS AFTER RECEIVING THE PAYMENT
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Material :
Hot galvanized steel / Painted steel / Aluminum
Size :
3*2500*690*1180mm
Lifting speed :
~8.5m/min
Hoist :
LTD80
Voltage :
220v/415v/380v 50/60HZ 3 PHASE
Power :
2.0kw
Control panel :
CHNT
Wire rope :
8.3mm 4*100m or as your requirement
Counter weight :
Cement / iron cast
Warranty :
12 months , some main spare parts are 5 years
Usage :
window / building facade cleaning
Description

ZLP800 2.0KW LTD80 SUSPENDED WORKING PLATFORM / ALUMINUM SUSPENDED HANGING SCAFFOLDIING

Suspended platform are designed and constructed in modular form,so it could be mounted in any size from 2m to 8m.

Welding of support structure is made of quality steel profiles

Connection of individual parts of structure is made with nuts and bolts in each unit.

Each platform is equipped with wheels for easy movement around construction sites.

1. Parts contains:

1. Platform(basket): hot galvanized steel / Aluminum

2. Suspension Mechanism: Hot galvanized steel

3. Electric hoists:LTD63

4. Safety Lock: LS30

5. Electric control box: Along with hoists

6. Steel wire rope: 8.3mm

7. Electric cable: 3*2.5+2*1.5

8. Counterweights: Cement & Iron counterweight

9. Spare parts

2. Usage of Suspended platform

(1) Facade maintenance,paiting and cleaning of high building

(2) Window cleaning and installation

(3) Construction inspection and maintenance of big-size tanks,chimneys ,dams, bridges

(4) Maintenance , cleaning ,painting of big ship

3. Working Principle:


The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:

4. Technical Parameters :

Specifications
Type ZLP630 ZLP800 ZLP1000
1. Rated Load 630kg 800kg 1000kg
2. Lifting speed 9.3m/min 8.5m/min 8.3m/min
3. Lifting height 100m 100m 100m
4. Hoist LTD63 LTD80 LTD80sdrive
4.1 Voltage-3Phase 380V(415V/220V) 380V(415V/220V) 380V(415V/220V)
4.2 Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
4.3 Power 1.5kw*2 2kw*2 2.2kw*2
5. Safety Lock LS30 LS30 LS30

6.Electric Control

Panel Components

 Schneider or CHNT Schneider or CHNT Schneider or CHNT
7.Platform Sise (LxWxH) (2+2+2)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m
8.Steel Wire Rope

4pcsx100m

4x31SW+FC D=8.3mm

4pcsx100m

4x31SW+FC D=8.3mm

4pcsx100m

4x31SW+FC D=8.6mm
9.Special Cable (3x2.0+2x1.0mm2)100m (3x2.0+2x1.0mm2 )100m (3x2.0+2x1.0mm2)100m
10.Counter Weight 1000kg 1000kg 1000kg
Qty of 20" Container 10 sets 10 sets 10 sets

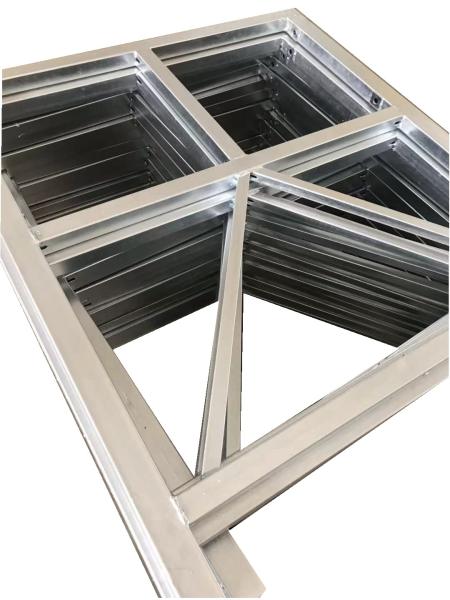

1. Platform(basket): Hot galvanized steel / Aluminum

Features for Aluminum platform:

No need painting or galvanizing on surface;

Oxygen membrane on the surface, rust-proof, anti-corrosion.

Light weight, 65% lighter than the same model of steel one.

Load effiency increased, anti-subversion ability improved.

Easy to install& operate.

Good look, with bright silver gray color

Hot dip galvanized steel platform.

With good outlook;

Anti corrosion.

Lower price than Aluminum platform.

LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

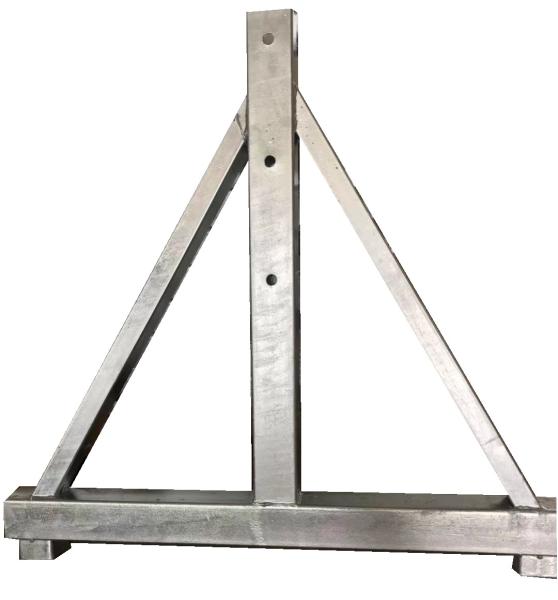

2. Suspension mechanism --Hot galvanized steel
LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

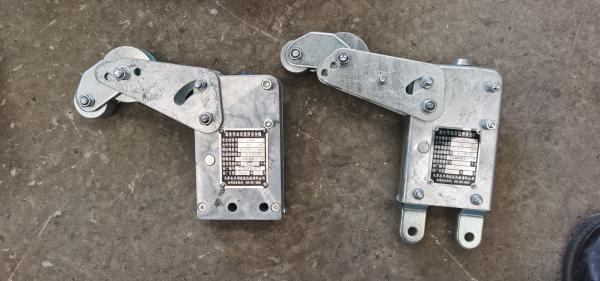

3. Safety lock --Anti -proofing
LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

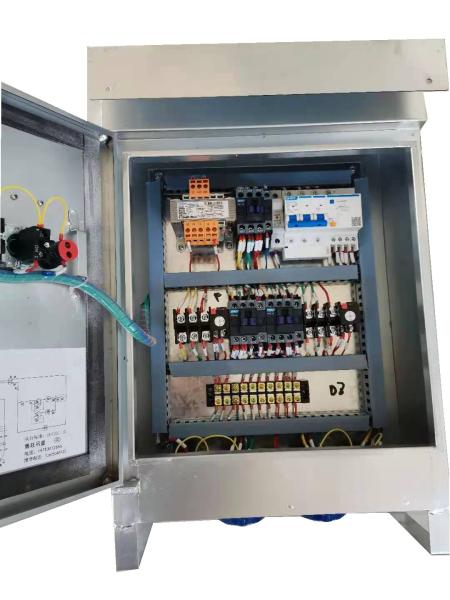

4. Control Panel ---CHNT
LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing
5. Motor --LTD63/LTD80 220V / 380V 415V 50/60HZ 3PHASES

LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging ScaffoldiingLTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

LTD80 Temporary Suspended Platform , Aluminum Suspended Hanging Scaffoldiing

01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before

shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted

02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material cost

03.What logistics ways can we work for shipment?

1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by

container.

2.For neiberhood countries of China, such as Russia, we can ship product by train or road.

3.For light spare parts in urgent demand, we can ship them by international service such as

DHL,TNT, UPS or FEDEX.
