200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
200kg Construction Material Shifting Lift 360 Degrees
Specifications
Price :
200-400 usd /set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
20-30 working days, which will be adjusted according to different products and inventory
MOQ :
1 SET
Packaging Details :
small mobile cranes for sale packing:Carton box, wooden case
Applicable Industries: :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Application: :
Building Material Shops, Construction works
Rated Loading Capacity :
100-3000kg
Max. Lifting Height: :
12-100m
Span: :
1.1-1.8m
Rated power: :
600-2200W
Rated voltage: :
220v 380v 110v 240v Customized
Color: :
yellow or customized
Delivery Time: :
varied based on quantity
Suitable floor: :
5-7floor
Lifting speed: :
7-24m/min
Warranty: :
1 year
Rotation: :
360 degree
Description

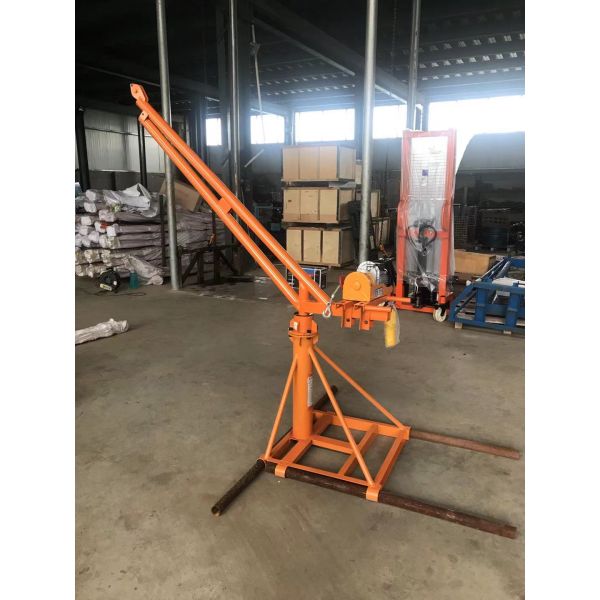

Construction equipment small size mini lifting crane 200kg /500kg for sale

1. This type can be rotated for 360 degrees which can solve the problems of the rope twisting and difficulty in rotation during the work.

2. The winching part changes the disadvantage of the short lifespan of the turbine reducer to make the electromagnetic braking motor much more powerful.

3. The electricity type is designed with the clutch device to win the fast speed when falling down to improve the efficiency.

4. The most important is that the rotation part is installed with the automatic positioning device which will be much more safe.

Product characteristics:

1. Alloy steel bracket, seamless welding, durable

2. Motor, full copper motor, fast heat dissipation and long life.

3. Flange, thickened flange plate, solid and reliable.

4. Rotating shaft, double bearing 360 degree rotation.

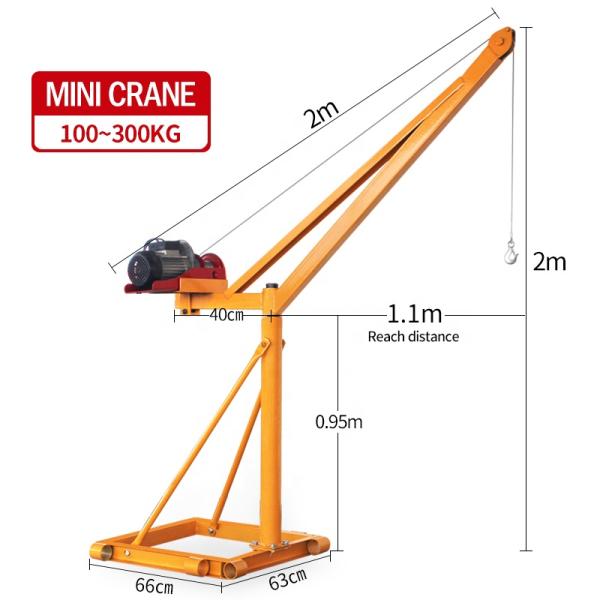

Loading(KG) /200300/400
Speed(M/M) 10-20
Level Distance(M) 1-1.45
Steel Wire Rope Φ (MM) 5.0/6.0/7.7
Steel Wire Rope Length(M) 25 or Customized
Power(KW) 1.35/1.8/1.85/2.3
Voltage(V) 220 or Customized
Lifting Height(M) 1.6-2.2
