ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
ISO ZLP630 Suspended Platform For Painting Swing Stage
Specifications
Model Number :
ZLP630/ZLP800
Certification :
CE ISO
Place of Origin :
HEBEI, CHINA
MOQ :
1 SET
Price :
2400 ~ 2800 USD / SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200SETS / MONTH
Delivery Time :
5~10 DAYS AFTER RECEIVING THE PAYMENT
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Material :
Hot galvanized steel / Aluminum
Size :
3*2000/2500*690*1180mm
Lifting speed :
~9.5m/min / ~8.5m/min / ~8.3m/min
Hoist :
LTD63 / LTD80 / LTD80S
Voltage :
220v/415v/380v 50/60HZ 3 PHASE
Power :
1.5KW/1.8KW/2.0KW
Control panel :
CHNT
Wire rope :
8.3mm / 8.6mm / 9.1mm 4*100m
Counter weight :
Cement / iron cast
Warranty :
12 months , some main spare parts are 5 years
Usage :
Building facade maintenance
Description

CE ISO approved ZLP630 / ZLP 800 suspended building platform / Construction Gondola / swing stage

Parts contains:

1. Platform(basket): Steel (painted or hot galvanized) or Aluminum Alloy

2. Suspension Mechanism: Steel (painted or hot galvanized)

3. Electric hoists: LTD63/LTD80

4. Safety Lock: LS30

5. Electric control box: Along with hoists

6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm

7. Electric cable: 3*2.5+2*1.5

8. Counterweights: Cement , cement with steel cover & Iron counterweight

9. Spare parts

Detailed Introduction :

1. Max lifting height: 100m;

2. Main models: ZLP500, ZLP630, ZLP800 & ZLP1000;

3. Types: Painted, hot galvanized, aluminum;

4. Voltage: 220v/380V/415V 50/60HZ 3 phass;

5. Couterweight: Cement, cement with steel cover, Iron-casting counterweight.;

6. H.S Code: 8428909090;

7. Certification: CE & ISO;

8. We can also customize for you.

Technical Parameters :

Specifications
Type ZLP630 ZLP800 ZLP1000
Rated Load 630kg 800kg 1000kg
Lifting speed 9.3m/min 8.5m/min 8.3m/min
Lifting height 100m 100m 100m
Hoist LTD63 LTD80 LTD80sdrive
Voltage-3Phase 380V(415V/220V) 380V(415V/220V) 380V(415V/220V)
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Power 1.5kw*2 2kw*2 2.2kw*2
Safety Lock LS30 LS30 LS30

Electric Control

Panel Components

 Schneider or CHNT Schneider or CHNT Schneider or CHNT
Platform Sise (LxWxH) (2+2+2)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m
Steel Wire Rope

4pcsx100m

4x31SW+FC D=8.3mm

4pcsx100m

4x31SW+FC D=8.3mm

4pcsx100m

4x31SW+FC D=8.6mm
Special Cable (3x2.0+2x1.0mm2)100m (3x2.0+2x1.0mm2 )100m (3x2.0+2x1.0mm2)100m
Counter Weight 1000kg 1000kg 1000kg
Qty of 20" Container 10 sets 10 sets 10 sets

ISO ZLP630 Suspended Platform For Painting Swing Stage

ISO ZLP630 Suspended Platform For Painting Swing Stage

1. Platform(basket): Hot galvanized steel / Aluminum

ISO ZLP630 Suspended Platform For Painting Swing Stage
2. Suspension mechanism --Hot galvanized steel
ISO ZLP630 Suspended Platform For Painting Swing Stage
3. Safety lock --Anti -proofing
ISO ZLP630 Suspended Platform For Painting Swing Stage

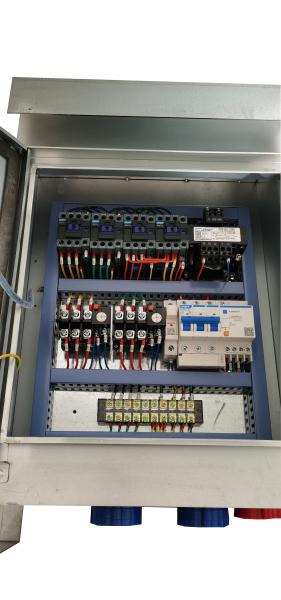

4. Control Panel ---CHINT
ISO ZLP630 Suspended Platform For Painting Swing Stage
5. Motor --LTD63 220V / 380V 415V 50/60HZ 3PHASES

ISO ZLP630 Suspended Platform For Painting Swing StageISO ZLP630 Suspended Platform For Painting Swing StageISO ZLP630 Suspended Platform For Painting Swing Stage

ISO ZLP630 Suspended Platform For Painting Swing Stage

01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before

shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted

02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material cost

03.What logistics ways can we work for shipment?

1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by

container.

2.For neiberhood countries of China, such as Russia, we can ship product by train or road.

3.For light spare parts in urgent demand, we can ship them by international service such as

DHL,TNT, UPS or FEDEX.
