Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
Specifications
Model Number :
ZLP630/ZLP800
Certification :
CE ISO
Place of Origin :
HEBEI, CHINA
MOQ :
1 SET
Price :
2400 ~ 2800 USD / SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200SETS / MONTH
Delivery Time :
5~10 DAYS AFTER RECEIVING THE PAYMENT
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Material :
Aluminum/ Hot galvanized steel
Size :
3*2000/2500*690*1180mm
Lifting speed :
~9.5m/min ~8.5m/min
Hoist :
LTD63 / LTD80
Voltage :
220v/415v/380v 50/60HZ 3 PHASE
Power :
1.5KW / 2.0KW
Control panel :
CHNT
Wire rope :
8.3mm / 8.6mm / 9.1mm 4*100m
Counter weight :
Cement / iron cast
Warranty :
12 months , some main spare parts are 5 years
Description

6M/7.5M ZLP630/ZLP800 PAINTED STEEL BUILDING MAINTENANCE GONDOLA / SWING STAGE

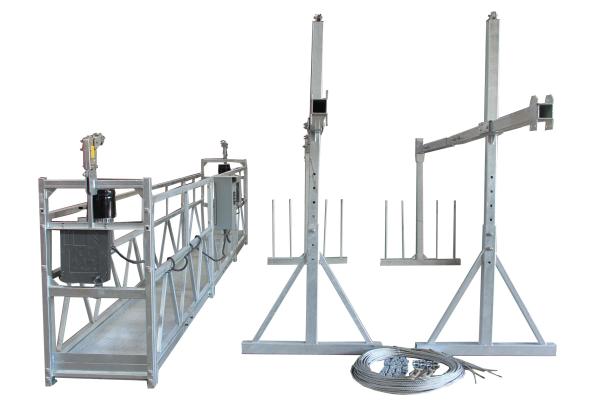

Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

Usage of Suspended platform
(1) Facade maintenance,paiting and cleaning of high building
(2) Window cleaning and installation
(3) Construction inspection and maintenance of big-size tanks,chimneys ,dams, bridges
(4) Maintenance , cleaning ,painting of big ship

Technical Parameters :

ZLP630 ZLP800 ZLP1000
Rated Load 630kg 800kg 1000kg
Platform Sise (LxWxH) (2+2+2)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m (2.5+2.5+2.5)x0.69x1.18m
Lifting speed 9.3m/min 8.5m/min 8.3m/min
Working height 100m Max 200m 100m Max 200m 100m Max 200m
Motor
LTD63 LTD80 LTD80sdrive
Voltage-3Phase 380V(415V/220V) 380V(415V/220V) 380V(415V/220V)
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Power 1.5kw*2 1.8kw*2 2.2kw*2

Safety Lock

LS30

Control Panel Components

Schneider or CHNTS
Steel Wire Rope

4pcsx100m

8.3mm

4pcsx100m

8.6mm

4pcsx100m

9.1mm

Cable

(3x2.0+2x1.0mm2)100m

Counter Weight

1000kg

Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

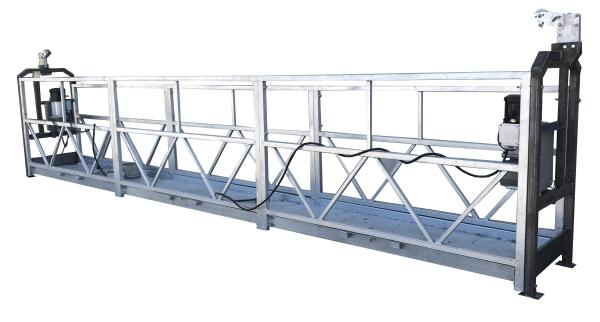

1. Platform(basket): Hot galvanized steel / Aluminum

Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist
2. Suspension mechanism --Hot galvanized steel
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

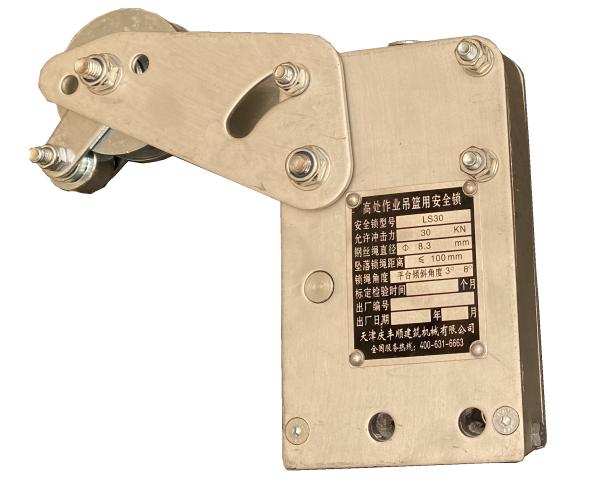

3. Safety lock --Anti -proofing
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

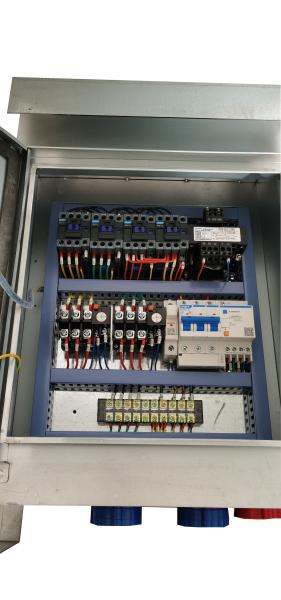

4. Control Panel ---CHINT
Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

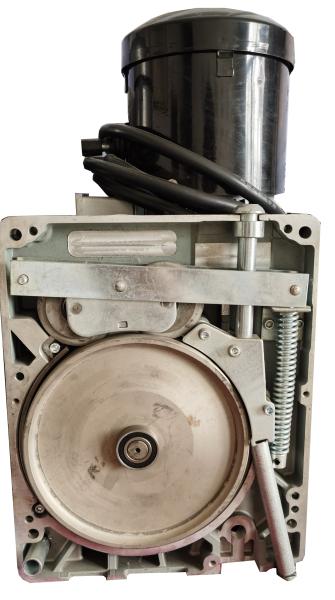

5. Motor --LTD63 220V / 380V 415V 50/60HZ 3PHASES

Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform HoistPainted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

Painted Steel Swing Stage Equipment , 6m Rope Suspended Platform Hoist

01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before

shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted

02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material cost

03.What logistics ways can we work for shipment?

1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by

container.

2.For neiberhood countries of China, such as Russia, we can ship product by train or road.

3.For light spare parts in urgent demand, we can ship them by international service such as

DHL,TNT, UPS or FEDEX.
