6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform
6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform
6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform
6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform
Specifications
Model Number :
ZLP630
Certification :
CE ISO
Place of Origin :
HEBEI ,CHINA
MOQ :
1 SET
Price :
1700~2500 USD/SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 SETS / MONTH
Delivery Time :
5`10 working days, which will be adjusted according to different products and inventory
Packaging Details :
LCL : GOODS WILL BE PACKAGED BY PLYWOOD BOX ; CONTAINER DELIVERY : GOODS WILL BE PACKAGED BY PALLET
Material :
Painted steel / Hot galvanized steel / Aluminum Alloy
Size of suspended platform :
2m ~ 10m
Working Height :
100m Max :200m
Power :
1.5Kw
Voltage :
220v /380v/ 415v 50/60hz
Loading Capacity :
630kg
Warranty :
12 months
Description

ZLP630 6m 630kg Painting Suspended Working Platform

Introduction of Suspended plaform / Gondola

Suspended platform is mainly composed of suspension mechanism system, lifting platform, hoist motors, safety locks, electric control system, working steel wire ropes, safe wire ropes, counter weights, hanging weights and other accessories and connecting parts.
Rated load of the platform is 500 kg to 1000 kg, the working height and voltage can be adjusted to your need, Lifting speed is can be 8.3 m/min to 9.6 m/min. The suspension mechanism system can be adjusted to complicated buildings in different height.

Technical Parameters of Suspended platform / Gondola

The Parameters of ZLP630
Type ZLP630
Rated Load 630kg
Lifting speed 9.3m/min
Lifting height 100m
Hoist LTD63
Voltage-3 Phase 380V(415V/220V) 50HA/60HZ
Power 1.5kwx2
Safety Lock LS30
Electric Control panel Schneider or CHNT
Platform Sise (LxWxH) (2+2+2)x0.69x1.18m

Steel Wire Rope

 4pcs; 100m/pcs D=8.3mm; 4x31SW+FC
Electric Cable (3x2.0+2x1.0) 100m
Counterweight (Optional) Cement, 1000kg

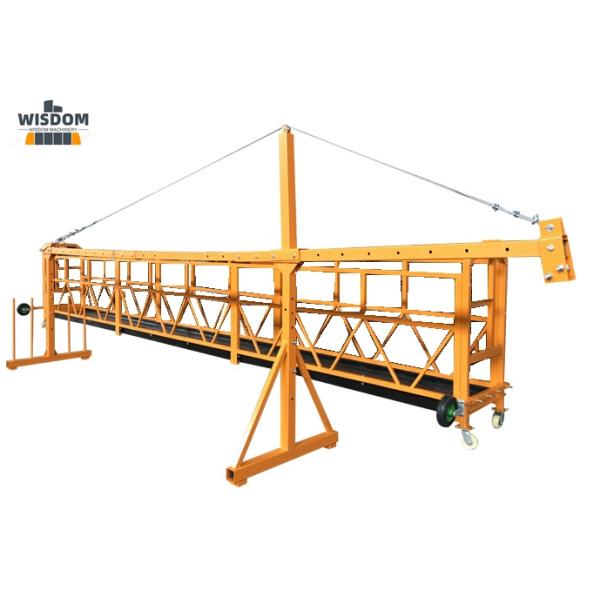

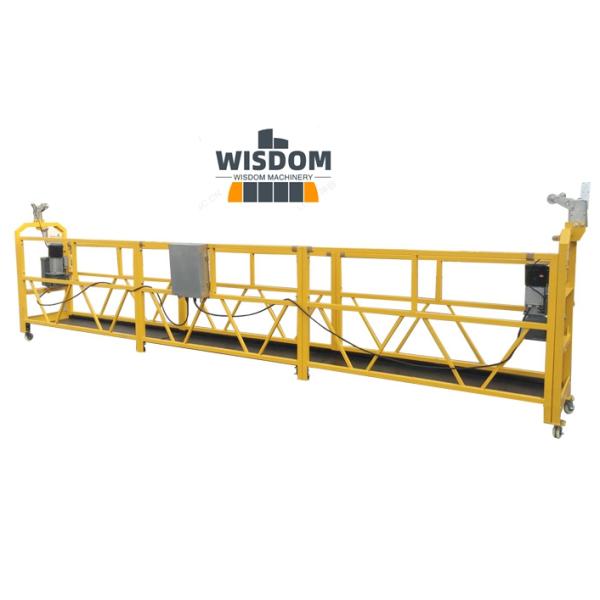

Pictures of Suspended platform / Gondola

6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform

6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform
