Depression Compression Testing Machine / Strength Testing Equipment For Foam
Depression Compression Testing Machine / Strength Testing Equipment For Foam
Depression Compression Testing Machine / Strength Testing Equipment For Foam
Depression Compression Testing Machine / Strength Testing Equipment For Foam
Specifications
Brand Name :
PERFECT
Model Number :
PT-3166
Certification :
ISO9001
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20-25 days after deposit
Packaging Details :
packed in strong wooden case
Capacity :
200KG，2000N
Dimensions :
76×46×160cm(W×D×H)
Weight :
160kg
Max stroke :
1000 mm, not includes fixture
Motor :
AC Servo Motor
Test force resolution :
1/500,000
Test speed :
0.5～500mm/min
Port :
Shenzhen
Description

Depression Strength Testing Equipment for Foam 2KN Compressive Test Machine

Foam Testing Equipment Application :

This 2KN foam test machine is designed for testing porous elastic material compression depression hardness test, such as foam.

Standards: GB/T10807, GB/T 12825, GB/T18942.1, ISO 2439: 1997

Foam Test Equipment Theorem: Test the strength of the object under specified conditions needed to form the required degree of depression.Put the test sample between upper and lower compression plate, then make upper plate go down with regular speed, when upper plate to compress test sample the load cell will get the strength and transfer to signal to send to computer and show compress force value on screen

Foam Test Equipment Parameters:

Tester Name Depression Strength Testing Equipment for Foam 2KN Compressive Test Machine
Model No. PT-3166
Capacity 200kgf, 2KN
Software Professional testing software under Windows2000/XP
Load Accuracy Superior to ±0.5%
Load Resolution 1/500,000
Effective Load Range 0.5~100%F.S
Accuracy of Deformed Value Display Superior to ±0.5%
Test Speed Range 0.5～500mm/min, can be setting
Test Max. Stroke Max. 1000mm, not include gripper
Effective Test Space Front, rear, left, right 400mm
Upper Plate Dia. 200mm, R Ø 1mm
Lower Plate 420mm X 420mm, Ventilation holes diameter 6mm, Spacing 20mm.
Specimen Length 380mm, Thickness 50mm
Unit Switch Including the use of a variety of international unit of measurement.
Stop Mode Upper and lower limited security settings, emergency stop button, program force & extend setting, specimen damaged sensor.
Special Function Can do sustained tension, continuing pressure and fatigue test.
Dimensions 76×44×150cm (W×D×H)
Weight About 160 kg
Motor AC Servo Motor
Power 1PH, AC220V, 50Hz, 10A or assign

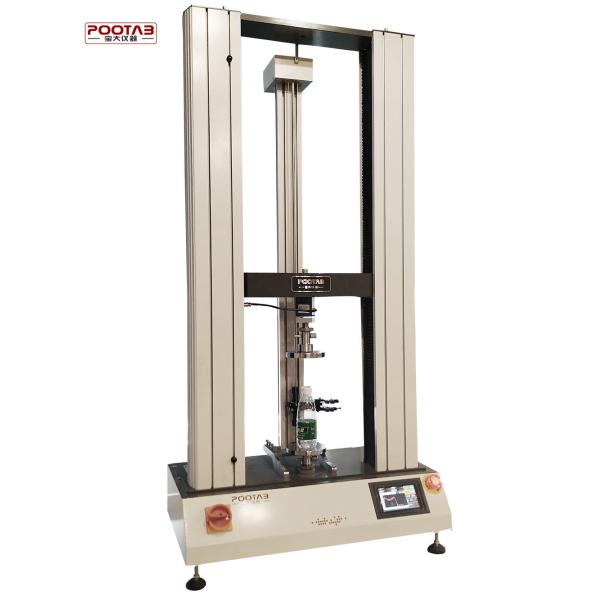

Foam Strength Testing Machine Picture:

Depression Compression Testing Machine / Strength Testing Equipment For Foam
