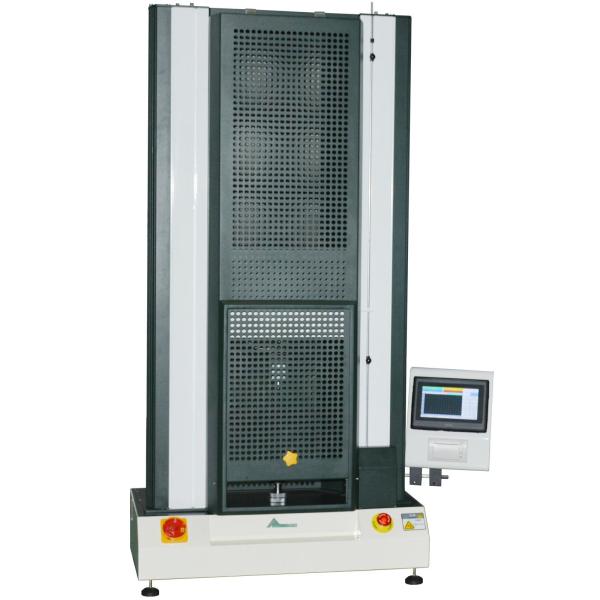

1000kg Wire/ Steel Tensile Testing Machine Electronic Type With LCD Screen
1000kg Wire/ Steel Tensile Testing Machine Electronic Type With LCD Screen
1000kg Wire/ Steel Tensile Testing Machine Electronic Type With LCD Screen
1000kg Wire/ Steel Tensile Testing Machine Electronic Type With LCD Screen
Specifications
Brand Name :
PERFECT
Model Number :
PT-1161
Certification :
ISO9001:2015
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
15-20 work days after deposit
Packaging Details :
Packed in wooden case
Capacity :
5、10、20、50、100、200、500、1000kg
Dimensions :
98×51×160cm(W×D×H)
Weight :
about 170kg
Max Test stroke :
1000mm，include clamp
Power :
1PH，AC220V，50/60Hz，10A or custom
Test force resolution :
1/100,000
Type :
Two Columns, Electronic Type, NO Comouter
Port :
Shipped from Shenzhen, Guangzhou or HK
Description

10KN Electronic Type Tensile Tester LCD Screen Bend Pull Press Testing Machine

Application:

10KN Electronic Testing Machine in the industries of rubber plastic, paper products, printing and packaging, adhesive tape, cases, handbags, textile, pharmaceutical, cosmetic, food, electronic wire, etc.. Can the physical properties of the test all kinds of materials and finished products, semi-finished products, to buy all the different fixture do tensile, compressive strength, to pull, pressure, bending, tear, peel, adhesive force and the shear test.

1000KG Testing Machine Parameters:

Product Name 10KN Electronic Type Tensile Tester LCD Screen Bend Pull Press Testing Machine
Model PT-1161
Capacity selection 5,10,20,50,100,200,500,1000kg choose one
Monitor Power and extended display
Accuracy of measurement Better than±1.0%
Force resolution 1/10,000
Effective range of measurement 1~100%F.S
Deformation display accuracy Better than±1.0%
Test speed range 5～500mm/min,can be arbitrarily set
Test maximum stroke Maximum 1000mm, no fixture
Effective test space About 400mm,After or before ∝
Power unit switch kgf,gf ,N,kN,Ibf
Stress unit switch MPa,kPa,kgf/cm2,Ibf/in2
Deformation unit switch mmm,cm,etc
Stop mode Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Point method Manual and pre - set points (20 points) function in the test process
Standard configuration Standard fixture 1 pay, equipment power supply line 1, CD disc operation manual 1, product certification 1, product warranty card 1
Optional configuration PT-211 two point extension of the fixture, a variety of test fixture
Machine size about 98×51×160cm(W×D×H)
Machine weight about 170kg
Power DC motor
Power Supply 1PH,AC220V,50/60Hz,10A or specified
