200T Compression Testing Machine For Concrete Building Materials
200T Compression Testing Machine For Concrete Building Materials
200T Compression Testing Machine For Concrete Building Materials
200T Compression Testing Machine For Concrete Building Materials
Specifications
Brand Name :
POOTAB
Model Number :
PT-CY2000B
Certification :
ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
250 Sets/Month
Delivery Time :
15 Working Days After Prepayment
Packaging Details :
Wood Case
Item Name :
Concrete Compression Test Machine
Test Force :
200KN~2000KN (10%-100%FS)
Compression Plate Size :
Up Φ260mm、Down Φ300mm
Compression Plate Distance :
300mm
Description

200T Compression Testing Machine For Concrete Building Materials

Use :

This compress testing machine is mainly used for the compressive strength test of building materials such as brick, stone, cement, concrete, etc. It can also be used for the mechanical performance test of other materials.

This machine adopts hydraulic loading, electronic force measurement, and has the functions of load digital display, loading rate display, maximum load retention, overload protection and power failure data retention.

Hydraulic System:
The hydraulic oil in the oil tank drives the high-pressure pump into the oil pipeline through the motor, flows through the return valve and enters the oil cylinder.The force measurement instrument collects and analyzes data through the sensor to display the real-time force value. The tester controls the flow rate through the oil delivery valve to realize the speed of the test force rate.

Force Measurement Control System :
  1. Manually adjust back to the oil valve, concise and flexible operation;
  2. Maximum peak load ;
  3. Loading rate dynamic display .
  4. Test date, number, failure load and compressive strength test report.

Parameters :

Model PT-CY2000B Concrete Compression Test Machine
Max Capacity 2000KN
Test Force Measuring Range 200KN~2000KN (10%-100%FS)
Relative Error Of Test Force Indication Value ≤Indicating Value±1%
Compression Plate Distance 300mm
Piston stroke 50mm
Column Distance 260mm
Compression Plate Size Up Φ260mm,Down Φ300mm
Machine Size 1000*500*1450mm
Motor Capacity 2KW
Electric Power AC, 220V, 50Hz
Weight 850KG

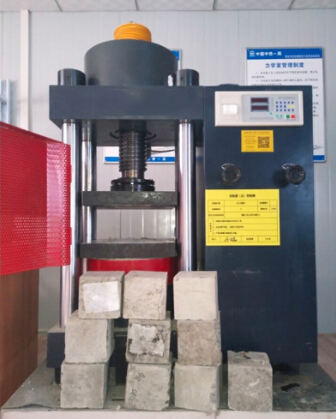

Concrete Compression Tester Pictures :

200T Compression Testing Machine For Concrete Building Materials

200T Compression Testing Machine For Concrete Building Materials
