Edge Compressive Strength Testing Machine For Corrugated Cardboard
Edge Compressive Strength Testing Machine For Corrugated Cardboard
Edge Compressive Strength Testing Machine For Corrugated Cardboard
Edge Compressive Strength Testing Machine For Corrugated Cardboard
Specifications
Brand Name :
POOTAB,PERFECT
Model Number :
PT-8220
Certification :
ISO,CE,SGS
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
7 working days after deposit
Packaging Details :
Wooden Case
Test Items :
ring compressive strength,edge compressive strength,flat compressive strength,adhesive strength
Test Sample :
corrugated cardboard, paperboard,paper tubes,etc
Test Force :
60～2000N(or 60～5000N)
Compress Plates Distance :
about 70mm
Description

Edge Compressive Strength Testing Machine For Corrugated Cardboard JISP8126

Use:this ring compress tester, edge compress tester is for packaging materials such as corrugated cardboard boxes, various paper quality tests are carried out, namely ring pressure (RCT), flat pressure (FCT), edge pressure (ECT), bonding (PAT) and general compression (CMT), etc. 5 This test is a test device that combines multiple functions in one. Due to the needs of transportation, the cartons will be piled up, so the tolerance of the weight load depends on the performance of the cardboard. This machine is equipped with various fixture accessories to test the ring compressive strength of the base paper, the flat/side compressive strength of the cardboard, and the bonding strength, so that the paper manufacturer can control the production cost and improve the product quality.

Follow Standards :
GB/T2679.8,GB/T2679.17, GB/T6546,GB/T6548,ISO3035/3037/7263, CNS2956,JISP8126,TAPPIT472

Edge Compressive Test Machine Parameters :

Model PT-8220 Ring Compression Tester
Load Cell Capacity 60～2000N(or 60～5000N)
Unit N,KN,kgf,Lb(free set)
Measure Accuracy ±1.0%
Resolution 1N
Compress Plate ≥Φ100mm
Parallelism Of Upper and Lower Platens ＜0.05mm
Compress Plates Distance about 70mm
Test Speed 12.5±2.5mm/min
Machine Size about 500×330×560mm(W×D×H)
Machine Weight about 45kg
Power Supply 1PH,AC220V,50/60Hz,5A
Standard Configuration

1 micro printer,

1 vertical press fixture

1 ring compression fixture;

1 flat compression fixture;

1 bonding strength fixture

Refer Pictures:

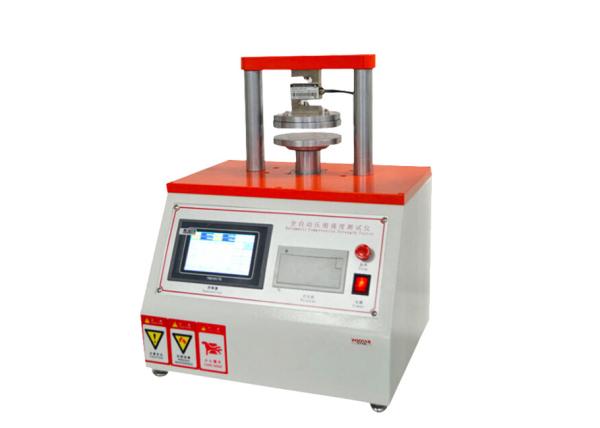

Edge Compressive Strength Testing Machine For Corrugated Cardboard
