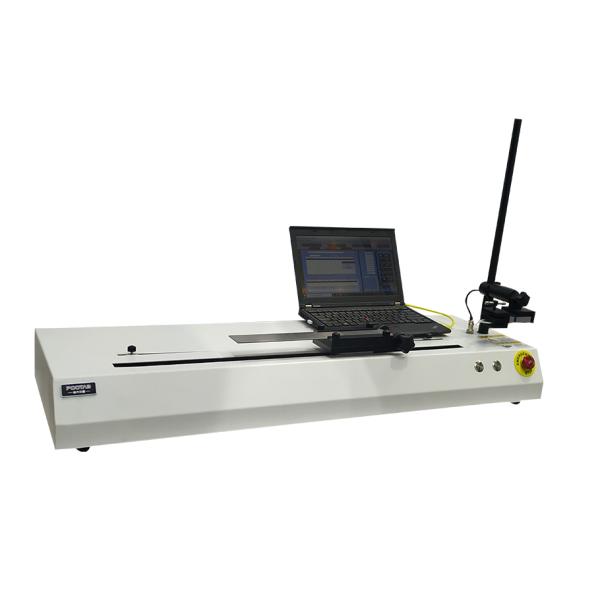

90 Degree Peel Adhesion Test Equipment 10000mm/Minute For Tape And Film
90 Degree Peel Adhesion Test Equipment 10000mm/Minute For Tape And Film
90 Degree Peel Adhesion Test Equipment 10000mm/Minute For Tape And Film
90 Degree Peel Adhesion Test Equipment 10000mm/Minute For Tape And Film
Specifications
Brand Name :
POOTAB & PERFECT
Model Number :
PT-6099
Certification :
ISO,CE,SGS
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
220 Sets per month
Delivery Time :
15 working days after deposit confirmation
Packaging Details :
Plywood Case For Export
Sensor :
10N,20N 50N,100N,200N,500N, any one option
Control Method :
Computerized
Test Angle Adjust :
90°,180° or other angles
Test Speed :
10～10000mm/min
Test Travel :
650mm（or customized）
Specimen Width :
50mm
Description

90° Peel Adhesion Tester 10000MM / Minute Fast Speed For Tape And Film ASTM D3330

Introduction: This high speed stripping test machine is suitable for the tensile strength, peel strength, deformation of plastic films, composite films, adhesives, adhesive ,tapes, medical patches, protective films, release paper, rubber, artificial leather, paper fibers and other products Performance tests such as rate, breaking force, peeling force, opening force, thrust, etc., especially the angle-adjustable test piece fixing plate on the machine, the height and angle of the sensor can be changed according to the needs of users.

Techinical Parameters :

Model Name PT-6099 90° Peel Adhesion Tester 10000MM / Minute Fast Speed For Tape And Film
Force Capacity 10N,20N,50N,100N,200N,500N , any one option
Control Method Computerized with professional software
Force Accuracy Better than ±0.5%
Angle Adjust 90°, 180° or other angle(45°,135°,etc)

Measurement

Range

 0.5~100%F.S
Test Speed

10～10000mm/min

10～15000mm/min (customized)

10～20000mm/min (customized)

10～30000mm/min (customized)
Test Travel 650mm(or customized)
Specimen Width 50mm
Unit Switch kgf,gf ,N,kN,Ibf, MPa,kPa,kgf/cm2,Ibf/in2 ,mm,cm,in
Stop Method Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Standard Configuration Standard fixture 1 set, data line 1 piece, power supply line 1 piece, user manual 1 copy, product certificate 1 copy , 1 product warranty card
Purchase Configuration Business computer , printer , various test grips
Machine Size 106×35×39cm(W×D×H)
Machine Weight About 30kg
Motor AC Servo Motor
Power Supply AC 220V,50/60Hz,10A or as requested

High Speed Peel Machine Features:

1. Angle 90°, 180° and other angle within 180°adjustable;

2. The speed is adjustable from 10mm to 30000mm/min;

Refer Picture:

90 Degree Peel Adhesion Test Equipment 10000mm/Minute For Tape And Film
