Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test
Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test
Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test
Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test
Specifications
Brand Name :
POOTAB
Model Number :
PT-6011-8
Certification :
ISO,CE,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300 sets per month
Delivery Time :
7 working days after deposit
Packaging Details :
Wooden Case
Equipment Name :
Tape Holding Test Machine
Working Temperature :
Room Temperature
Weight :
1kg X 8
Timer :
8 Sets
Stainless Steel Plate :
SUS#304 X 8
Dimension :
About 40×22×71 cm, (W×D×H)
Description

Adhesive Tape Holding Test Machine Multi Station Tape Lasting Tester

Use :

Adhesive Tape Holding Test Machine Multi Station Tape Lasting Tester are mainly divided into three 8 stations, 10 stations, and 20 stations, which are mainly used for pressure-sensitive adhesive tapes, medical patches, self-adhesive labels, protective films and other products for sticking test tests.

Working Principle:

Hang the test board with the sample on the test frame vertically, hang the weight of the specified weight at the lower end, and use the displacement of the sample after a certain period of time, or the time when the sample is completely separated to characterize the glue The ability of the adhesive tape to resist pulling off.

Meet Standards :

GB 4851
ASTM D3654
JIS Z0237

Holding Power / Holding Force :
The ability of the adhesive tape to resist displacement when a weight of a specified weight is hung vertically along the length of the pressure-sensitive adhesive tape pasted on the adherend.
It is expressed by the time when the test piece moves a certain distance or the distance within a certain time.

Adhesive Tape Holding Power Tester Parameters :

Model PT-6011-8 Adhesive Tape Holding Test Machine Multi Station Tape Lasting Tester
Temperature Room Temperature
Test Fixture 8 Sets
Weight 1kg X 8
Timer 8 Sets
Stainless Steel Plate SUS#304 X 8
Connector 8 Pieces

Machine Weight

( no accessories )

 About 15kg
Dimension (W×D×H) About 40×22×71 cm

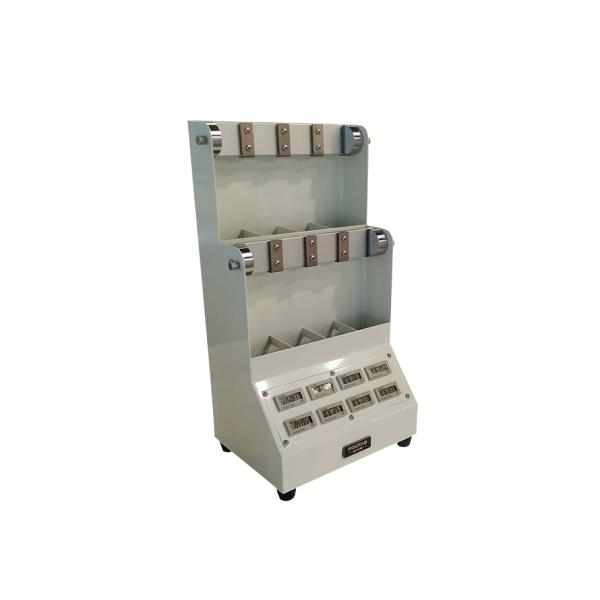

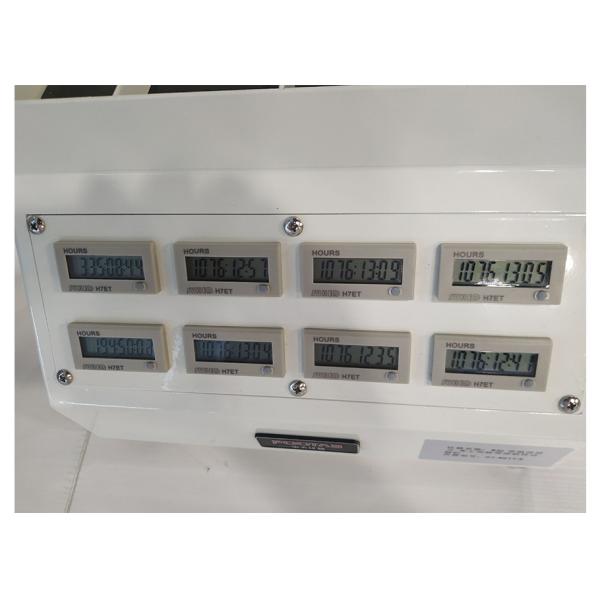

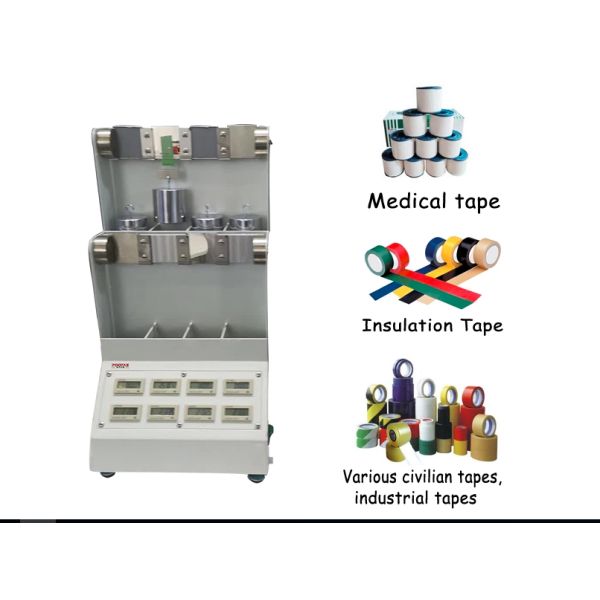

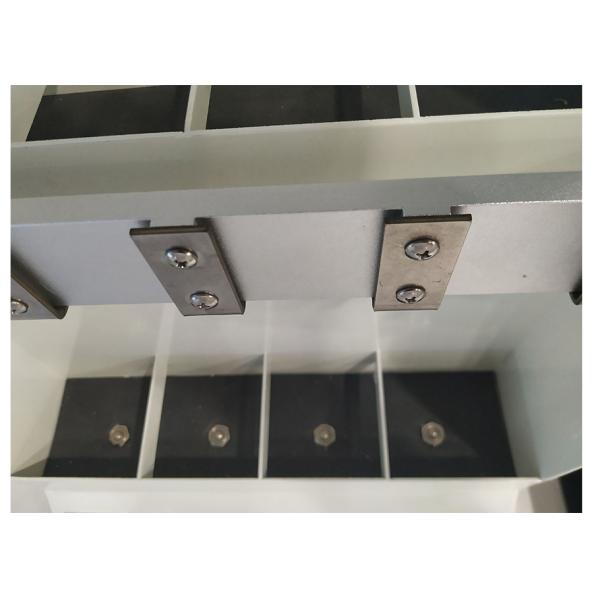

Refer pictures of retentivity tester :

Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test

Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test

Adhesive Tape Holding 8 Timer ASTM Adhesive Peel Test
