Metallic Materials Charpy Pendulum Impact Testing Machine JJG 145

Description :

The metal material pendulum impact tester is used to determine the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load. The difference between the front energy of the pendulum and the remaining energy after the impact is displayed on the dial to obtain the absorbed work of the sample. The maximum impact energy is 300J, and a 150J pendulum is attached. The cross section of the sample used is (10×10) mm. This machine has large impact energy and is suitable for ferrous metals with large impact toughness, such as steel and its alloys.

The main body of the machine is made of cast steel material, which makes it rigid and stable during the whole test process, strong impact resistance, not easy to deform, accurate test results, and long service life. The use of large torque clutch and high-power motor makes it more stable and vibration-free when taking and placing the pendulum.

This machine is developed and produced in accordance with the national standard GB/T 3808-2002 "Inspection of Pendulum Impact Tester", and conducts impact tests on metal materials in accordance with the national standard GB/T 229-2007 "Charpy Pendulum Test Method for Metallic Materials", and Comply with JJG 145-2007 "Verification Regulations of Pendulum Impact Testing Machine". If the structure is changed and related parts are replaced, it can meet the requirements of relevant international standards such as American Standard and European Standard ASTM E23, EN 10045, ISO 148, ISO 83 and so on.

Metal Impact Tester Parameters:

Follow Standards :

1. GB/T 3808 "Inspection of Pendulum Impact Tester"
2. GB/T 229 "Metal Charpy Notch Impact Test Method"
3. JJG 145 "Pendulum Impact Tester"
4. ISO148.3 "Metallic materials – Charpy pendulum impact test–Part 3: Preparation and characterization of Charpy V-notch test pieces for indirect verification of pendulum impact machines "

Main Features:
1.This machine is a digital display semi-automatic impact testing machine, using single-chip control, electric pendulum, impact, single-chip measurement, calculation, digital display results and printing, etc., using PC microcomputer control, electric pendulum, impact, microcomputer measurement, Calculation, digital display of the results on the screen and printing, etc., and can use the remaining energy after breaking the sample to automatically raise the pendulum to prepare for the next sample, simple operation and high work efficiency. Meet the requirements of the metal Charpy impact test method, can calculate and digitally display the material impact absorption energy, impact toughness, pendulum angle and test average value;
2. Metal impact testing machine host is a single support column structure, cantilever hanging pendulum, pendulum body U-shaped;
3.The impact knife is installed and fixed with screws, which is simple and convenient to replace;
4.Sample simply supported beam support;
5.The host is equipped with safety protection pins and equipped with safety protection nets;

Main Configurations :

1. Main machine, 1 set

2. Pendulum: 150J , 300J, 1 piece

3. Inner hexagon wrench( S=12): 1 piece

4. Support adjuster: 1 piece

5. Specimen centralizer: 1 piece

6. Disassembler (for swing): 1 piece

7. Foundation screws: 4 pieces

8. Adjust inclined iron : 4 pieces

9. Protective net ; 1 piece

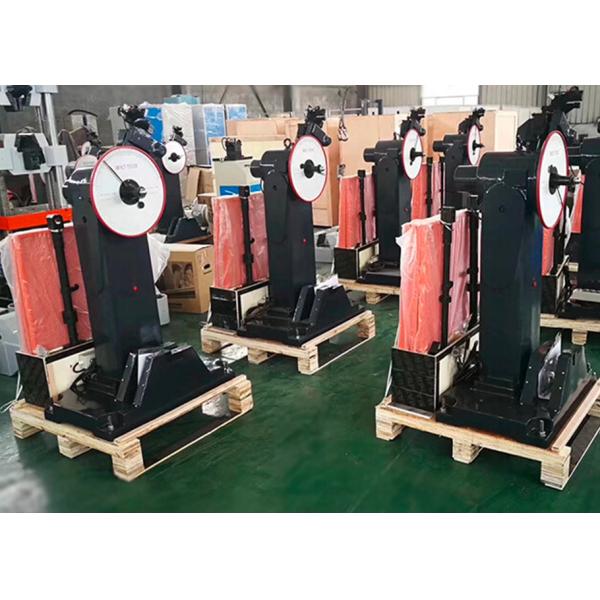

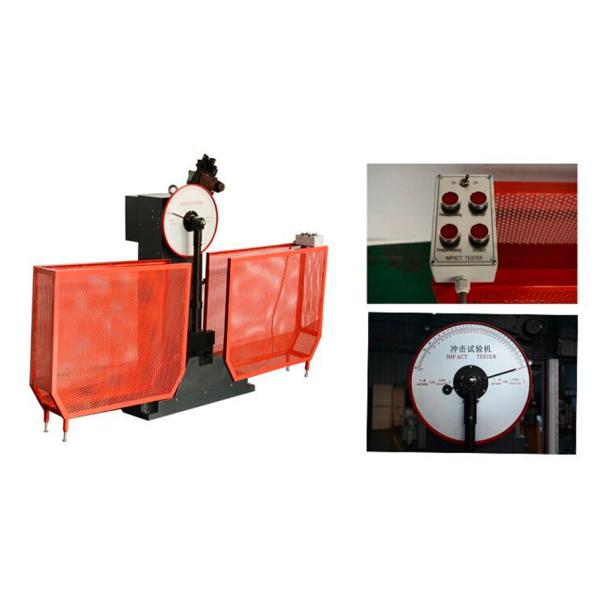

Metal Pendulum Impact Tester Picture :
