2T Tension Digital Compression Testing Machine With Jig
2T Tension Digital Compression Testing Machine With Jig
2T Tension Digital Compression Testing Machine With Jig
2T Tension Digital Compression Testing Machine With Jig
Specifications
Brand Name :
POOTAB
Model Number :
PT-1160
Certification :
ISO,CE,SGS
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 Sets Per Month
Delivery Time :
15 Workdays
Packaging Details :
Plywood Case
Apparatus Name :
Tension Compression Tester
Force Capacity :
2、5、10、20、50、100、200、500、1000、2000kgf
Structure :
Double Column Door Type
Test Speed :
0.5～500mm/min
Description

2T Tension Compression Testing Machine With Jig

Use: This double column tension testing machine is suitable for metal materials, non-metallic materials, wires and cables, rubber plastics, paper products, adhesive tapes, luggage and handbags, textile fibers, ceramics, packaging, leather and other industries. Choose a variety of different clamps/grips/jigs/fixtures to do tensile, compressive, holding tension, holding pressure, bending resistance, tearing, peeling, adhesion, puncture, bursting, shearing, bending resistance and other tests.

Main Parameters:

Model PT-1160 PT-1160B
Force Sensor 2,5,10,20,50,100,200,500,1000,2000kg, one choice
Display force and extension display
Force Accuracy ±0.5%
Force Resolution 1/500,000
Effective Measure Range 1~100%F.S
Deformation Indication Accuracy ±0.5%
Test Speed 0.5～500mm/min
Test Stroke Max 1000mm,exclude grip
Effective Test Space Left right 400mm
Force Unit kgf,gf ,N,kN,Ibf
Stress Unit MPa,kPa,kgf/cm2,Ibf/in2
Deformation Unit mm,cm,in
Stop Mode Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing
Snap Method Manually take points during the test and pre-set take points (20 points) function
Computer Extension

Without

(only digital display)

With

(connected to computer)
Standard Configuration 1 micro printer, 1 power cable, 1 operation manual, 1 product qualifed certificate, 1 warranty card 1 micro printer, 1 operating software, 1 network cable, 1 power cable, 1 operating manual, 1 product qualifed certificate, 1 warranty card
Machine Size About 76×46×160cm(W×D×H)
Machine Weight About 120kg
Motor Servo Motor
Power Supply AC 220V,50/60Hz

Photos Of Tension Testing Machine :

2T Tension Digital Compression Testing Machine With Jig

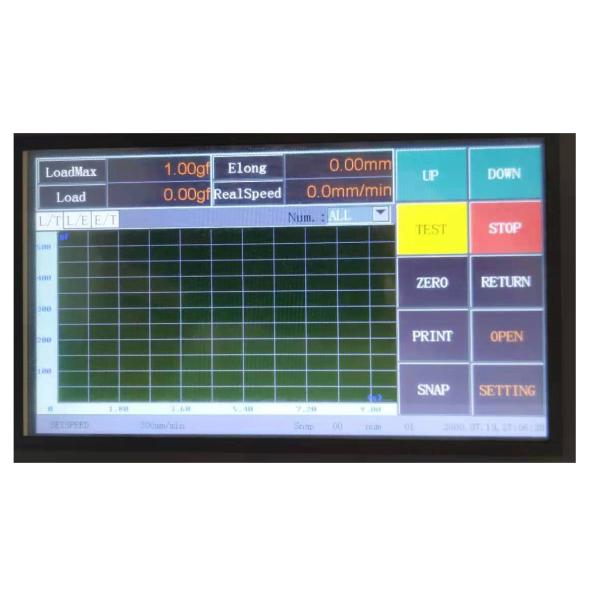

Tension Machine Digital Display Controller :

2T Tension Digital Compression Testing Machine With Jig

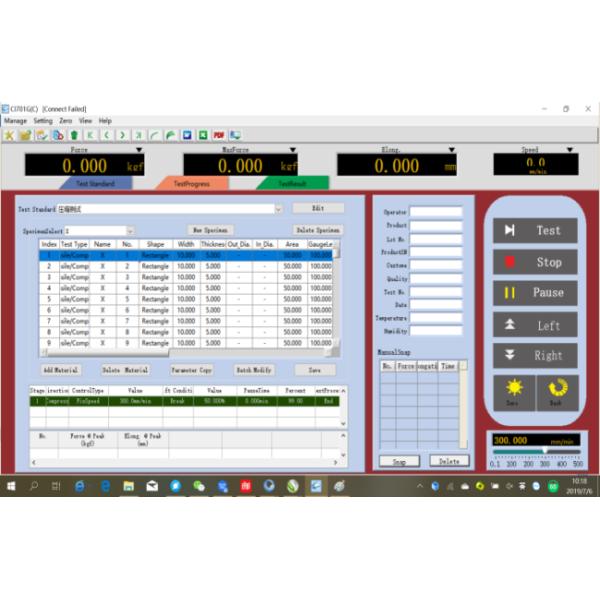

Professional Software :

2T Tension Digital Compression Testing Machine With Jig
