Computerized Automatic Torque Testing Machine Servo Motor Drive
Computerized Automatic Torque Testing Machine Servo Motor Drive
Specifications
Brand Name :
PERFECT
Model Number :
PT-DZ22OG
Certification :
A S T M D, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Packaging Details :
WOODEN CASE
Maximum test torque :
10kgf·cm
Minimum display torque :
1gf·cm
Minimum display angle :
0.1 degree
Maximum test angle :
unlimited
Test speed range :
60—15000 degrees/min
Drive motor :
Servo motor
Description

Minimum Display Torque 1gf·Cm 10kgf·Cm Computerized Automatic Torque Testing Machine

Purpose:
PT-DZ22OG computerized automatic torque testing machine is suitable for related torsion testing of various products. Torque test and torsion life
test of NB shaft, mobile phone (single shaft torque, finished product torsion life test), LCD Monitor foot, rotary switch. It is easy to set and operate with Windows Chinese window screen.
Machine characteristics:
1. The machine is driven by a servo motor to provide high-precision torque testing.
2. The test conditions are set by the computer screen and can be stored.
3. It can directly test the torque value change of each angle (torque-angle curve change graph).
4. At the same time display the torque-angle curve and the torque decay life curve.
5. It can store and print graphics (torque-angle graph and torque attenuation life curve, inspection report).
6. The inspection report is automatically printed, and can be converted to output or output directly through the network.
7. The upper and lower limit of the test can be input, and the machine will stop automatically if it exceeds the specification.
8. The torque value can be set: positive torque, reverse torque, positive torque + reverse torque.
9. Test travel direction: forward forward, forward forward + return. Reverse outward journey, reverse outward journey + return journey.
10. Forward forward travel + reverse travel + forward return travel.
Technical parameters :
The distance between the two columns 240mm
Maximum test torque 10kgf·cm, 50kgf·cm optional
Minimum display torque 1gf·cm, 10gf·cm
Minimum display angle 0.1 degree
Maximum test angle unlimited
Test speed range 60—15000 degrees/min
Drive motor Servo motor
Appearance size W420×D280×H980mm
Machine weight 75kgf
Motor Servo motor
Power AC 220V

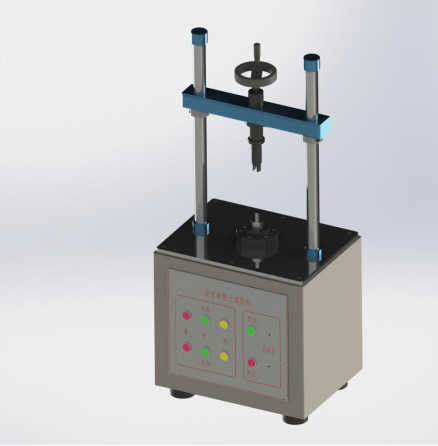

Picture:

Computerized Automatic Torque Testing Machine Servo Motor Drive
