Double 85 Humidity Testing Machine , Constant Temperature Humidity Test Chamber
Double 85 Humidity Testing Machine , Constant Temperature Humidity Test Chamber
Double 85 Humidity Testing Machine , Constant Temperature Humidity Test Chamber
Double 85 Humidity Testing Machine , Constant Temperature Humidity Test Chamber
Specifications
Brand Name :
POOTAB
Model Number :
PT-2091
Certification :
SGS,CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 Sets Per Month
Delivery Time :
15 to 20 working days after deposit
Packaging Details :
Plywood case
Machine :
Double 85 Test Chamber
Humidity :
20%R.H~98%R.H
Temperature :
Low Temp：0℃、-20℃、-40℃、-55℃、-60℃、-70℃（optional） High Temp：+150℃、+100℃、+80℃
Cooling Method :
Air-cooling or water-cooling
Heating Rate :
About 3~4℃/min , no load
Cooling Rate :
About 0.7~1℃/min, no load
Description

Constant Temperature & Humidity Testing Machine Double 85 Test

Use:

The Constant Temperature & Humidity Testing Machine Double 85 Test is used for testing the properties of materials in various environments and testing the heat resistance, cold resistance, dry resistance and moisture resistance of various materials.Suitable for testing quality of electronic, electrical, mobile phone, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Parameters :

Machine Name Constant Temperature & Humidity Testing Machine Double 85 Test
Model

PT-2091A

 PT-2091B PT-2091C PT-2091D
Inner Size

400*500*500mm

(W*H*D)

500*600*500mm

(W*H*D)

500*750*600mm

(W*H*D)

600*850*800mm

(W*H*D)
Outer Size

600*1400*1300mm

(W*H*D)

700*1500*1300mm

(W*H*D)

700*1650*1400mm

(W*H*D)

800*1750*1600mm

(W*H*D)
Test Volume 100L 150L 225L 408L
Temperature

Low Temp:0℃,-20℃,-40℃,-55℃,-60℃,-70℃(optional)

High Temp:+150℃,+100℃,+80℃
Humidity

20%R.H~98%R.H (standard type)

5%R.H~98%R.H ( customized)

10%R.H~98%R.H ( customized)
Temperature Fluctuation ±0.5℃
Temperature Uniformity ≤±2.0℃
Humidity Fluctuation ±2.5%RH
Humidity Uniformity A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH
Heating Rate About 3~4℃/min , no load
Cooling Rate About 0.7~1℃/min, no load

Follow Standards:

GB-2423.1-89 (IEC68-2-1) test A: low temperature test method,

GB-2423.2-89 (IEC68-2-2) test B: high temperature test method,

GJB 360.8-87 (mil-std-202f) high temperature life test,

GBJ150.3(mil-std-810d) high temperature test method,

GJB150.4(mil-std-810d) low temperature test method.

JJF/1101-203 environmental test equipment temperature and humidity calibration specification.

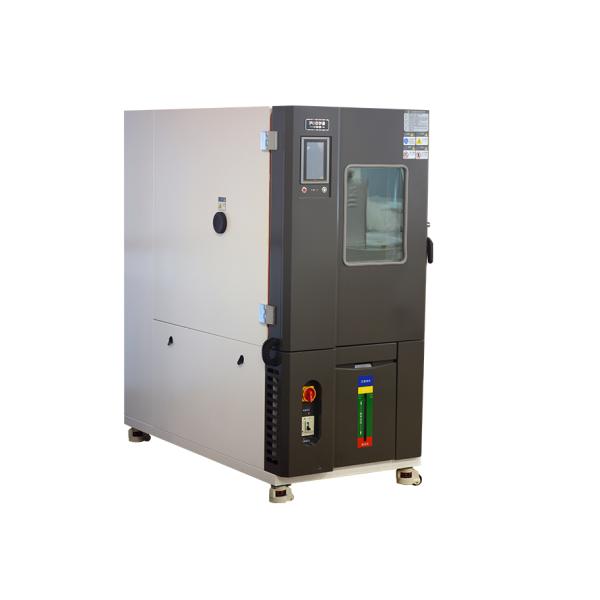

Constant Temperature & Humidity Testing Machine Double 85 Test Picture:

Double 85 Humidity Testing Machine , Constant Temperature Humidity Test Chamber

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
