Specifications
Brand Name :
Yashang
Model Number :
WAT13
Certification :
ISO, CE, TUV, COC, SONCAP etc.
Place of Origin :
China
Price :
negotiable
Payment Terms :
T/T, L/C, West Union, MoneyGram
Supply Ability :
5000~10000sqm per month
Packaging Details :
membrane film, PVC bags, steel cages
MOQ :
negotiable
Delivery Time :
40 work days
Pole Material :
Hard Extruded Aluminum Alloy Profiles
Tarpaulin :
Double PVC-coated Polyester Textile 850gsm fabric
Wall :
Solid Corrugated Sheet Steel Wall
Wind Load :
100km/h
Application :
Industrial Storage Warehouse Structure
Gate :
Roller Shutter Rain Canopy
Description

Solid Corrugated Sheet Walls Outdoor Warehouse Tents Marquee ISO CE Certification

The large 45m wide span aluminum frame storage warehouse tent is custom-made for postal services. As the economy reform deepens, the national postal service department also tries to upgrade their facilities. And the movable and reusable aluminum structure warehouse tent well satisfies their demand. Such an economical temporary warehouse tent take a short time and few ground process treatment to suit their emergency storage needs.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 45m x 35m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 45m Polyester textile fabric cover (top and wall)
Side Height: 4m Galvanized steel (connecting parts)
Top Height: 11.5m Tent Configurations: Aluminum framework
Bay Distance: 5m Fabric roof cover
Longest Part: 10.8m Fabric wall with transparent fabric windows
Roof Pitch: 18° Energy-saving lighting system
Main Profile: 300 x 120 x 5mm Decorative lining system
Gable Post Profile: 166 x 88 x 3mm/203x112x4m Glass door with canopy
Purlin Profile: 80 x 80 x 2mm Tent Packaging: Membrane film for long aluminum parts
Hang Tube Profile: 100 x 80 x 2mm PVC bags for fabric parts
Snow Load: 0.15kN/m² Steel cages for steel parts
Wind Load: 0.5kN/m² Tent Fixing Solution: Expansion screws for concrete ground (standard)
Tent Gross Weight: 3849kgs Steel peg nails for soft grass/sand land (optional)
Tent Total Volume: 12cbm Load Plate for undamagable ground (optional)
Setup Time: 8 people 1 to 2 days Installation Support: Installation instructional manual & video
Tent HS code: 6306220090 On-site installation guide
Tent Lifespan: Aluminum part ≥ 25~30 years Factory installation training
PVC fabri ≥ 5~8years Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders

The white fabric used for the outdoor metal structure warehouse tent temporary storage is 850gsm double pvc-coated polyester textile, which is UV resistant, waterproof, and flame retardant according to a stringent internatonal standard.

Solid Corrugated Sheet Walls Outdoor Warehouse Tents Marquee ISO CE Certification

The ultra large clear span aluminum structure warehouse marquee has no obstructive upright column and pillar inside. The spacious interior tent for storage can be 100% fully utilized.

The white marquee warehouse structure with corrugated sheet steel wall comes with a series of tent waterproof solutions, such as rain canopy and water retaining slope at entrances, water retaining walls along the bottom of sidewalls, and so on.

Solid Corrugated Sheet Walls Outdoor Warehouse Tents Marquee ISO CE Certification

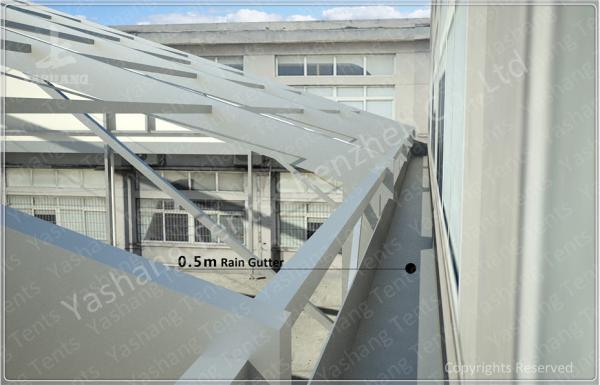

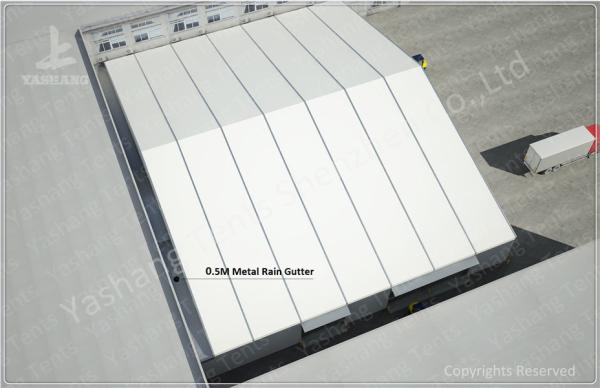

The outdoor white aluminum and pvc warehouse tent for temporary storage is built adjacent to the existing traditional building. The 0.5m wide solid aluminum rain gutter is used in this tent project, durable with a longer service life than fabric rain gutter.

Tent packaging can be custom-made to meet your specific requirements. If you would like to know more about our export packaging solutions for aluminum frame tents, please feel free to contact with us now...
