Specifications
Brand Name :
Yashang
Model Number :
WAT21
Certification :
ISO, CE, TUV, COC, SONCAP etc.
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, West Union, MoneyGram
Supply Ability :
5000~10000sqm per month
Packaging Details :
membrane film, PVC bags, steel cages
Delivery Time :
45 working days
Frame :
6061/T6 Hard Extruded Aluminum Alloy
Cover :
850gsm UV Resistant PVC Fabric
Connector :
Hot Dipped Galvanized Steel
Wall :
White pvc fabric wall
Tent Size :
40 x 100M
Application :
Warehouse and storage
Description

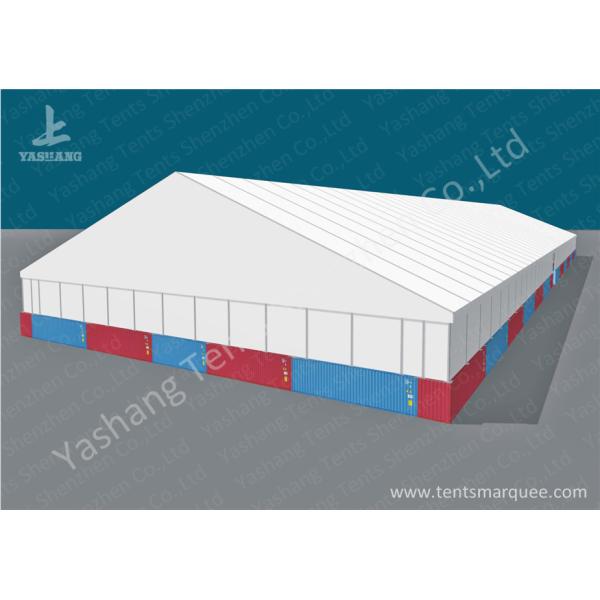

40M Large Square Industrial Warehouse Tent / temporary tent structures

The aluminum alloy frame tent structure is a temporary building for the outdoor parties, weddings, exhibitions, ceremonies and industrial warehouses. The temporary tent structure is made of anodized aluminum alloy and high quality PVC fabric cover. The aluminum alloy is high pressed and extruded, which will make sure the tent stable and reliable. The aluminum alloy profile and the PVC cover make the tent structure fixable and portable.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 40m x 100m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 40m Polyester textile fabric cover (top and wall)
Side Height: 4m Galvanized steel (connecting parts)
Top Height: 10.4m Tent Configurations: Aluminum framework
Bay Distance: 5m Fabric roof cover
Longest Part: 11.6m Transparent glass wall
Roof Pitch: 18° Glass door with canopy
Main Profile: 300 x 120 x 5mm Decorative lining system
Gable Post Profile: 203 x 112 x 4mm/166x88x3mm Energy-saving lighting system
Purlin Profile: 80 x 80 x 2mm Tent Packaging: Membrane film for long aluminum parts
Hang Tube Profile: 100 x 80 x 2mm PVC bags for fabric parts
Snow Load: 0.15kN/m² Steel cages for steel parts
Wind Load: 0.5kN/m² Tent Fixing Solution: Expansion screws for concrete ground (standard)
Tent Gross Weight: TBC Steel peg nails for soft grass/sand land (optional)
Tent Total Volume: TBC Load Plate for undamagable ground (optional)
Setup Time: 8 people 5 to 6 days Installation Support: Installation instructional manual & video
Tent HS code: 6306220090 On-site installation guide
Tent Lifespan: Aluminum part ≥ 25~30 years Factory installation training
PVC fabri ≥ 5~8years Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders

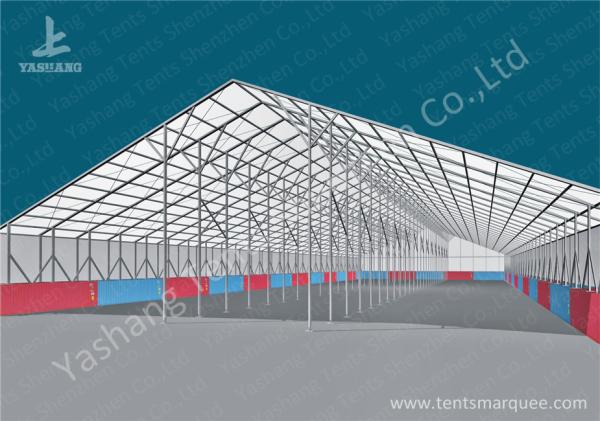

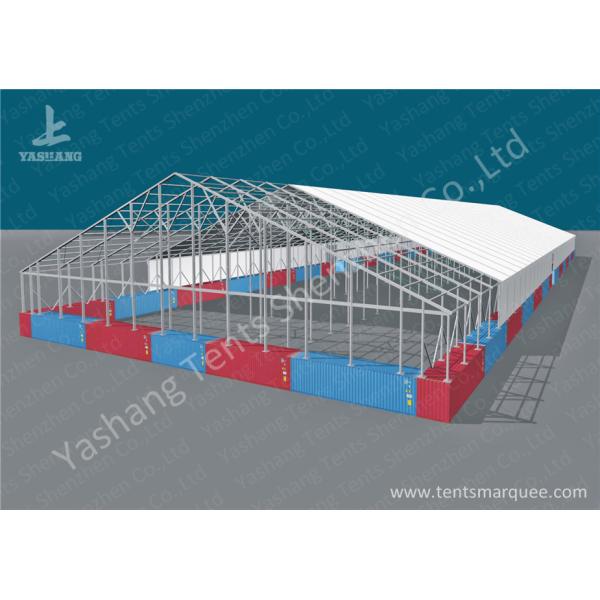

This 40m wide tent structure is designed for the foxconn workshop. The aluminum alloy main profile is 300x120x5mm which is so large that it can guarantee the large-span tent safe and stable. The gable side post is 203x112x4mm and the gable center is 166x88x3mm. The material is of good quality to support this large-span tent structure.
40M Large Square Industrial Warehouse Tent / temporary tent structures

There are three fixation solutions for the aluminum alloy tent on the different grounds. First, the expansion bolts are for the aluminum tent fixed on the flat ground that can be damaged. Second, the weight load plates are for the marble ground that cannot be damaged. Third, the steel peg nails are for the tent fixed on the soft ground like grassland.

40M Large Square Industrial Warehouse Tent / temporary tent structures
Yashang Tents has a history of 12 years in designing and manufacturing aluminum frame tent structures. We have exported so many aluminum alloy tents all over the world. You can contact with us to know more professional tent information.
